Canon EOS 50 E - AE Accuracy Adjustment

Part 3: Repair Information

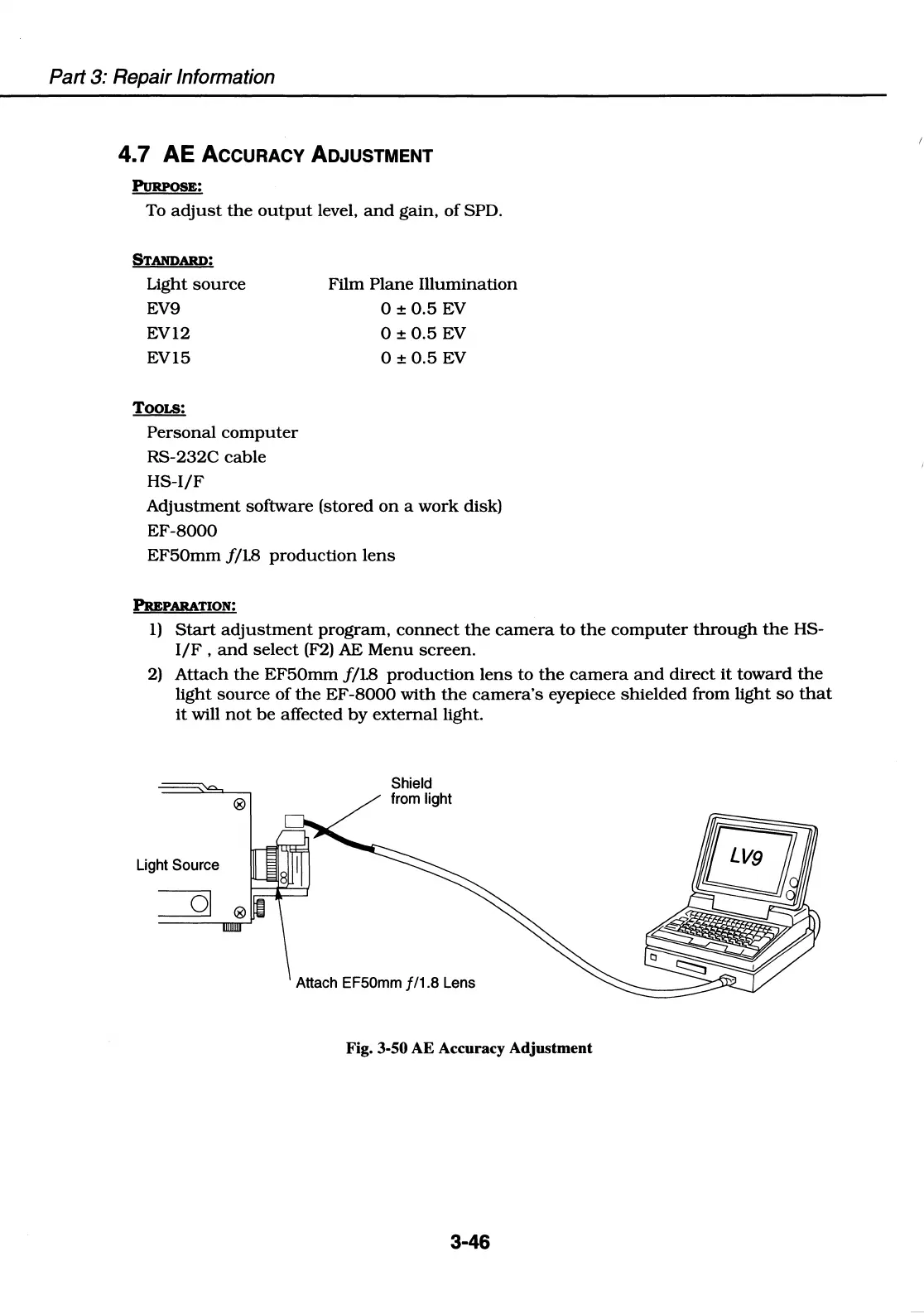

4. 7 AE ACCURACY ADJUSTMENT
PuRPosE:
To adjust the output level, and gain, of SPD.
STANDARD:
Light source
EV9
EV12
EV15
TOOLS:
Personal computer
RS-232C cable
HS-1/F
Film Plane Illumination
0 ± 0.5 EV
0 ±0.5 EV
0 ± 0.5 EV
Adjustment software (stored on a work disk)
EF-8000
EF50mm f/18 production lens
PREPARATION:
1) Start adjustment program, connect the camera to the computer through the HS-
1/F , and select (F2) AE Menu screen.
2) Attach the EF50mm f/18 production lens to the camera and direct it toward the
light source of the EF-8000 with the camera's eyepiece shielded from light so that
it will not be affected by external light.
Light Source
Shield
from light
Attach EF50mm //1.8 Lens
Fig. 3-50 AE Accuracy Adjustment
3-46
