Canon EOS 50 E - AF Sensor Dust Check

Part 3: Repair Information
4.11 AF SENSOR DUST CHECK
To check the BASIS data output which can show if the sensor is dirty.
TOOLS:
Personal computer
RS-232C cable
HS-1/F
Adjustment software (stored on a work disk)
EF-8000
PREPARATION:
Set the camera at the light source without a lens attached to the camera and the
brightness of the light source set to LV12. (Be sure to shield the eyepiece from exter-
nal light.)
Light
Source
01
0
Shield
from light

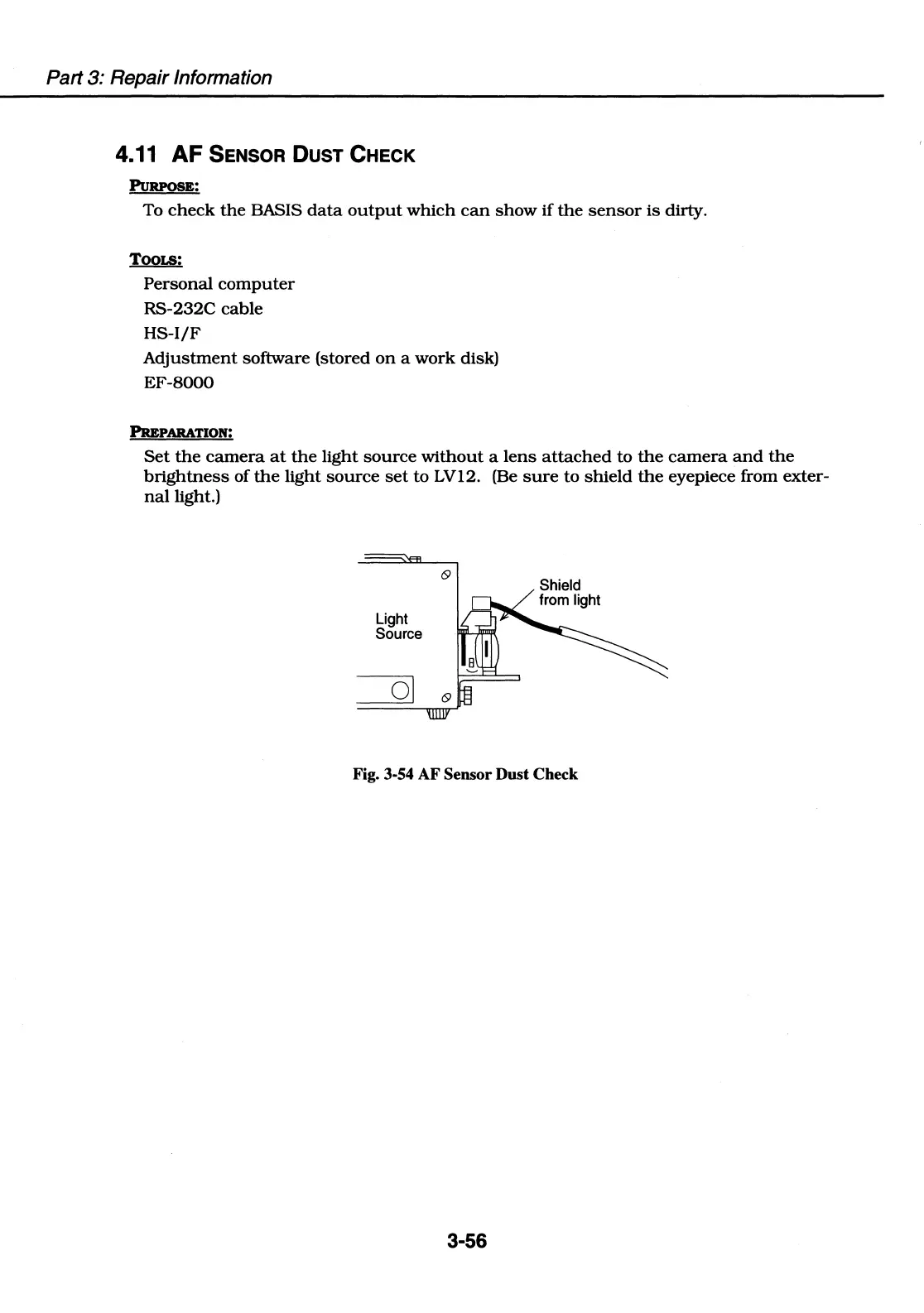

Fig. 3-54 AF Sensor Dust Check
3-56
