Part 3: Repair Information

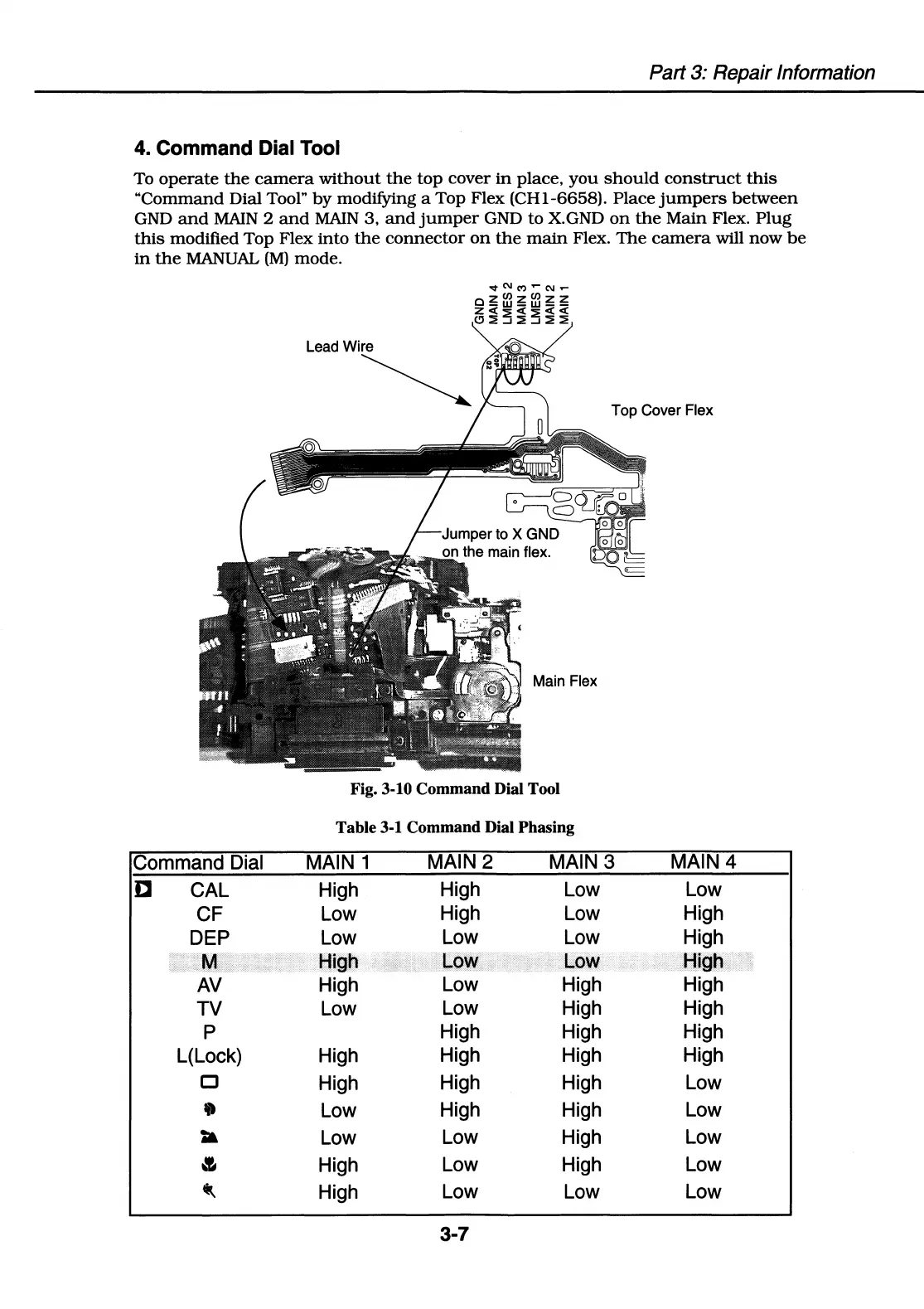

4. Command Dial Tool
To operate the camera without the top cover in place, you should construct this
"Command Dial Tool" by modifying a Top Flex (CHl-6658). Place jumpers between
GND and MAIN 2 and MAIN 3, and jumper GND to X.GND on the Main Flex. Plug
this modified Top Flex into the connector on the main Flex. The camera will now be
in the MANUAL (M) mode.
Top Cover Flex
Fig. 3-10 Command Dial Tool
Table 3-1 Command Dial Phasing
Command Dial
MAIN 1
MAIN2 MAIN3
MAIN4
ll CAL
High
High Low Low
CF
Low
High Low High
DEP
Low
Low
Low
High
M High
Low Low
High
AV
High
Low
High High
TV
Low
Low High High
p
High High High
L(Lock) High
High
High
High
D
High
High
High
Low
•
Low
High High Low
tll
Low
Low High Low
"'
High
Low
High
Low
~
High
Low Low Low
3-7
