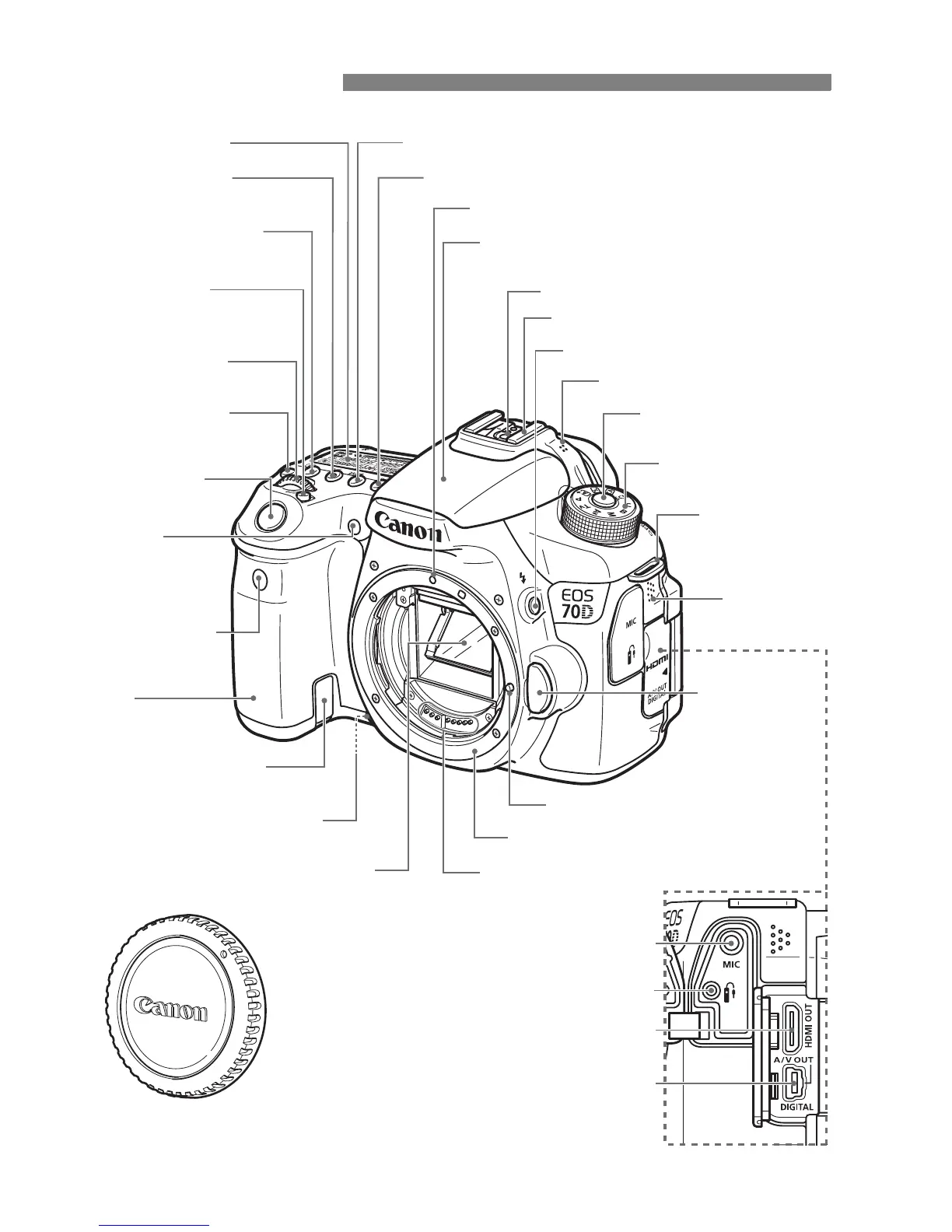

Nomenclature
Speaker
(p.145)
Body cap (p.36)
<F> Remote control terminal
<D>
HDMI mini OUT terminal
<q/C>
Audio/video OUT/Digital terminal
(p.152)
<Y> External microphone IN terminal
Lens lock pin
Lens mount
Contacts (p.15)
Mirror
Depth-of-field preview button
DC coupler cord hole
Grip
(Battery
compartment)
Red-eye
reduction/
Self-timer lamp
(p.96)
Remote control
sensor
Shutter button
(p.41)
<6> Main Dial
(p.42)
<B> AF area
selection mode button
(p.92)
<U> LCD panel
illumination button
(p.45)
<q> Metering mode
selection button
<i>
ISO speed
setting button (p.100)
<R> Drive mode selection button (p.95)
<f> AF mode selection button (p.88)
LCD panel (p.18)
EF lens mount index (p.36)
Built-in flash/AF-assist beam
(p.117)
Flash sync contacts
Hot shoe
Microphone
Mode Dial lock-release
button (p.42)
Mode Dial (p.20)
Strap mount
(p.23)
<D> Flash button (p.117)
Lens release
button (p.37)
