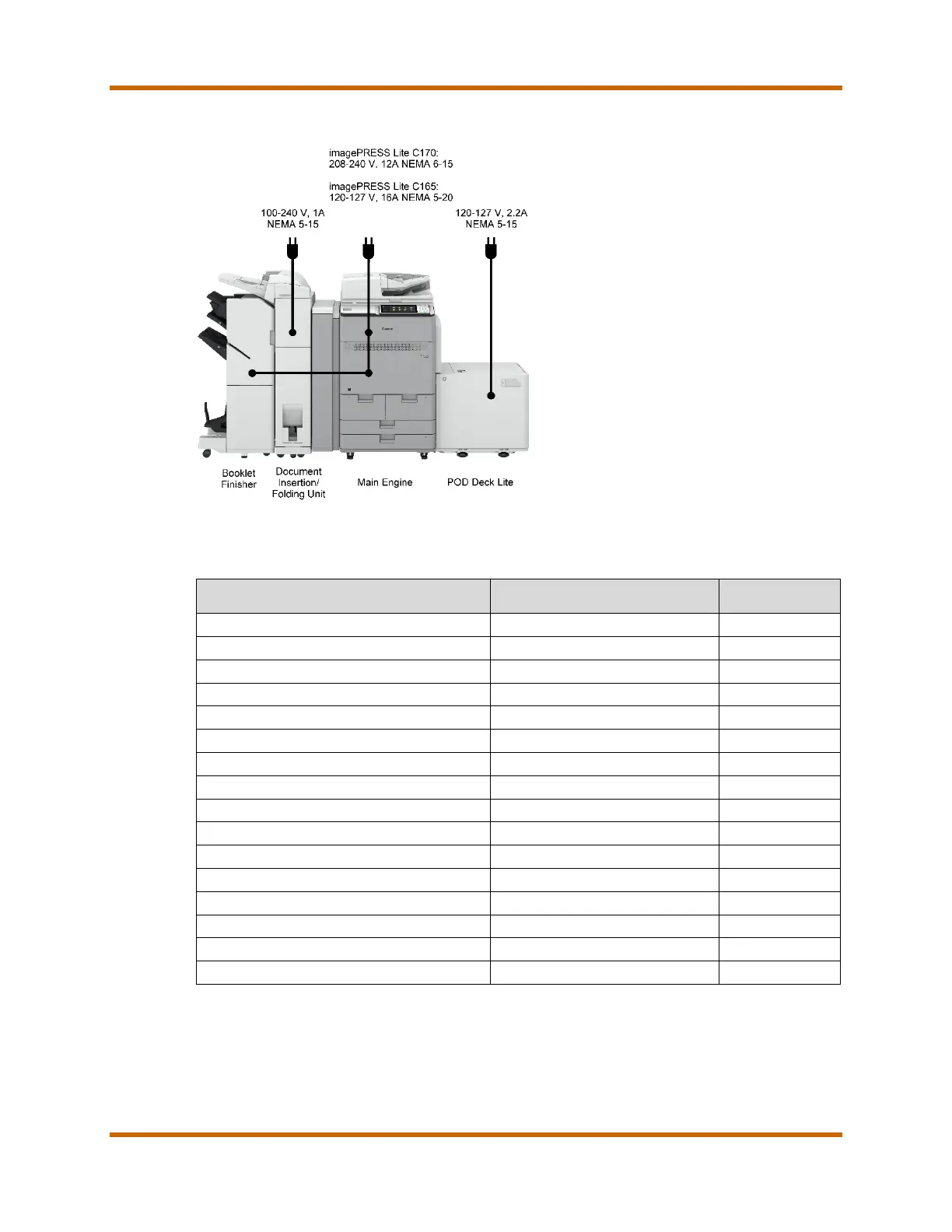

Figure 3 – Power and Plug Requirements (Finisher-AC1 Configuration)
Table 20 – Power and Plug Requirements for Main Unit and Accessories
Product Name Power Supply
Power Supply
Specifications
imagePRESS Lite C170 208-240 V AC 60 Hz, 12 A NEMA 6-15
imagePRESS Lite C165 120-127 V AC 60 Hz, 16 A NEMA 5-20
POD Deck Lite-C1 120-127 V AC 60 Hz, 2.2 A NEMA 5-15
Paper Deck Unit-E1 From the main unit -
Staple Finisher-W1 PRO 120-240 V AC 50/60 Hz, 8 A NEMA 5-15
Booklet Finisher-W1 PRO 120-240 V AC 50/60 Hz, 8 A NEMA 5-15
Document Insertion Unit-N1
100-240 V AC 50/60 Hz, 1.0 A
Paper Folding Unit-J1 From the finisher -
Booklet Trimmer-F1 From the finisher -
Puncher Unit-BS1 From the finisher -
Puncher Unit-BT1 From the finisher -
Multi Function Professional Puncher-B1 115 V AC 60 Hz, 3.8 A NEMA 5-15
Staple Finisher-AC1 From the main unit -
Booklet Finisher-AC1 From the main unit -
Document Insertion / Folding Unit-K1 100-240 V AC 50/60 Hz, 1.0 A NEMA 5-15
2/3 Hole Puncher Unit-A1 From the main unit -
To Next Page
