LASER CLASS 730i/720i/710 Chapter 1: General Description
1-7
Scanning range
Item A4 Letter Legal B4
Effective 8.19"±0.004" 8.43"±0.004" 8.43"±0.004" 10.00"±0.004"
scanning width (208 ±0.1 mm) (214 ±0.1 mm) (214 ±0.1 mm) (254 ±0.1 mm)
Effective 11.54"±0.16" 10.84"±0.16" 13.84"±0.16" 14.17"±0.16"
scanning length (293 ±4.0 mm) (275.4±4.0 mm) (351.6±4.0 mm) (360.0±4.0 mm)
(Fine, Superfine)
Effective 11.54"±0.22" 10.84"±0.22" 13.84"±0.22" 14.17"±0.22"
scanning length (293 ±5.5 mm) (275.4 ±5.5 mm) (351.6 ±5.5 mm) (360.0 ±5.5 mm)
(Standard)
Left margin 0.04" ±0.12" 0.04" ±0.12" 0.04" ±0.12" 0.06" ±0.12"
(1.0 ±3.0 mm) (1.0 ±3.0 mm) (1.0 ±3.0 mm) (1.5 ±3.0 mm)
Right margin 0.04" ±0.14" 0.04" ±0.14" 0.04" ±0.14" 0.06" ±0.14"
(1.0 ±3.5 mm) (1.0 ±3.5 mm) (1.0±3.5 mm) (1.5±3.5 mm)
Top margin 0.08" ±0.08" 0.08" ±0.08" 0.08" ±0.08" 0.08" ±0.08"
(2.0 ±2.0 mm) (2.0 ±2.0 mm) (2.0 ±2.0 mm) (2.0 ±2.0 mm)
Bottom margin 0.08" ±0.08" 0.08" ±0.08" 0.08" ±0.08" 0.08" ±0.08"
(Fine, Superfine) (2.0 ±2.0 mm) (2.0 ±2.0 mm) (2.0 ±2.0 mm) (2.0 ±2.0 mm)
Bottom margin 0.08" ±0.14" 0.08" ±0.14" 0.08" ±0.14" 0.08" ±0.14"
(Standard) (2.0 ±3.5 mm) (2.0 ±3.5 mm) (2.0 ±3.5 mm) (2.0 ±3.5 mm)
Units are inches with mm shown in parentheses.

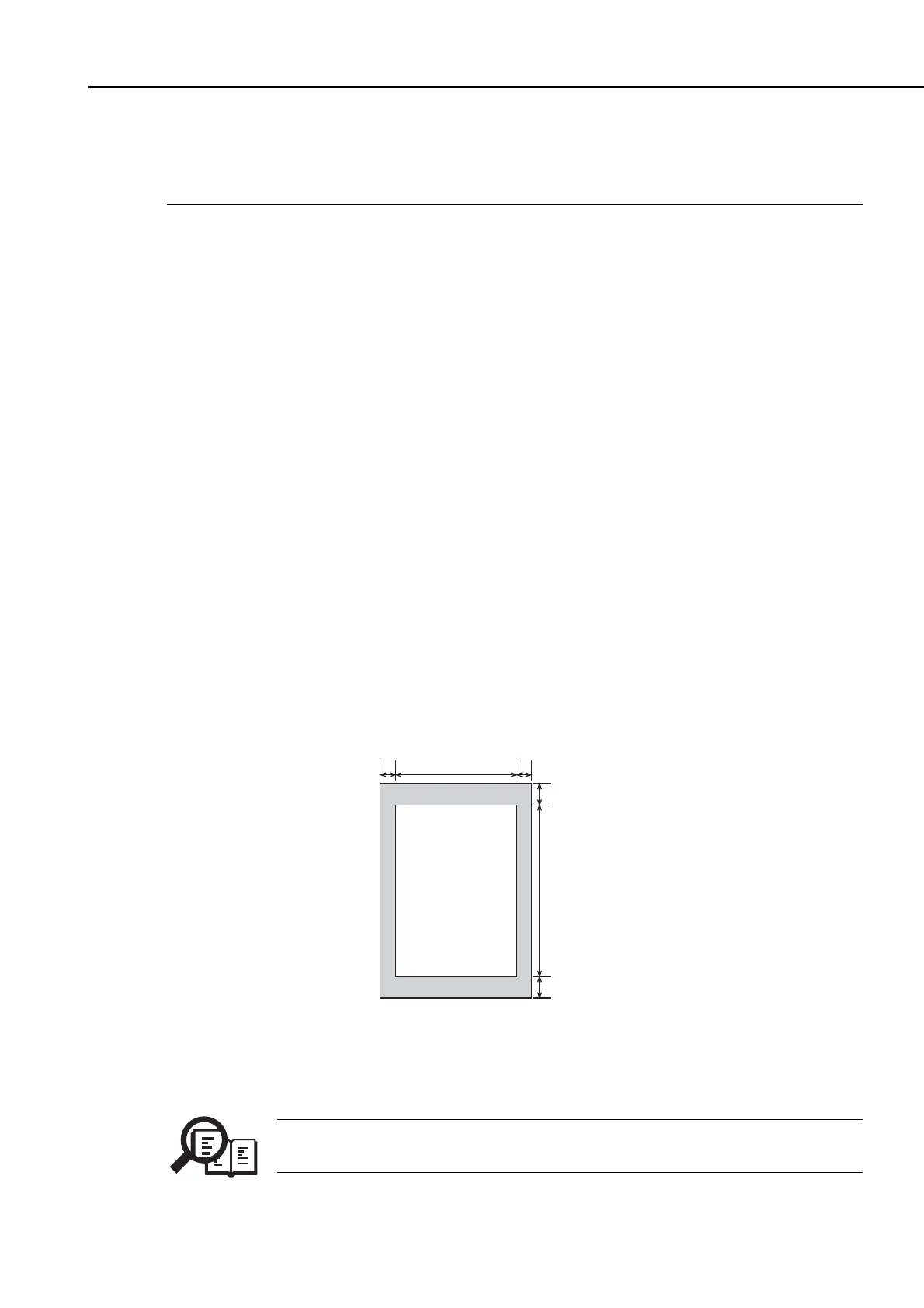

Figure 1-1 Scanning Range
Document scanning width “A4/LTR” is set in service data #1SSSW SW 06,
bit 4.
SCANNING RANGE
SCANNING
DROP OUT RANGE
Right marginLeft margin
Top margin
Bottom margin
Effective scanning width
Effective scanning length
Document leading edge
Document trailing edge
NOTE
