LASER CLASS 730i/720i/710 Chapter 2: Technical Reference
2-10
3. PAPER SUPPLY SECTION
The paper supply section is designed to separate the recording sheets stacked on the Cassette or
MP tray one by one for forwarding to the printer unit.

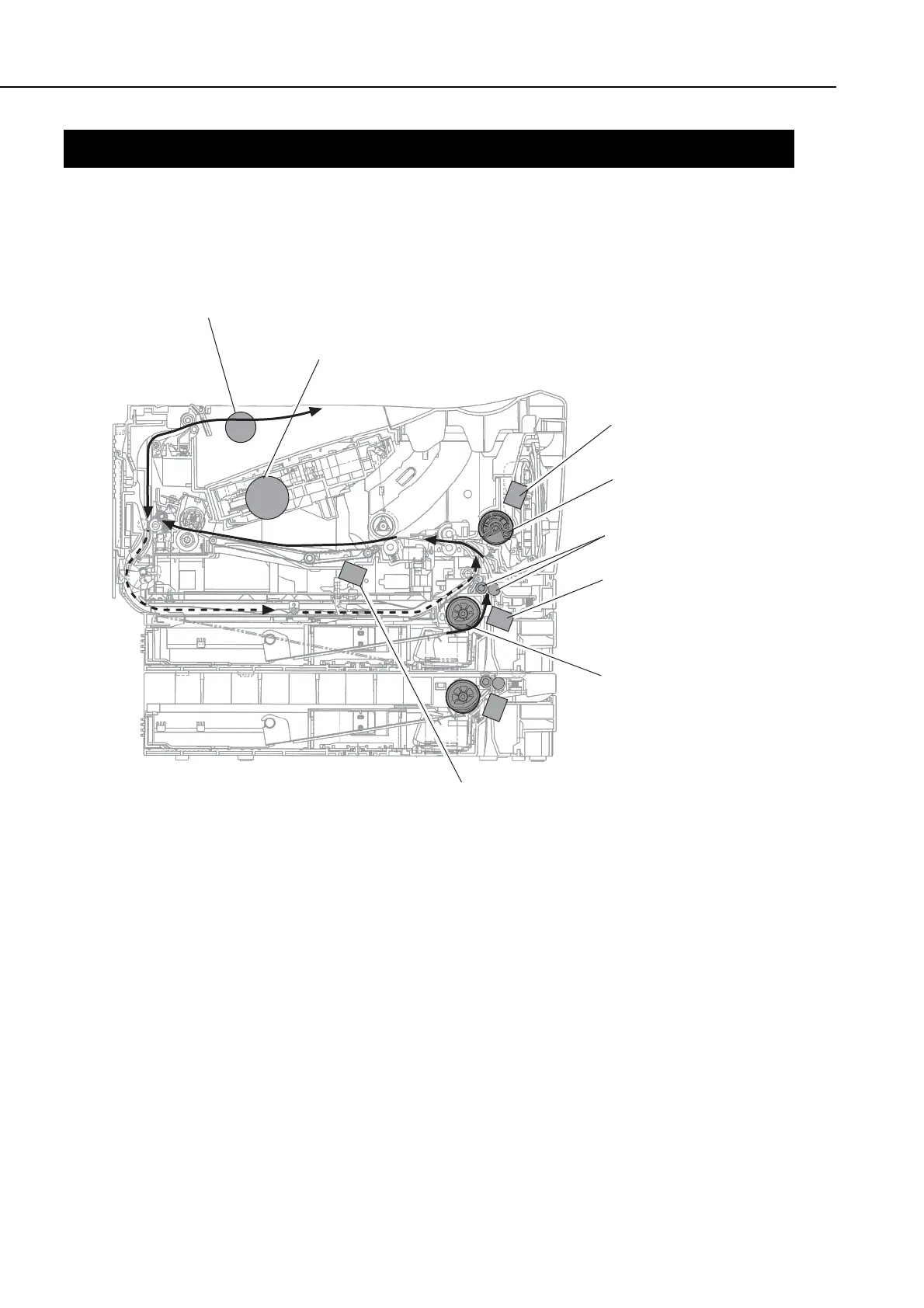

Figure 2-5 Paper supply section
Main motor
MP tray pickup
solenoid
MP tray pickup
roller
Feed roller
Cassette pickup
solenoid
Cassette pickup
roller
Reverse motor
Duplex solenoid
