Canon LASER CLASS 710 - 2.15 Static Charge Eliminator; 2.16 Paper Feed Belt; 2.17 Paper Feed Guide; 2.18 Duplex Feed Guide

LASER CLASS 730i/720i/710 Chapter 4: Maintenance and Service
4-7
2.15 Static Charge Eliminator
Wipe with a lint-free paper and remove any foreign matter, such as paper fragments.
2.16 Paper Feed Belt
Using lint-free paper dipped in isopropyl alcohol, wipe of the paper feed belt.
2.17 Paper Feed Guide
Using lint-free paper dipped in isopropyl alcohol, wipe of the paper feed guide.
2.18 Duplex Feed Guide
Using lint-free paper dipped in isopropyl alcohol, wipe of the duplex feed guide.
2.19 Fixing Entrance Guide
Wipe with a lint-free paper and remove any toner or paper debris.
2.20 Fixing Film
Using lint-free paper dipped in isopropyl alcohol, wipe of the fixing film.
2.21 Fixing Pressure Roller
Using lint-free paper dipped in isopropyl alcohol, wipe of the fixing pressure roller.

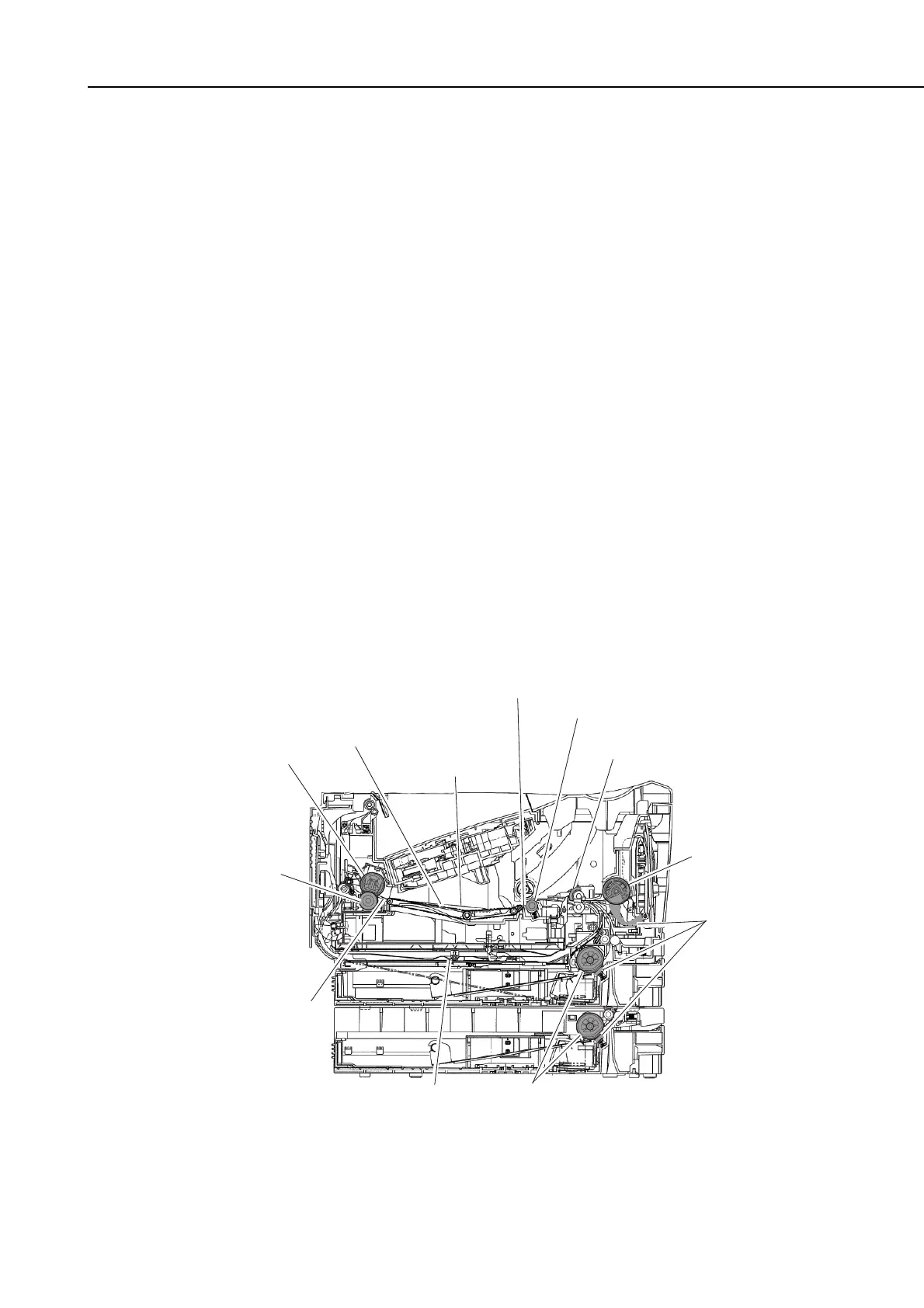

Figure 4-6 Cleaning Location 1
Registration shutter
Transfer charging roller
Multi-purpose tray
pick-up roller
Separation pad
Cassette pick-up roller
Duplex feed guide unit
Paper feed guide
Paper feed belt
Fixing film
Fixing entrance guide
Fixing pressure roller
Static charge eliminator
