LASER CLASS 730i/720i/710 Chapter 5: Appendix
5-37
3.4 FXL-CASSETTE FEEDER 6 (LTR/500)
3.4.1 Safety and precautions
a) Personal precautions
During servicing, if you have to operate the sensor arm, be careful to keep hair, clothes,
accessories, etc. from becoming wrapped up in moving and rotating parts.
- The cassette pickup roller, and cassette feed roller are rotated by the main motor.
- The cassette pickup solenoid controls the cassette pickup roller.

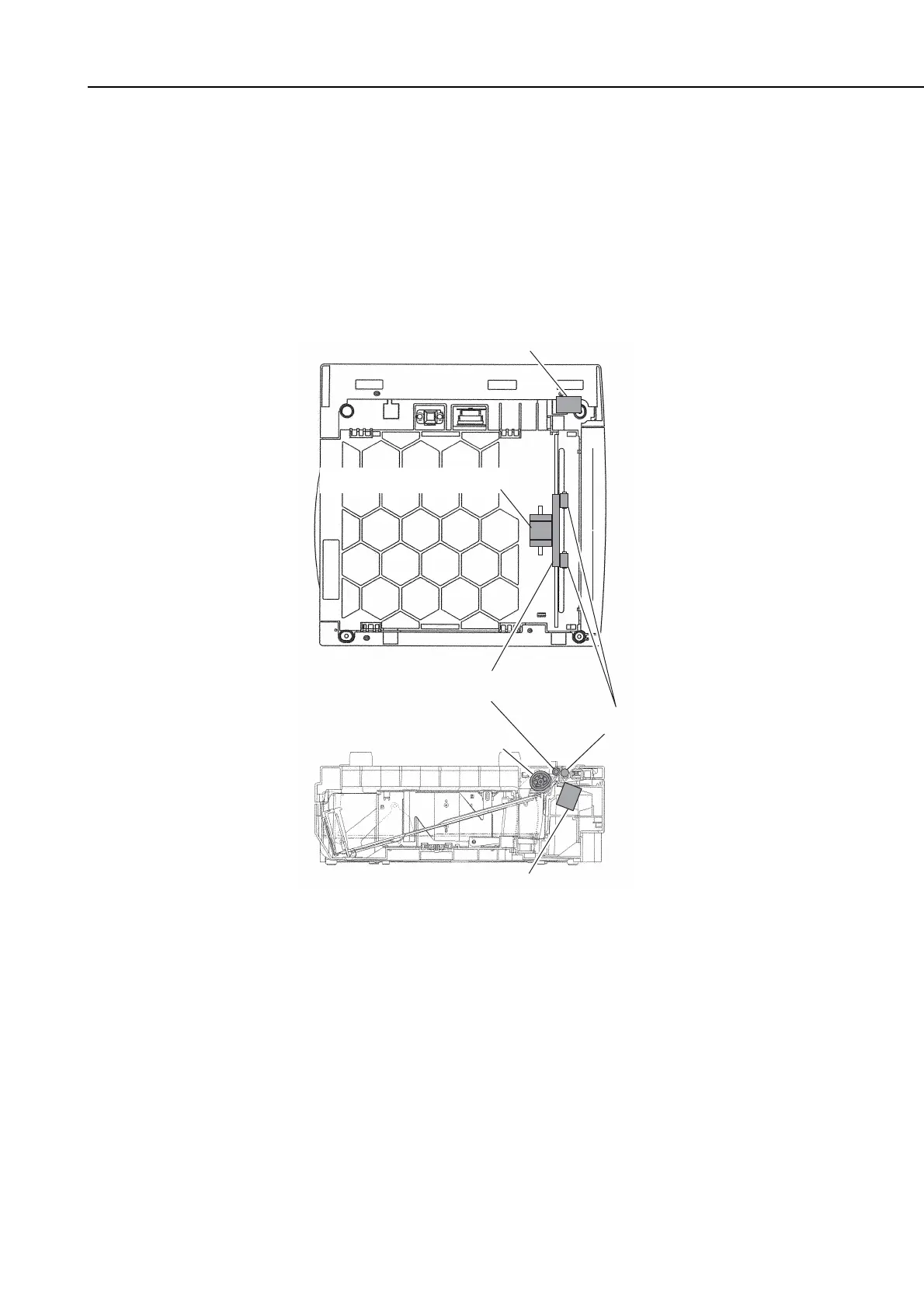

Figure 5-41 Moving and Rotating Parts
Cassette feed roller
Lower feed roller
Cassette pickup roller
Cassette pickup solenoid
Cassette pickup solenoid
Cassette pickup roller
To Next Page
