3.4.2 Service operations
a) External View

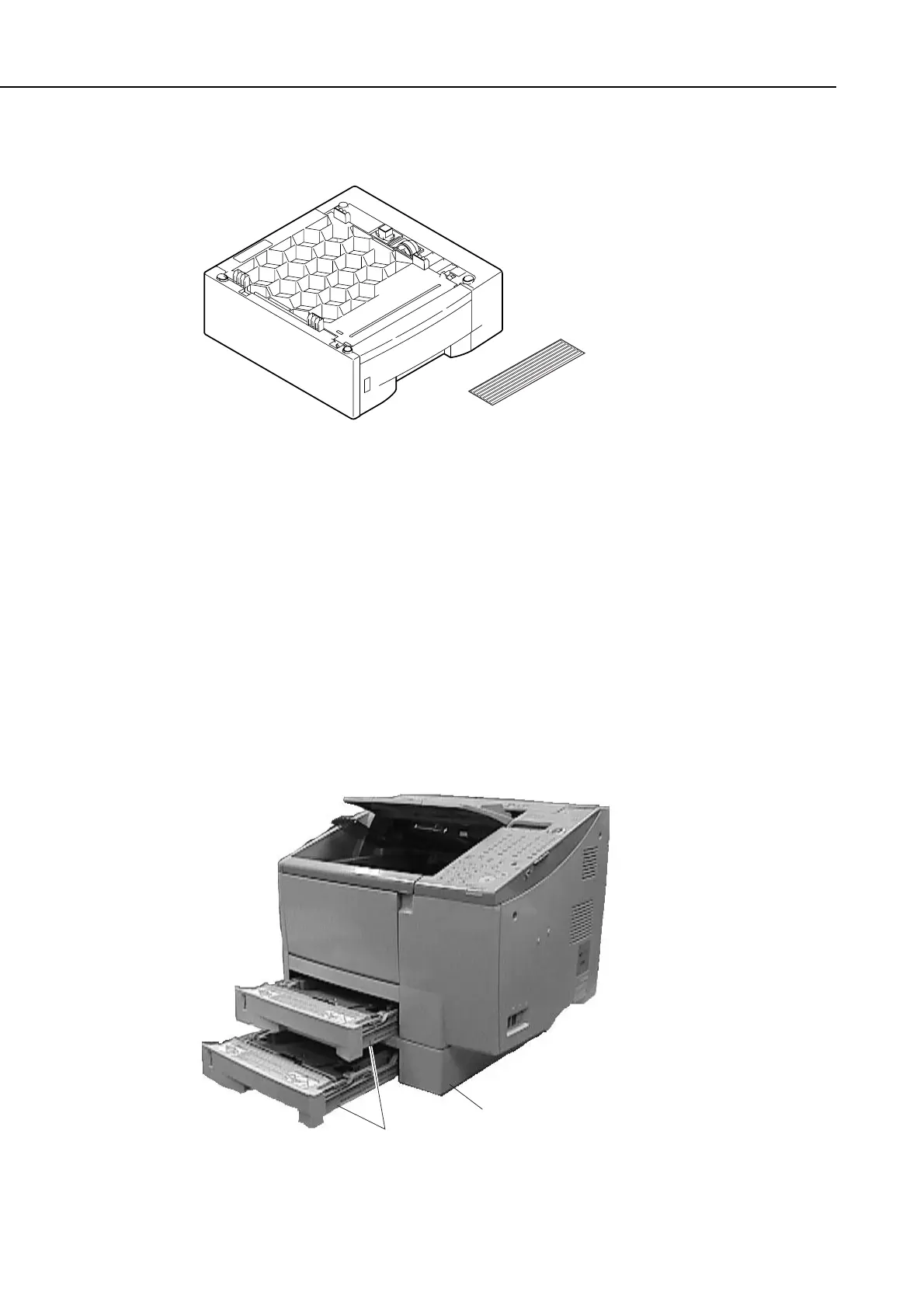

Figure 5-42 External View
b) Installation
b-1) Unpacking
Check that the box contains the cassette feeder including the paper cassette and label.
b-2) Preparation
Perform the steps below before attaching the cassette feeder.
(1) Disconnect the modular jack cord (telephone line) from the fax.
(2) Disconnect the power cord of the fax unit at the power source.
(3) Check to make sure that the main fax machine is equipped with a 250-sheet cassette
feeder.
(4) Remove the 250-sheet cassettes (i.e., both of them).
Figure 5-43 Preparation for Installation 1
250-sheet cassette feeder
Cassettes (250 sheets)
