Canon LASER CLASS 710 - 3.2 Handset Kit 8 (CW)

LASER CLASS 730i/720i/710 Chapter 5: Appendix
5-30
Handset
Handset rest Handset rest holder
Screws
Screws
Bottom
Top
3.2 Handset Kit 8 (CW)
3.2.1 Service operations

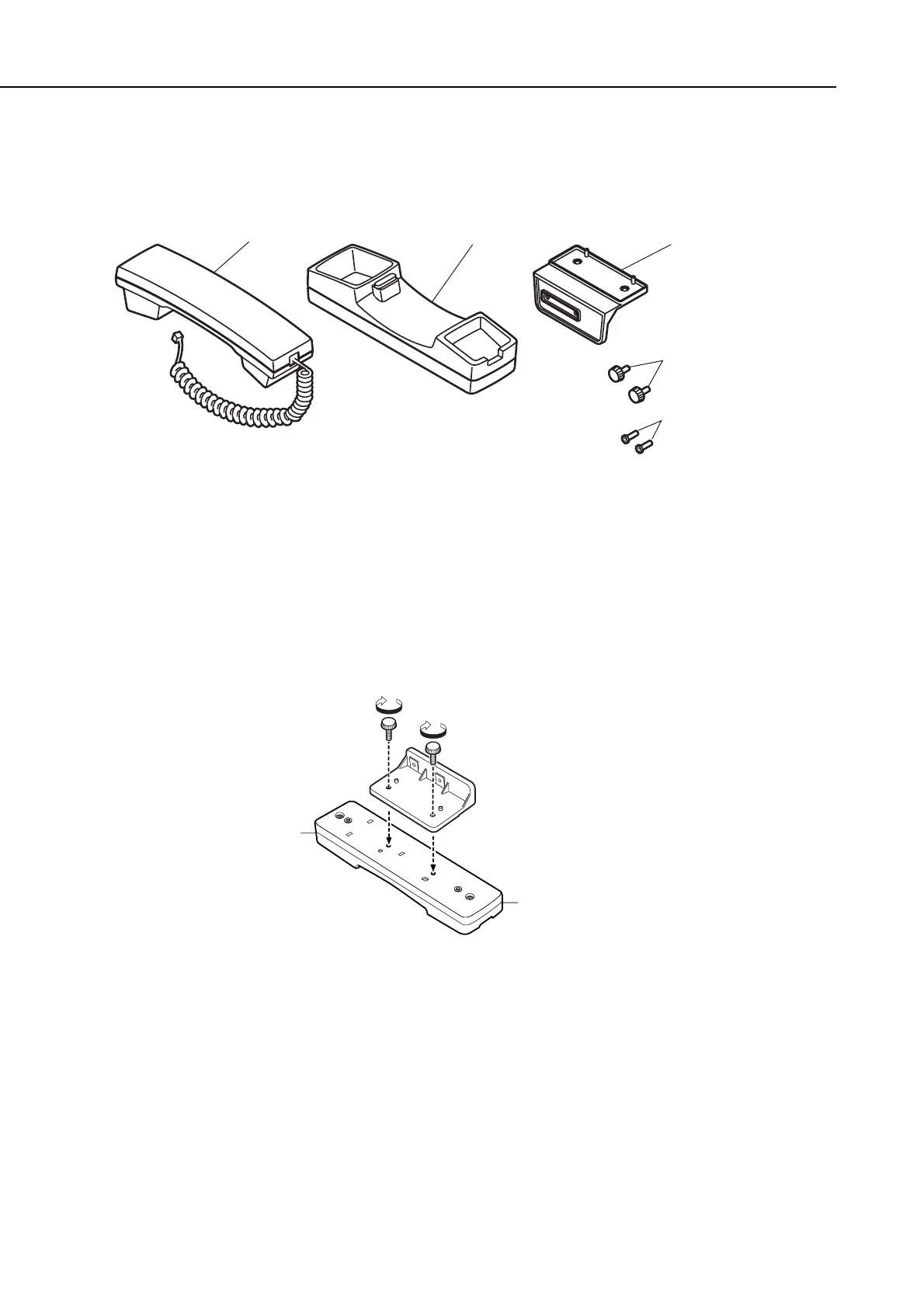

a) External view
Figure 5-30 External View
b) Installation
b-1) Unpacking
Check that the box contains the handset, handset rest, handset rest holder and four screws.
b-2) Attachment to the main unit
Figure 5-31 Handset Installation 1
