3.6 Dual-line Upgrade Kit III
3.6.1 Safety and precautions
Damage due to electrostatic discharge
Electrostatic charge in the human body can will be the cause of damage to electronic parts
as well as changes in their characteristics. When attaching / removing the kit, be sure to
take measures against electrostatic discharge by using a wrist strap, etc. If the kit is handled
when an electrostatic charge is present, the electronic parts will suffer damage.
REFERENC
Countermeasures for Electrostatic Discharge
For details regarding countermeasures for electrostatic discharge, please refer
to
Chapter 3, 1.2 General Cautions, Damage due to electrostatic
discharge
.
3.6.2 Service operations
a) External view

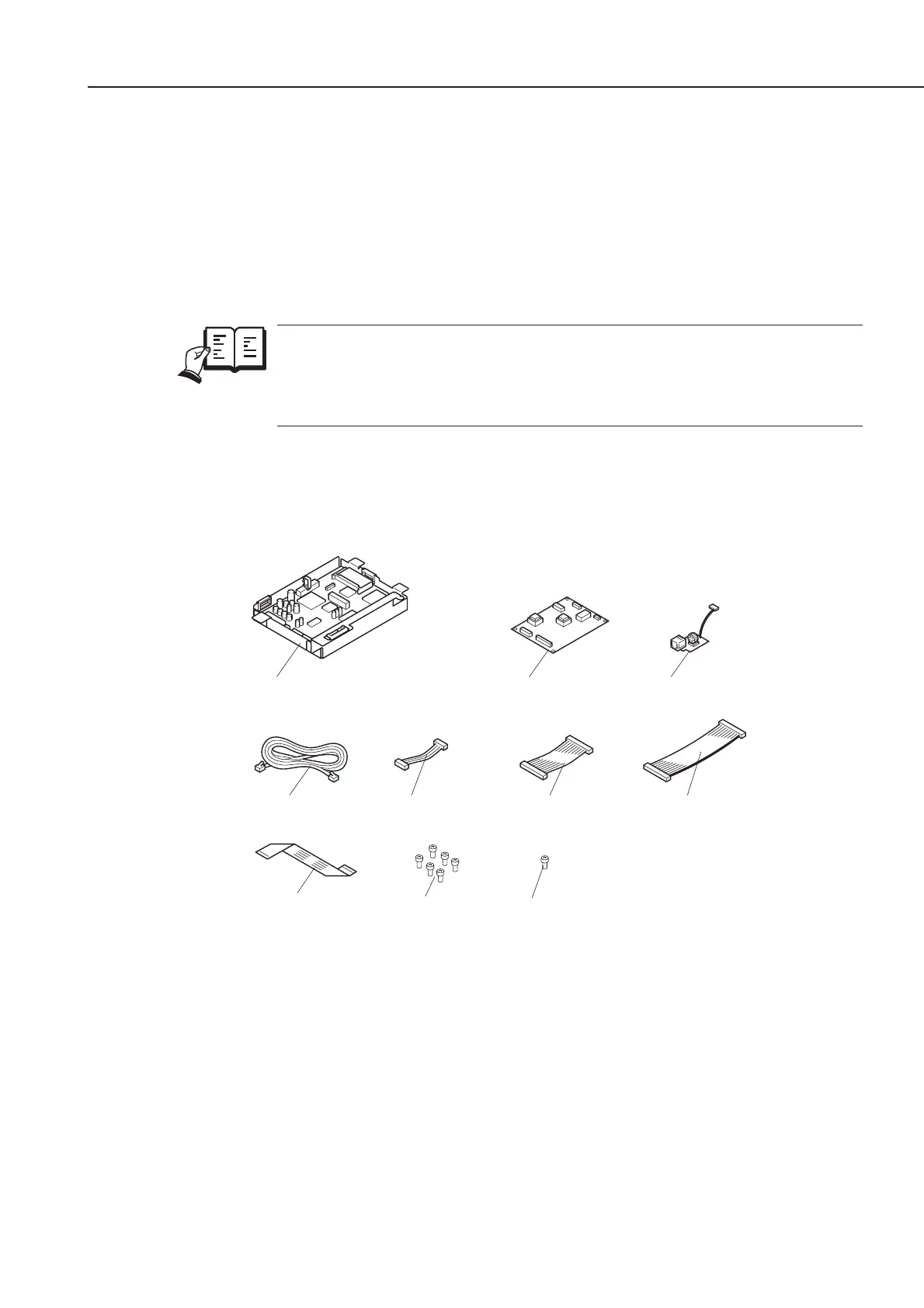

Figure 5-60 External View
Dual-line unit (G3 FAX board)
Cable (6-pin)Mojular cord Cable (14-pin) Cable (40-pin)
Flat cable Screws Tap screw
NCU board Mojular board
To Next Page
