a-5) Jam/err log report
This report shows history of jam, error and alarm.
Guide to a jam history

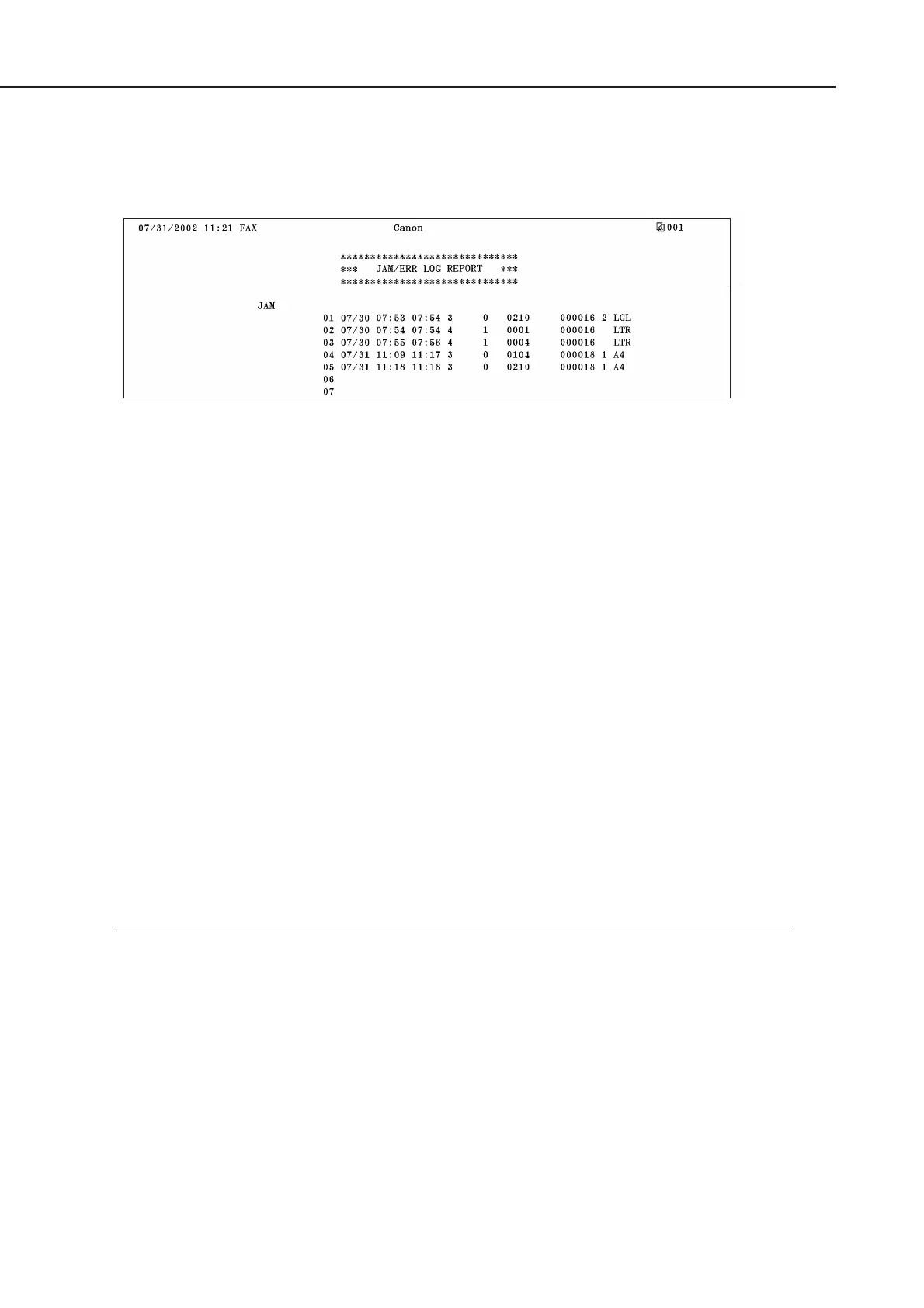

Figure 4-61 Jam/Err Log Report (Jam)
*1 : Jam history
*2 : Sequence of jams (higher, more recent)
*3 : Date of occurrence
*4 : Time of occurrence
*5 : Recovery time
*6 : Approximate location (3: machine; 4: ADF)
*7 : Location block (0: machine; 1: ADF)
*8 : Jam code
*9 : Total counter reading (6 digits)
*10 : Paper source 0: MP tray
1: Cassette 1
2: Cassette 2
3: Cassette 3
*11 : Paper size
The following is a list of main unit codes and the types of jams corresponding to them:
Code Jam type
0104 Pickup section delay jam
010C Eject section delay jam
0120 Reversed paper sensor delay jam
0124 Duplex pickup paper sensor delay jam
0208 Pickup section stationary jam
0210 Eject section stationary jam
0221 Reversed paper sensor eject stationary jam
0228 Duplex pickup paper sensor stationary jam
1014 Remain jam
1118 Cover open jam
