(7) Connect the 10-pin cable to the connector J205 of the power supply unit.
(8) Attach the cable clip to upper inside the shield case to fix the 10-pin cable.
(9) Put the core through the cable.

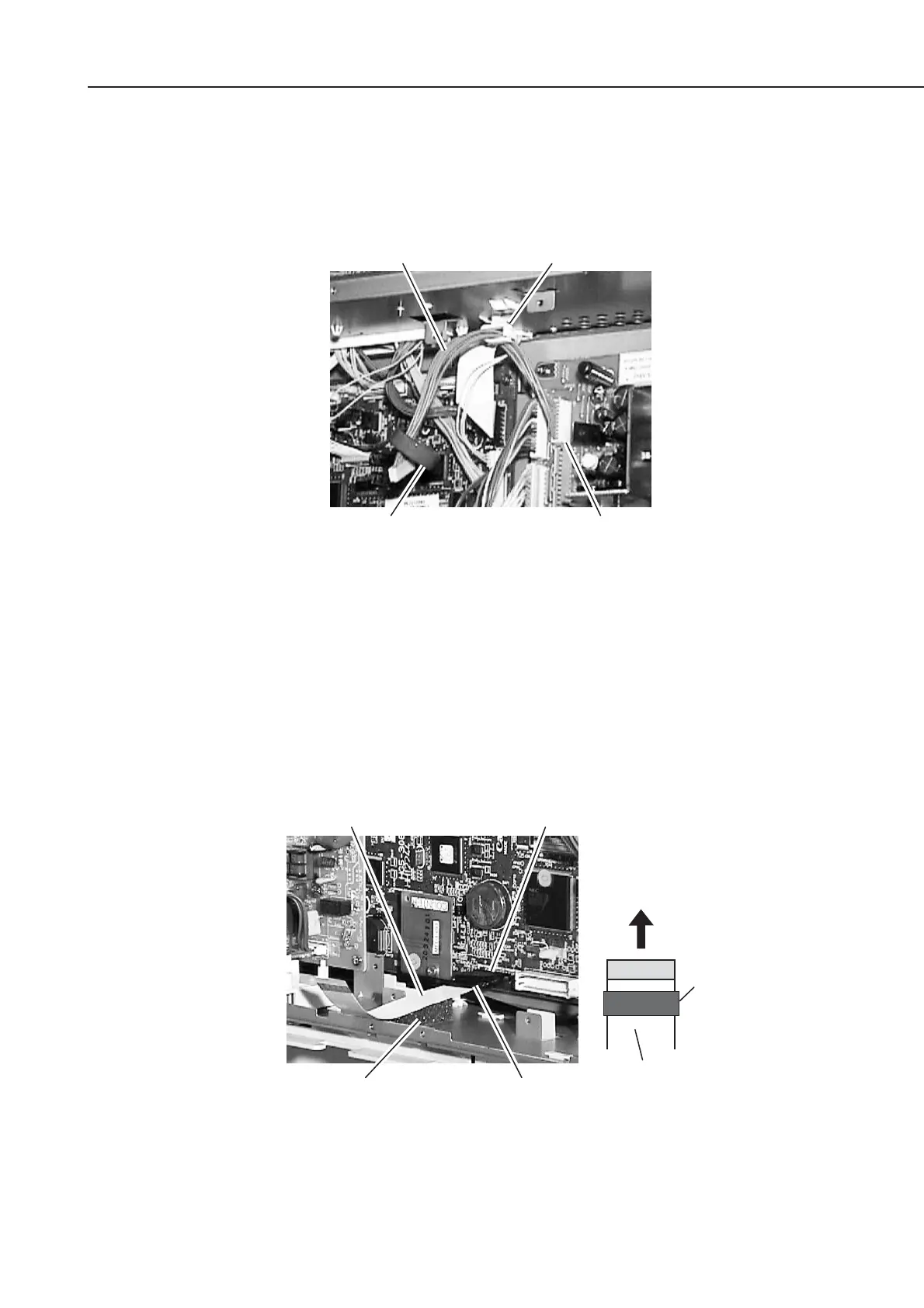

Figure 5-76 Preparation for Installation 4
(10) Connect the flat cable to the connector J2 of the SCNT board. At this time, face up
the white flat cable surface, and connect the core side of the flat cable to the SCNT
board
(11) Attach the air shield (sponge) to lower inside the shield case, which is under the flat
cable.
Figure 5-77 Preparation for Installation 5
Connector J205
Cable clipCable (10-pin)
Core
Flat cable Connector J2
To connector J2
Core
White surface
Air shield (sponge) Core
