LASER CLASS 730i/720i/710 Chapter 4: Maintenance and Service
4-4
Document pick-up roller
Separation roller (Upper)
Document feed roller
Separation roller (Lower)

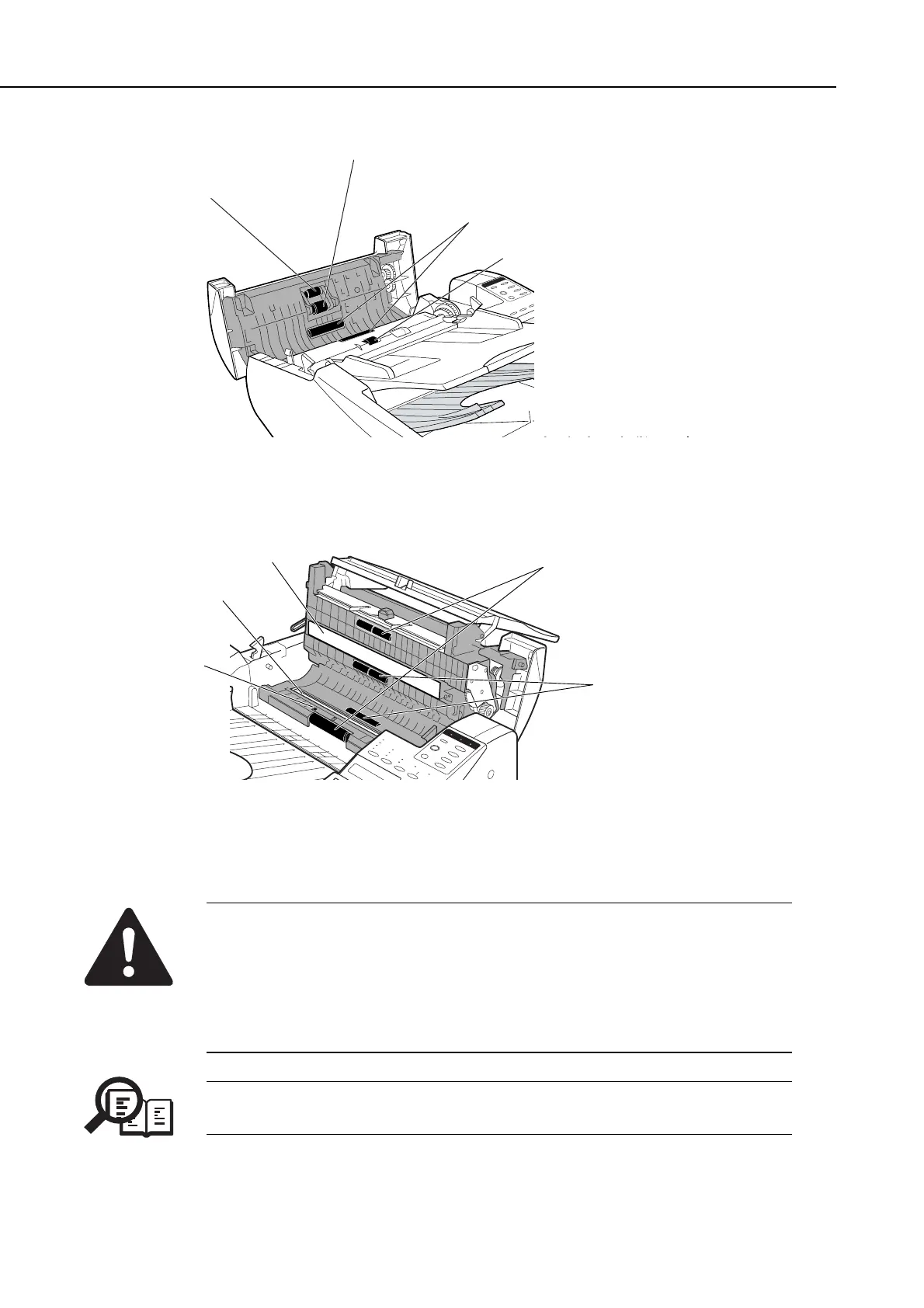

Figure 4-1 Cleaning Location 1
Figure 4-2 Cleaning Location 2
Do not use tissue. Otherwise, paper dust may stick to the parts or a static
charge may be generated.
Precautions when using Isopropyl alcohol (IPA)
When cleaning with IPA, take care to prevent the IPA from splashing high-
temperature parts. If IPA splashes high-temperature parts, leave for at least
three minutes to allow the IPA to evaporate.
If you have installed the optional stamp kit, be careful not to touch the stamp
ink compartment when cleaning the scanning area.
