kVent – rel 3.1 – 22/06
/2018
8
2.3

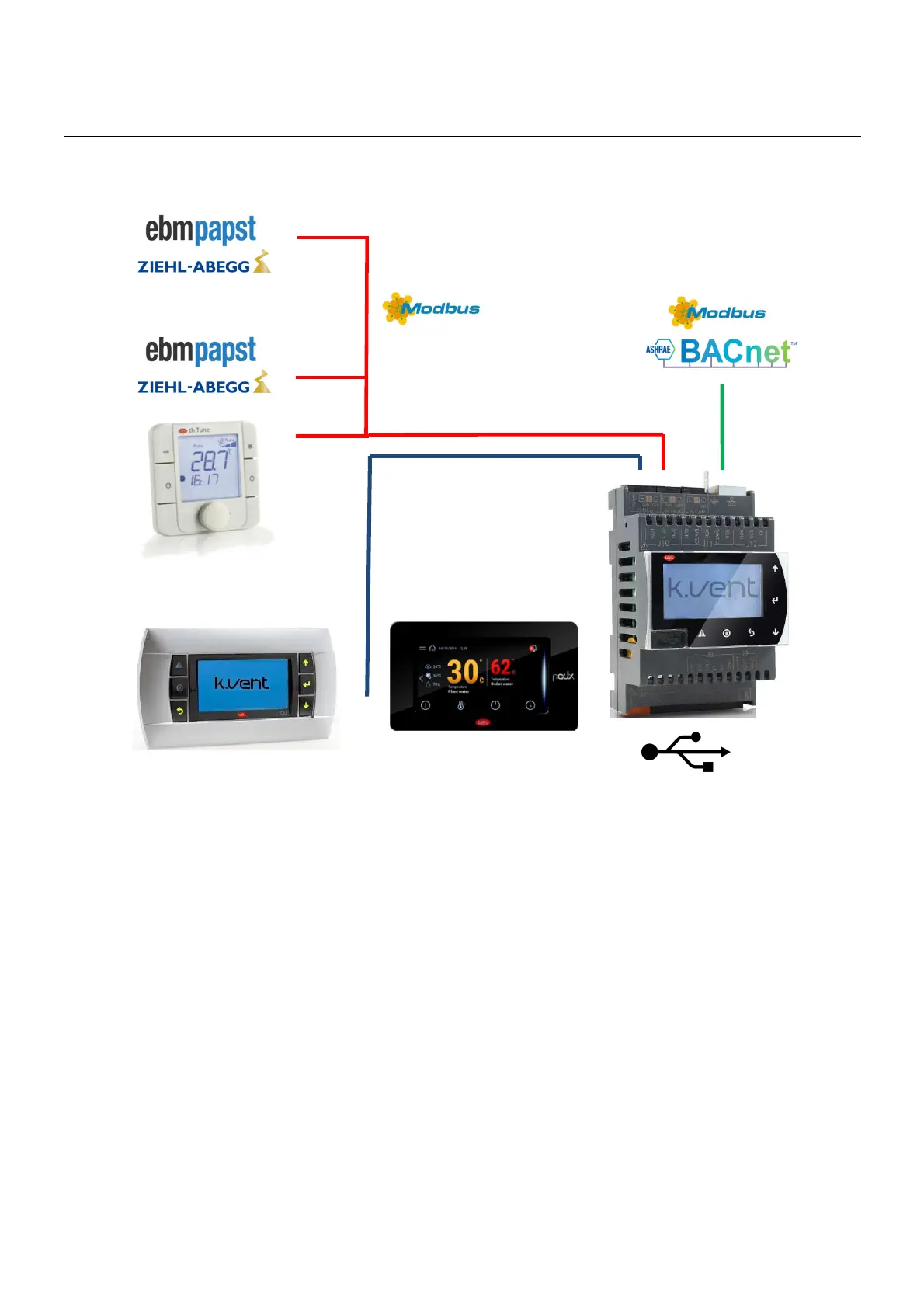

Field connection
Default frame FieldBu
s port for Modbu
sMaster 19200 8N2.
With the follow
ing parameters is possible to define
a different Fra
me:
Ha91: Stop bits
Ha92: Parity
Display protocol
on port
DISP
ModBus® master
protocol on port
FB
thTune
Addr. 1
Return fan
Addr. 11
Supply
f
an
Addr. 12
7
9
