24

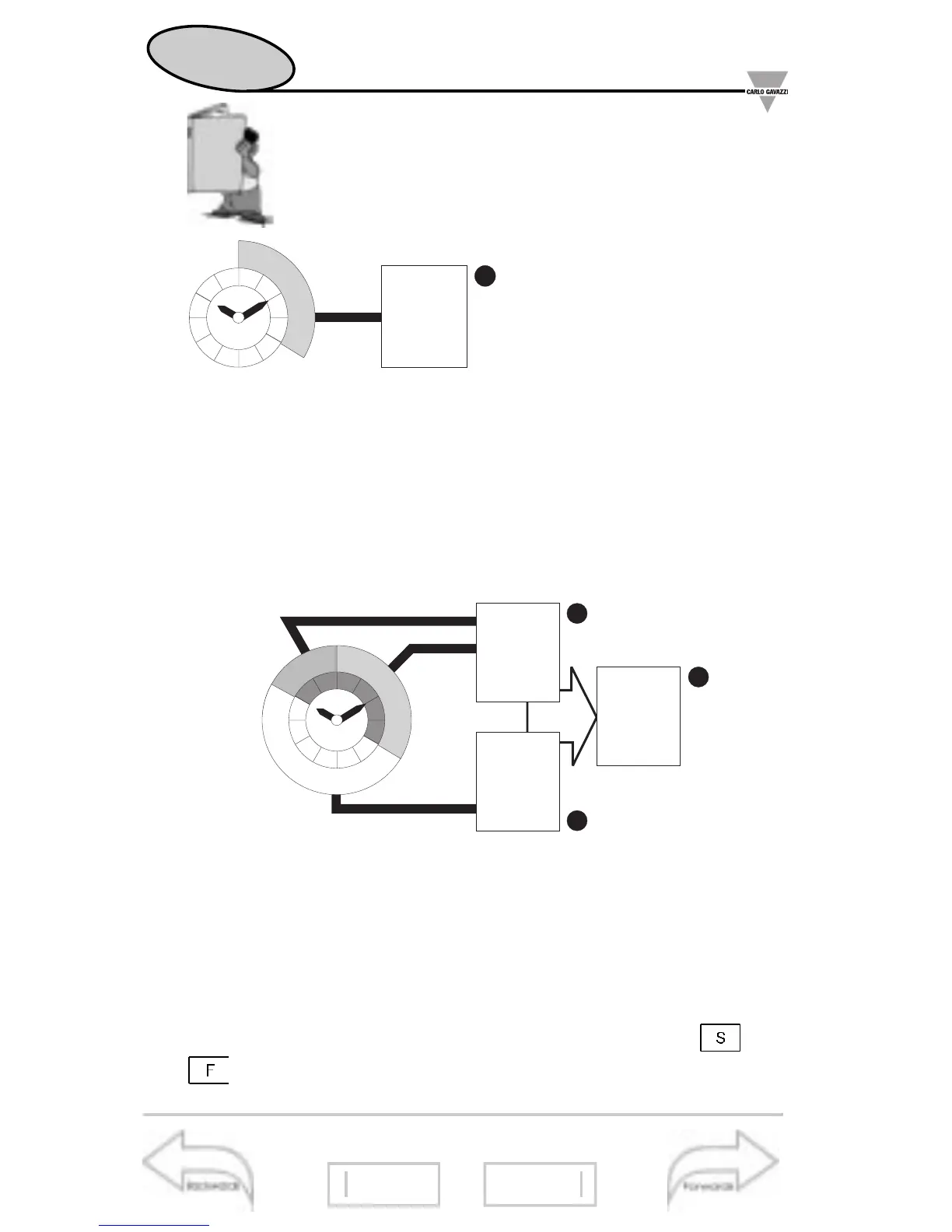

a) the day can be divided into up to 8
different periods connected to up to 4
different tariffs according to the following
working principle:
24
6
12
18
2
4
8
10
14
16
20
22
trf1
+kWh
-kWh
+ kvarh
- kvarh
1
The measured energy (partial energy) is placed in TARIFF
1 when the time period is from midnight to e.g. 8:00am, in
TARIFF 2 when the time period is from 8:00a.m. to 08:00p.m.
and again in TARIFF1 when the time period is from 08:00p.m.
to midnight. The total measured energy is the result of the
sum of all the partial measures as shown in the figure below:
24
6
12
18
2
4
8
10
14
16
20
22
trf1
trf2
trf1
+ kWh
- kWh
+ kvarh
- kvarh
+ kWh
- kWh
+ kvarh
- kvarh
+ kWh
- kWh
+ kvarh
- kvarh
1
2
T
b) the starting point of the first time period is always 24:00
(midnight) and cannot be changed;
c) the starting point of the following period is always the end
hour of the previous time period;
d) the daily loop is closed by setting 24:00 as last hour of
the last time period (to follow this procedure see point 4 on
the previous page), confirm the setting by pressing and
to go back to the TARIFF SELECTION menu.
Energy Meters Management
Average power calculation
19
22 28
Trf holiday period
26
Imported active energy
Exported active energy
Imported reactive energy
Exported reactive energy
