30

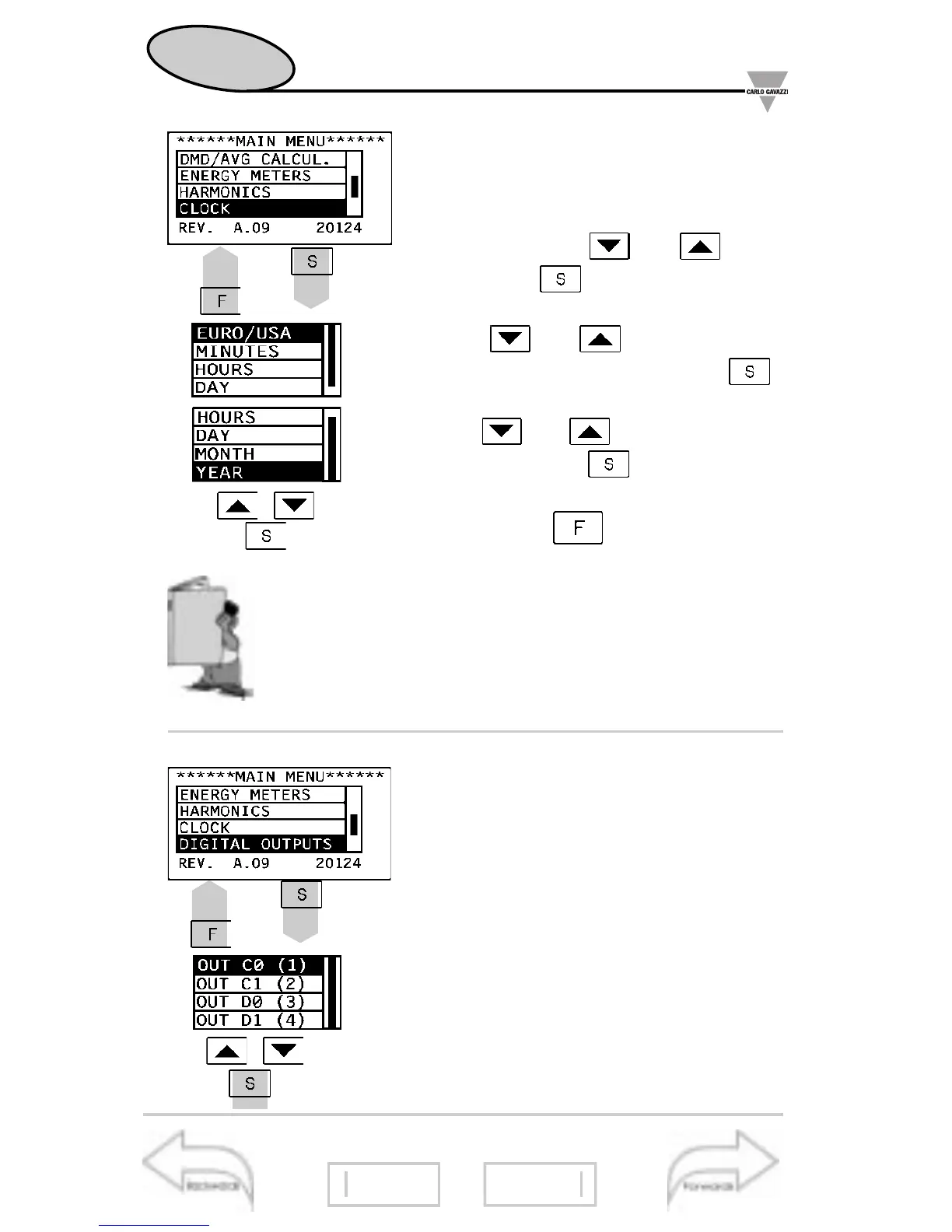

Clock setting
This function enables the user to set
the data relating to date and time.
Select CLOCK from the main menu
by means of the and keys;
then press to enter the menu.
Choose the desired function by means
of the and keys; Enter the
desired secondary menu with .
Then set the desired value by means
of the and keys and confirm
the value with . To reset the
choices and go back to the main
menu, press .
The EURO/USA function allows the user to display
the date and time according to the EUROPEAN
(EURO, date: day/month/year; time: 24 hours) or
AMERICAN (USA, date: month/day/year; time: 12
hours / AM and PM) format.
Digital outputs
This function enables the user to
connect the type of digital output to
the slot at the beginning. The instru-
ment indicates if the module is not in
the slot with the message NOT
AVAILABLE; whereas if the module
is in the slot, the instrument auto-
matically goes to the digital output
menu, where the user can set four
different types of output:
PULSE OUTPUT, ALARM OUTPUT,
