51
Installation
The termination of the serial output is carried out
only on the last instrument of the network, by means
of a jumper between (Rx+) and (T).
RS485 Serial outputs

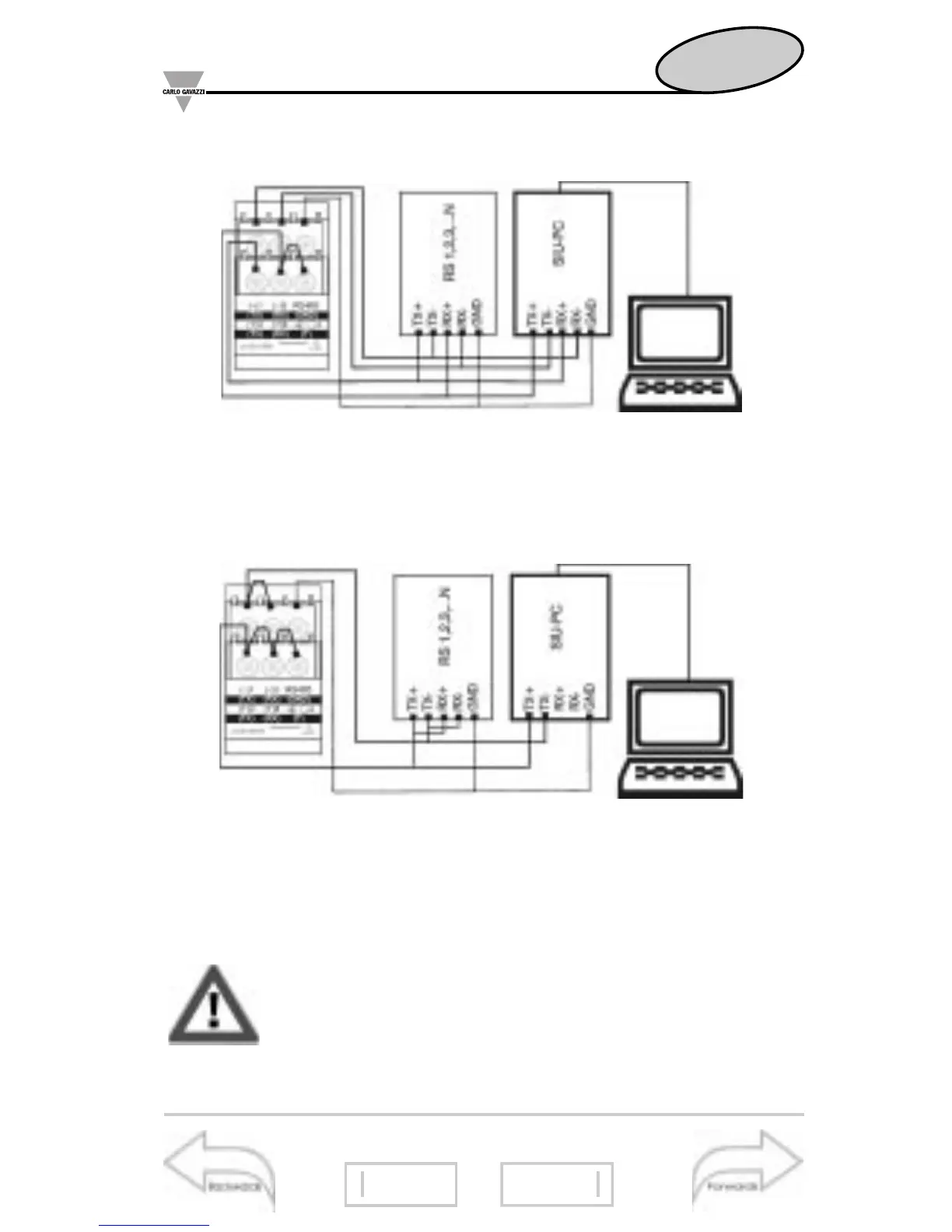

4-wire connection. Additional devices provided with RS485
(that is RS 1, 2,3 ...N) are connected in parallel.
2-wire connection. Additional devices provided with RS485
(that is RS 1,2,3,...N) are connected in parallel.
Power supply modules
49
44
Single-phase connection
55
51
