Carpenter Model 860 Material Coiling Unit
Carpenter Model 860 Material Coiling Unit • Phone: (315) 682-9176 • Fax: (315) 682-9160
Website: www.carpentermfg.com • Email: wire@carpentermfg.com
Revised 05/09/2024 Page 24

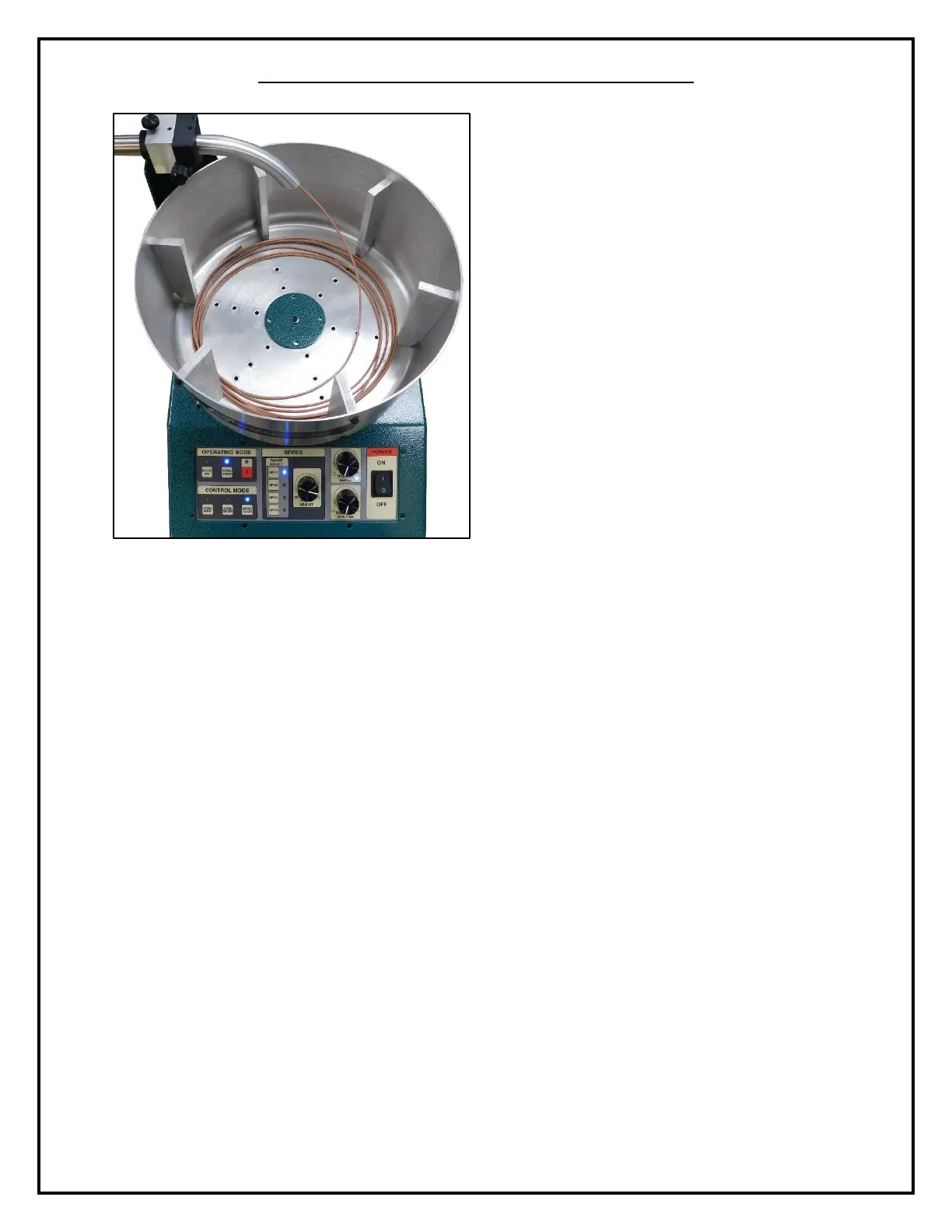

Figure 10: Correctly-Formed Material Coil
4. To remove the coiled material from the Model 860 coiling bowl, pull the PN 8667 knob
and rotate the adjustable tube assembly 90° into the up (stop) position. Gently remove
the material from the PN 8666 material exit tube and lift the coiled material from the
coiling bowl.
5. Pull the PN 8667 knob and rotate the adjustable tube assembly 90° in the down (run)
position.
