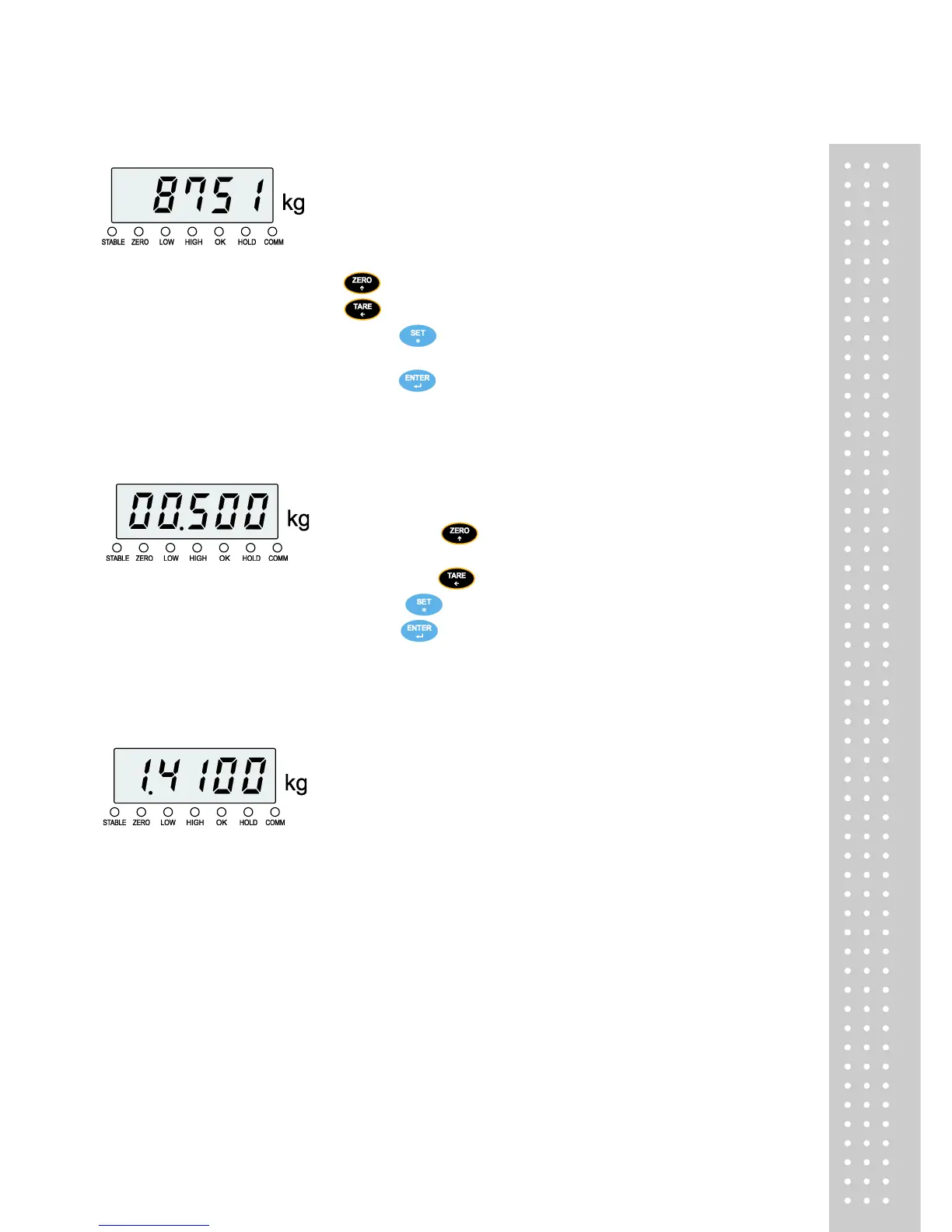

Ⅲ. Step 3
It is a step to check zero status in the current
indicator.
A random value A/D is shown on the display,
which means zero for calibration.
Key is not used.
Key is not used.
Press Key to move to the setting for the maximum
display weight
Press Key to store the currently displayed
zeroing value.
Move on to the next step.
Ⅳ. Step 4
It is a step to enter mV/V displayed on the loadcell.
Ex) Enter 2.0000 if 2mV/V is displayed on the load cell.
Whenever Key is pressed, the number increases in
0 -> 9
Whenever Key is pressed, it moves to the left
Press Key to check zero status and move
Press Key to store the currently displayed value for
counterweights Move on to the next step.
Proceed to Step 5 as it moves onto Step 3 of gage bar.
Ⅴ. Step 5
A span constant is shown on the display
It enters the weight mode as C.EnD. is
blinking and then reset.
※ While setting the weight of counterweights;
The span can be more accurately adjusted; if (a value for a division) is 1/5,000 or less, prepare counterweights
in 10% or more of the maximum display division and set the value; if it is 1/5,000 or more, prepare
counterweights in 20% or more of the maximum display division and set the value.
- If the weight of counterweights for not less than the maximum display division is set, Error 04 Message is
displayed.
- If the weight of counterweights for 10% or less of the maximum display division is set, Error 05 Message is
displayed.
