■ RS-422/485 Serial Communication (Separate Option)
RS-422/485 method is more stable for electric noises than any other communication
methods as it communicate signals in the voltage difference. In addition, the wiring should
be done away from AC power cable or other electric wires. The shield coax cable should be
used in any case. The recommended distance in use is the dedicated line within 1.2km.
- Signal Format
①Type : RS-422/485
②Format : ⓐ Baud-Rate : 2400 ~ 115200 선택
ⓑ Data Bit : 7 or 8 (No Parity)
ⓒ Stop : 1
ⓓ Parity Bit : Even, Odd, No Parity 선택
ⓔ Code : ASCII
1
LSB0
1
2
3
4
5
MSB
6
0

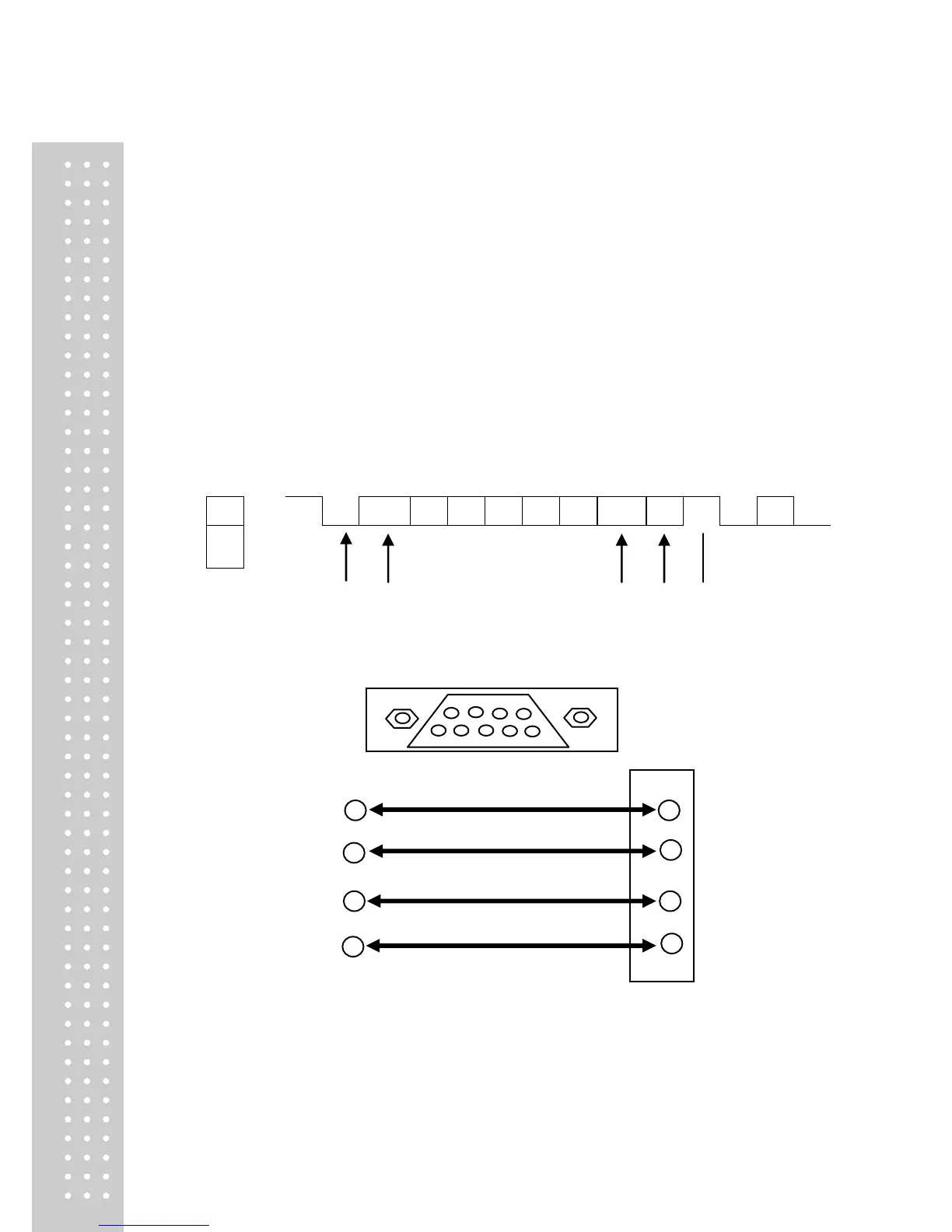

- Data Format
The same as RS-232C
- RS-422/485 Circuit (4P Connector)
6 9
Indicator PC
8 TXD(+) RxD(+)
9 TXD(-) RxD(-)
6 RXD(+) TXD(+)
7 RXD(-) TXD(-)
1.5V Difference
of Potential
Data bit
Stop 1 bit
