8. Interface

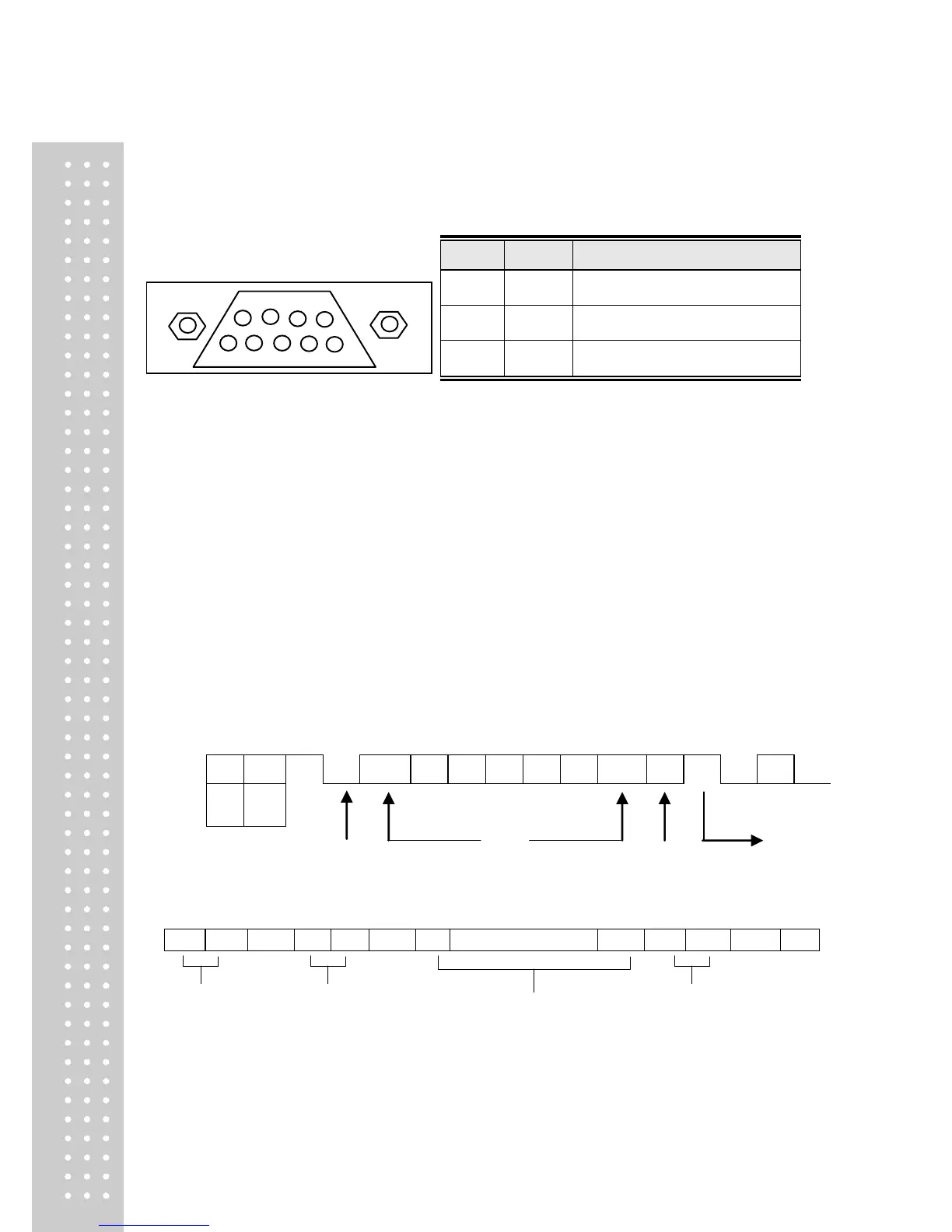

■ RS-232C Interface
No.
Name
Use
2
RXD
RS-232C reception
3
TXD
RS-232C transmission
5
GND
RS-232C common
1 5
RS-232C Interface is sensitive to electric noises.
Therefore, it should be wired away from AC power cable or other electric wires.
The shielded cable should be used in any case.
Communication mode: It can be set from F-Function(F30~F35).
- Signal Format
①Type : EIA-RS-232C
②Method : Half-Duplex, full-duplex, asynchronous method
③Baud-rate : Optional for 2400,4800,9600, 19200, 38400,
57600,76800,115200
④Data bit : 7 or 8(No, Parity)
⑤Stop bit : 1
⑥Parity bit : Optional for Even, Odd, No, Parity
⑦Code : ASCII
1
+9V
LSB0
1
2
3
4
5
MSB
6
0
-9V
⑧ Printer Format
Data format1(Basic Format)
,
,
k
g
CR
LF
Header1
Header2
Data(8)
unit
Data bit
Start bit
Parity bit
Stop bit
