3. Front Panel Descriptions

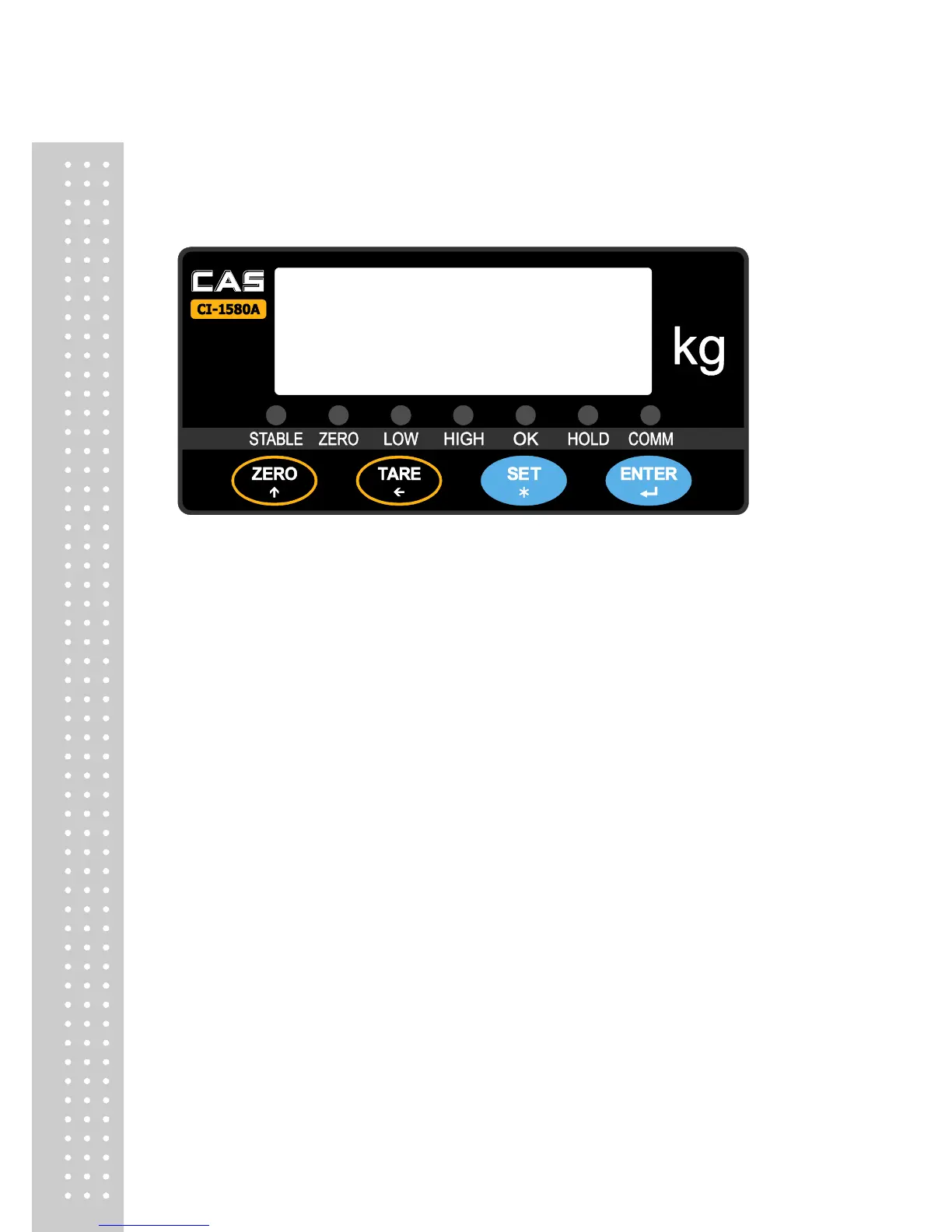

■ DISPLAY (CI-1580A)
■ Display
· Weight: The current weight at the indicator is displayed.
- Whenever the set key is pressed, the value for high limit, low limit or differences is
displayed.
■ Display of Status
· STABLE: It is displayed when the weight is stable.
· ZERO: It is displayed when the weight is “0”.
· LOW: It is displayed when the weight is the low limit or less.
· HIGH: It is displayed when the weight is the high limit or more.
· OK: It is displayed when the weighing is completed.
· HOLD: It is displayed while the weight is being held.
· COMM(RTxD): It is displayed while the product is communicating with other devices.
