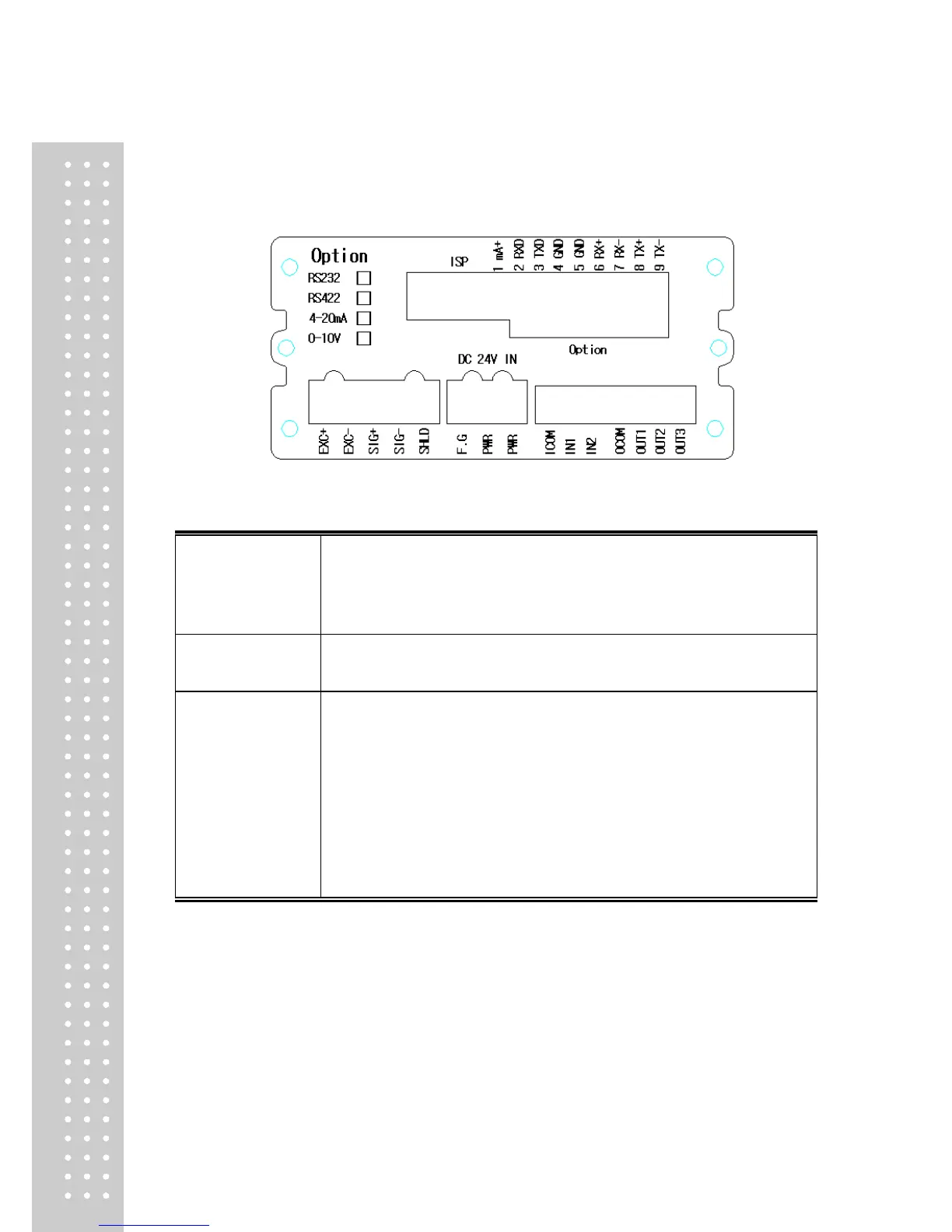

4. Rear Panel Descriptions
① POWER
- DC IN : As this product uses DC power supply, DC 24V
(500mA Trans Type) can be used for this product.
② OPTION
- RS-232C (3P Connecter I/F Communications) (Basic Specifications)
- RS-422/485 (4P Connecter I/F Communications) (Separate Option)
- 4~20mA (0~10V) (2P Connecter I/F) (Separate Option)
③ EXTERNAL
INPUT
1 +EXC - Load cell connection terminal
2 -EXC - Load cell connection terminal
3 +SIG - Load cell connection terminal
4 – SIG - Load cell connection terminal
5 SHIELD - Load cell connection terminal
6 F.G - Grounding
7 PWR - DC IN 24V (input regardless of polarity)
8 PWR -
9,10,11 ICOM, IN1~2(INPUT) – Refer to F11 set for F-Function Mode
12,13,14,15 0COM, OUT1~3(OUTPUT) – Refer to F21 set for F-Function
Mode
