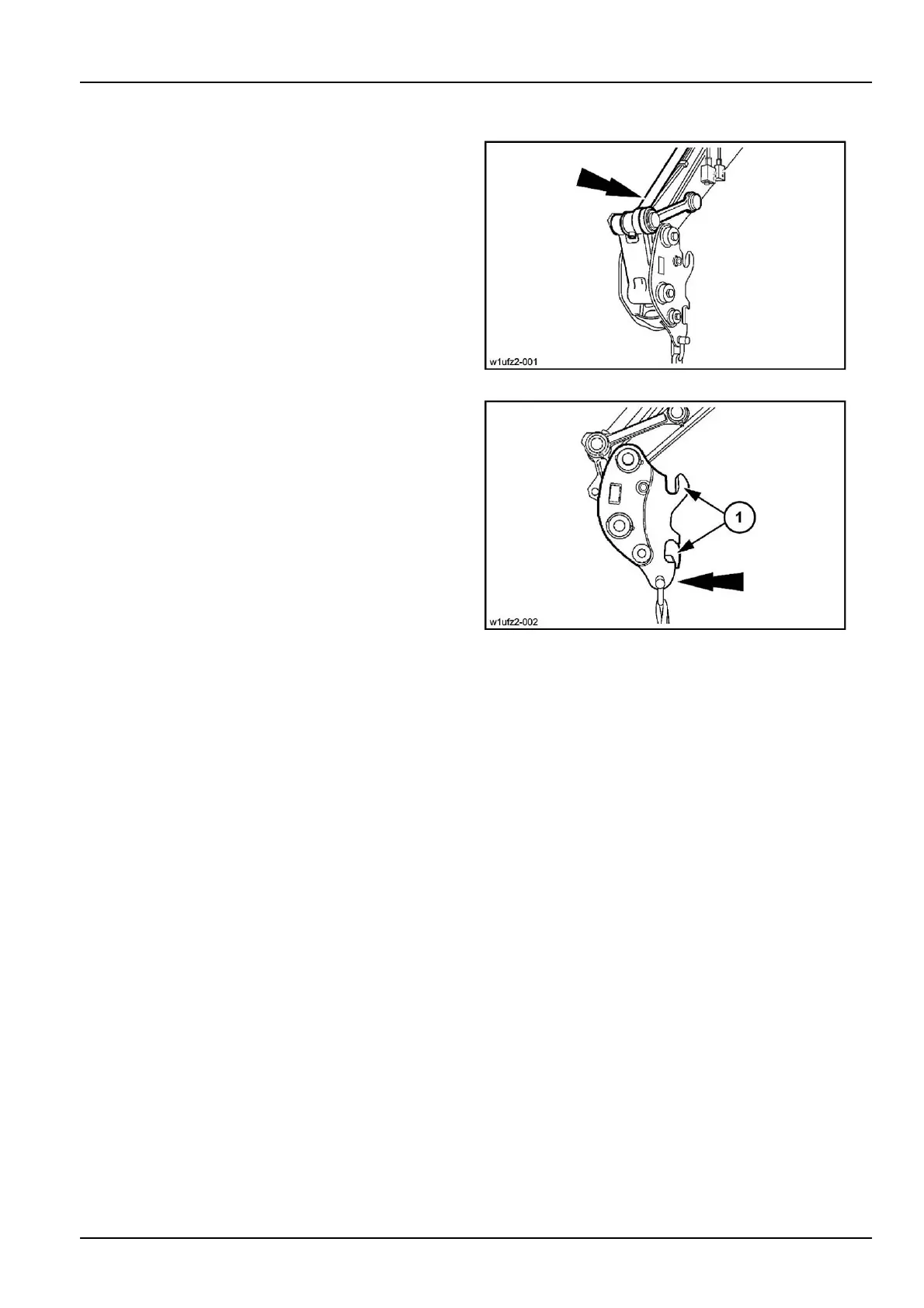

4-OPERATINGINSTRUCTIONS

Handlingtheloadwiththequickcoupler(optional)

Theloadwiththequickcouplermustbehandledwiththe

bucketcylinderrodcompletelyextended.

ATTENTION:Maintainthispositionthroughouttheload

handlingoperation.

W1UFZ2-001A2

Thehandlingeyemustbeabletobeseenfromthecab

throughouttheloadhandlingoperation.

ATTENTION:Itisstrictlyforbiddentousethefrontorrear

xingpoints(1)ofthequickcouplertohandletheload.

NOTE:Thequickcouplereyecanbeusedforhandling

loadsupto10t.

W1UFZ2-002B3

4-21
