Case CX235C SR - Adjustment and Mounting of Rear View Mirrors

4-OPERATINGINSTRUCTIONS
Adjustmentandmountingofrearviewmirrors
ATTENTION:Topositionthemanuallyadjustablemirrors,gethelpfromasecondperson.Fromtheoperator’sseat,
tellthesecondpersonhowtoadjustthemirrors.

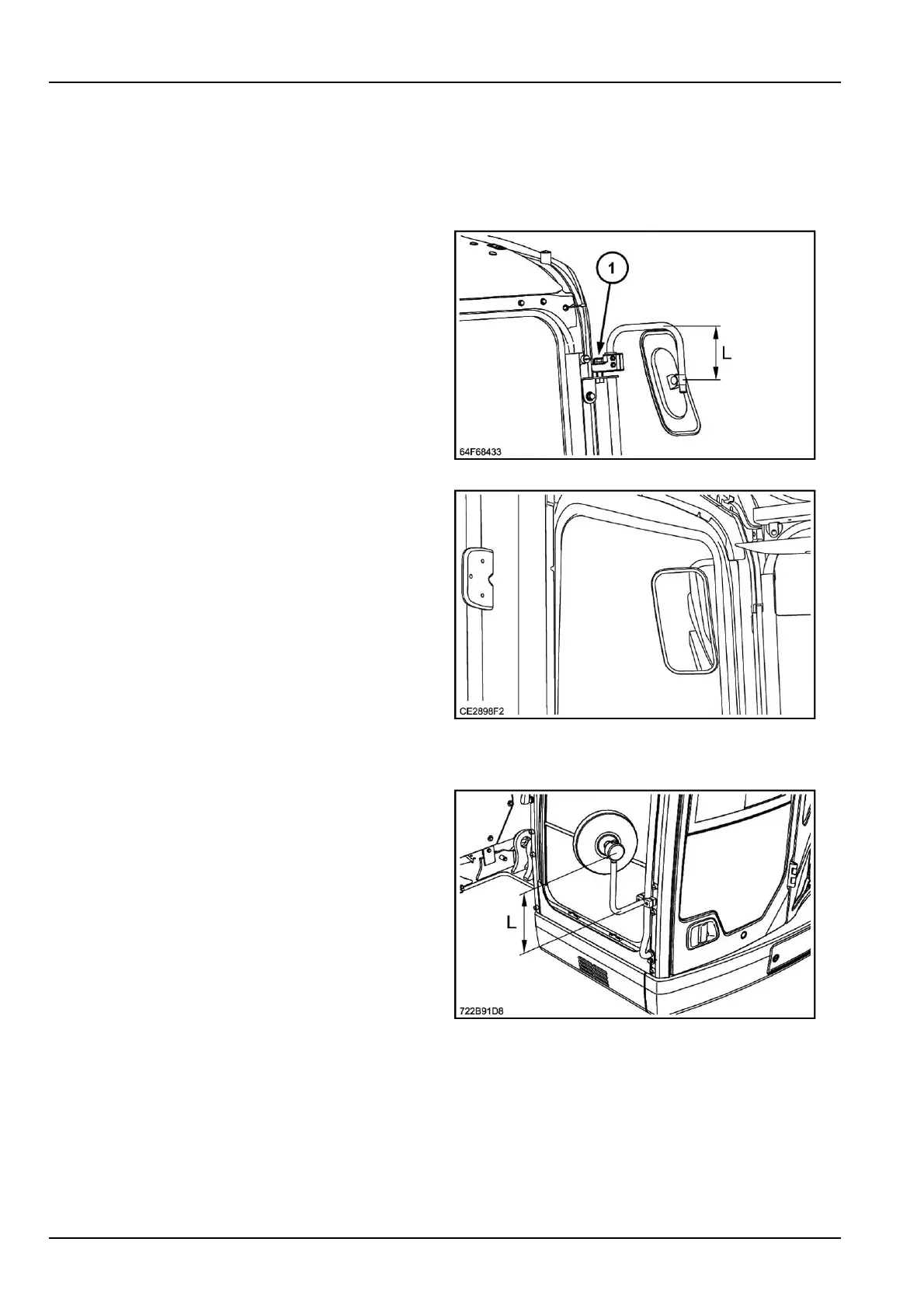

Onthecab(upper)
Adjustthemirrortoseetheleftrearedgeofthemachine
bysight.
Tighteningtorqueofbolt(1):71.6-91.2N·m(52.8-67.3
lbft).
(L)dimension:165mm(6.5in).
64F684331
Adjustthemirrortoseethesideofthemachine.
Tighteningtorqueofbolttotightthebodyofthemirror:
4.5-5.5N·m(3.3-4.1lbft).
CE2898F22
Onthecab(lower)
Adjustthemirrortoseetherightfrontedgeofthemachine
bysight.
(L)dimension:200mm(7.9in).
722B91D83
4-30
