Case CX235C SR - Front Right-Hand Console; Cigarette Lighter or Electrical Socket (24 Volts)

3-CONTROLS/INSTRUMENTS

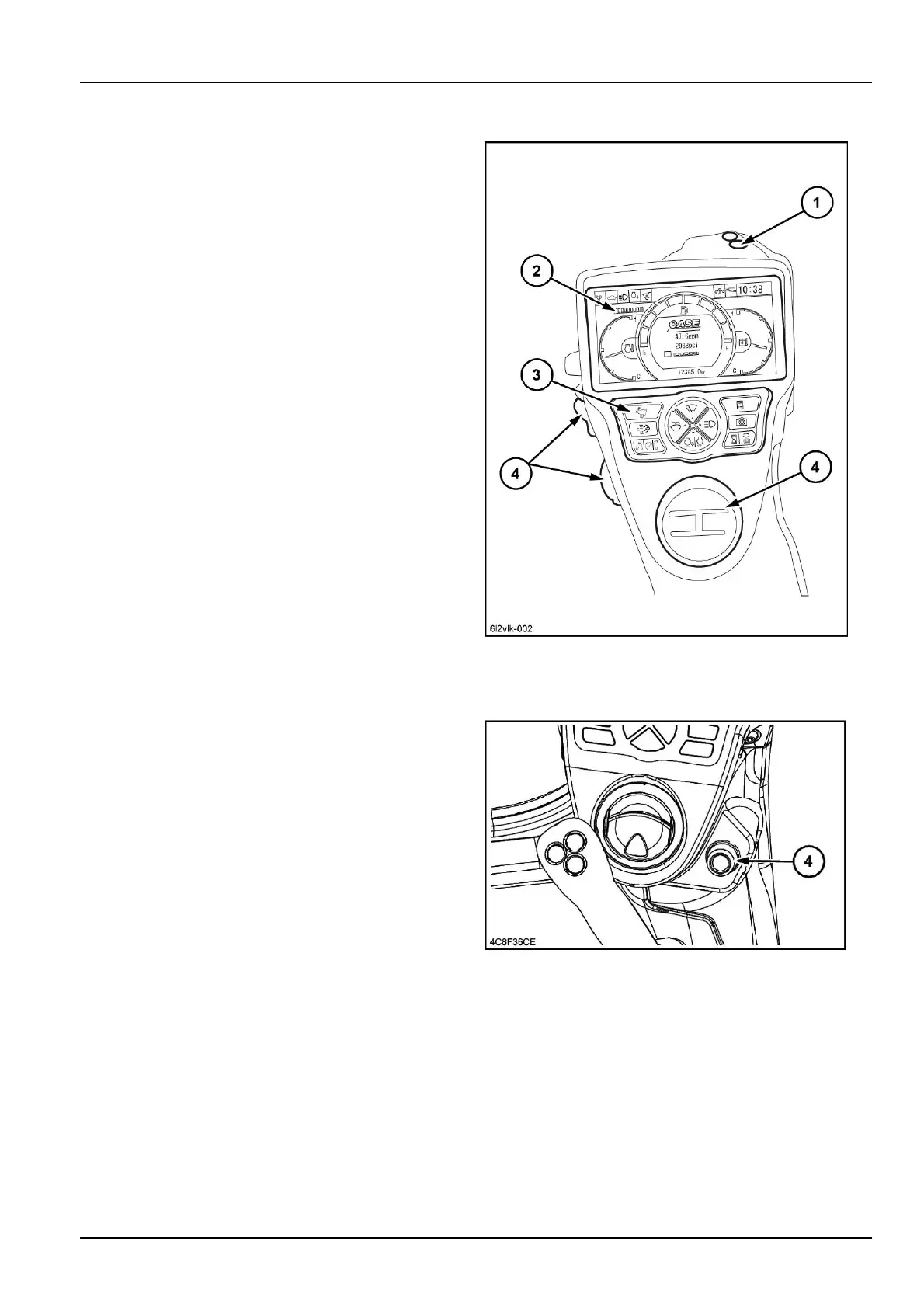

Frontright-handconsole
1.Temperatureprobe
Donotplaceobjectsontopofit.
2.Monitordisplay
Clock,FuelMeter,CoolantWaterThermometer,Hy-
draulicOilThermometer.
Displaysthefunctionselectionstatus.
Displaysthemachinestatus.
Displaysthebackmonitor.
Displaysthemachinemaintenancestatus.
3.Monitorswitch
Selectsthemachinestatus.Themonitordisplaycan
beswitched.
4.Airvents
Theairventscontrolthecirculationanddirectionofair
ow.Theairventsareopenedandcontrolledmanu-
ally.
ATTENTION:Theairventsmustalwaysbeopen
whentheairconditioningisinuse.
6L2VLK-0021
Cigarettelighterorelectricalsocket(24volts)
Theignitionkeybeinginthe“On”position,pressthen
releasethecigarettelighter(4).
ATTENTION:Donotkeepthecigarettelighterpushedin,
toavoiddamage.
NOTICE:Ifthecigarettelighterdoesnotmoveoutwards
30secondsafterpressingitin,pullitoutmanually,since
otherwisetheelectricalcircuitcouldbedamaged;consult
yourCASECONSTRUCTIONDealer.
NOTE:Oncethecigarettelighterhasbeenremovedfrom
itssocket,thelattercanbeusedasa24voltselectrical
socket.
NOTICE:Itisstrictlyprohibitedtoconnectdevicesofa
differentvoltage.
