Case CX235C SR - Operators Seat Adjustments

3-CONTROLS/INSTRUMENTS
OPERATOR'SSEAT
Airsuspensionseatadjustments
Inordertooperatethemachinecorrectlyandwithmaximumefciencyandcomfort,adjusttheseattosuittheweight
andsizeoftheoperator.
NOTE:Theadjustmentoftheseatcanonlybecarriedoutwhentheoperatorisseatedintheseat,theengineisshut
downandtheignitionkeyissetto"ACC"(accessorycurrentsupply).

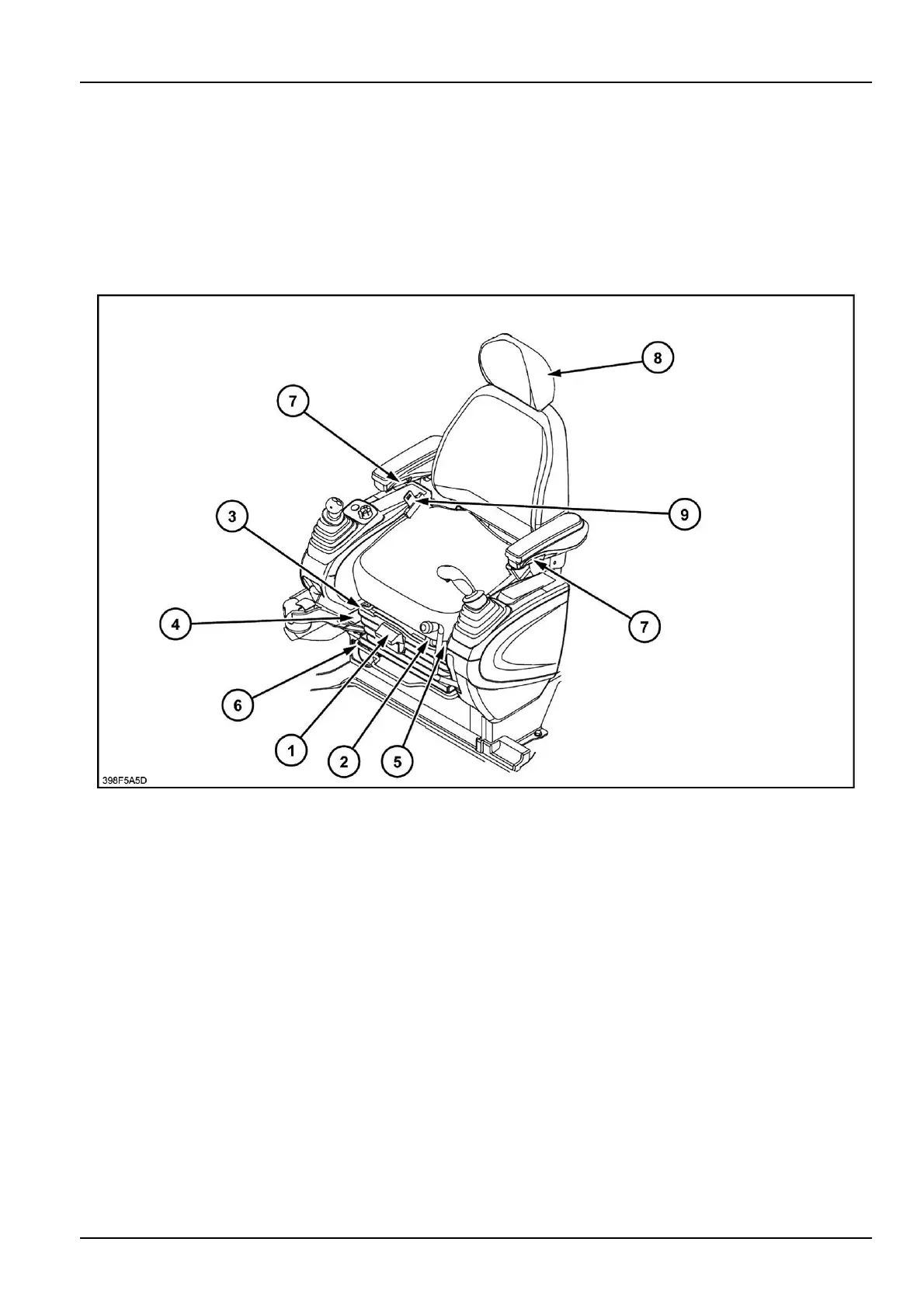

398F5A5D1
1.Combinedheightandweightadjustment
2.Weightadjustmentindicator
3.Fore/aftadjustment
4.Seatbackangleadjustment
5.Lumbarsupportadjustment
6.Seatandcontrolarmassemblyforeandaftadjust-
ment
7.Armrestangleadjustment
8.Headrestadjustment
9.Seatbelt
