Case CX235C SR - Description of Main Components

1-GENERALINFORMATION
Descriptionofthemaincomponents
TheCX235CSRisatotallyhydraulicexcavator.Itconsistsofanundercarriagettedwithtracksandaturntable
bearingwhichsupportstheupperstructureframe.Theupperstructureframesupportstheattachment,atthefrontend
ofthemachine,plustheengine,hydraulicsandcab.Whentheoperatorworksthecontrols,theengine-drivenpump
delivershydraulicuidtothecontrolvalves.Thecontrolvalvesdistributethehydraulicuidtothevariouscylinders
andhydraulicmotorsemployed.Acoolingsystemmaintainsthehydraulicuidatnormaloperatingtemperature.

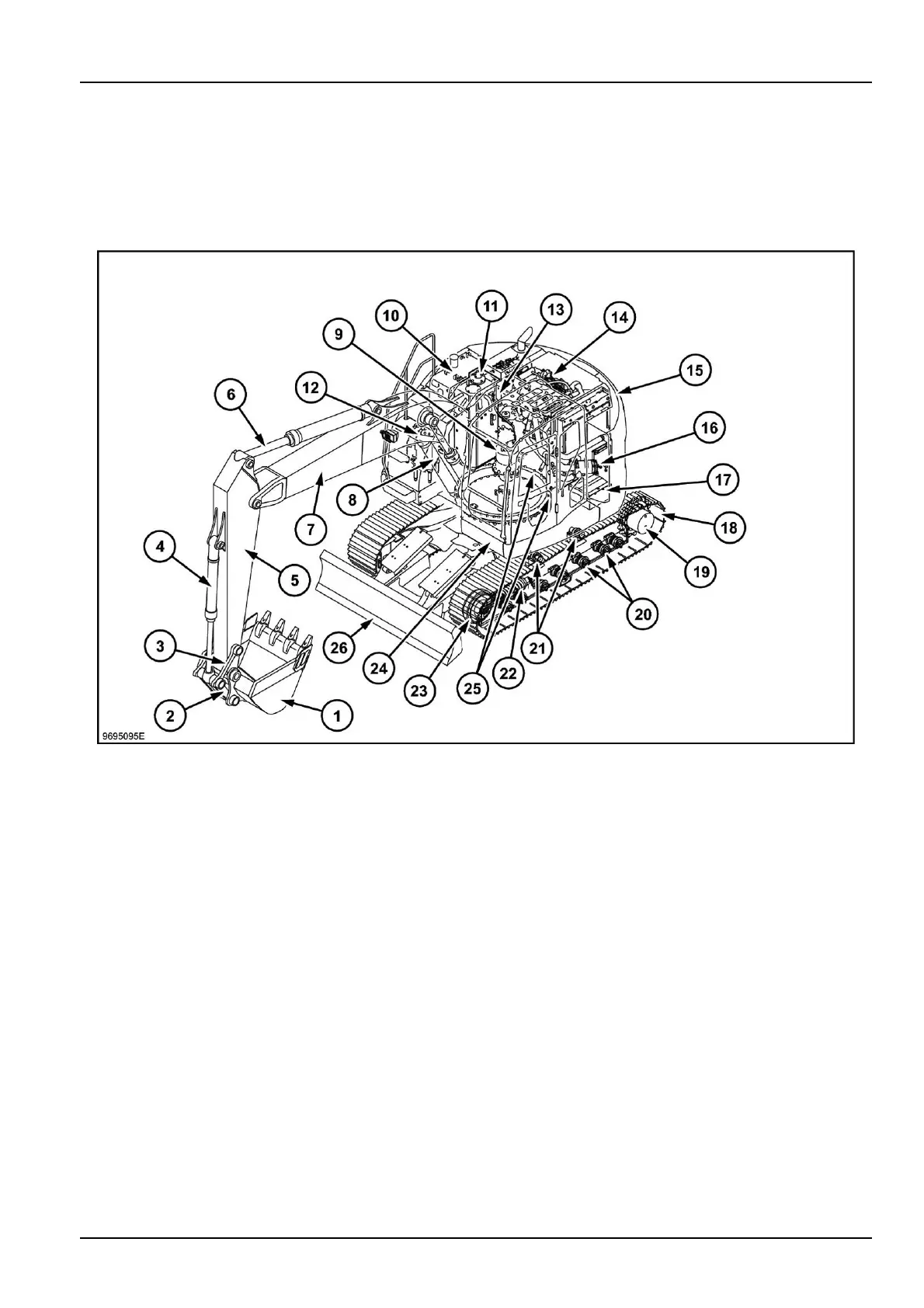

9695095E1
1.Backhoebucket
2.Connectingrod
3.Yokes
4.Backhoebucketcylinder
5.Arm
6.Armcylinder
7.Boom
8.Boomcylinders
9.Swingreductiongear
10.Fueltank
11.Hydraulicreservoir
12.Controlvalve
13.Hydraulicpump
14.Enginecompartment
15.Counterweight
16.Airlter
17.Batteries
18.Tracks
19.Travelreductiongears
20.Lowerrollers
21.Upperrollers
22.T ensionshockabsorbers
23.Idlerwheels
24.Cab/Operator'scompartment
25.Swingcomponents
26.Dozerblade(ifequipped)
1-11
