Case CX235C SR - Left-Hand Side Controls

3-CONTROLS/INSTRUMENTS
LEFT-HANDSIDECONTROLS

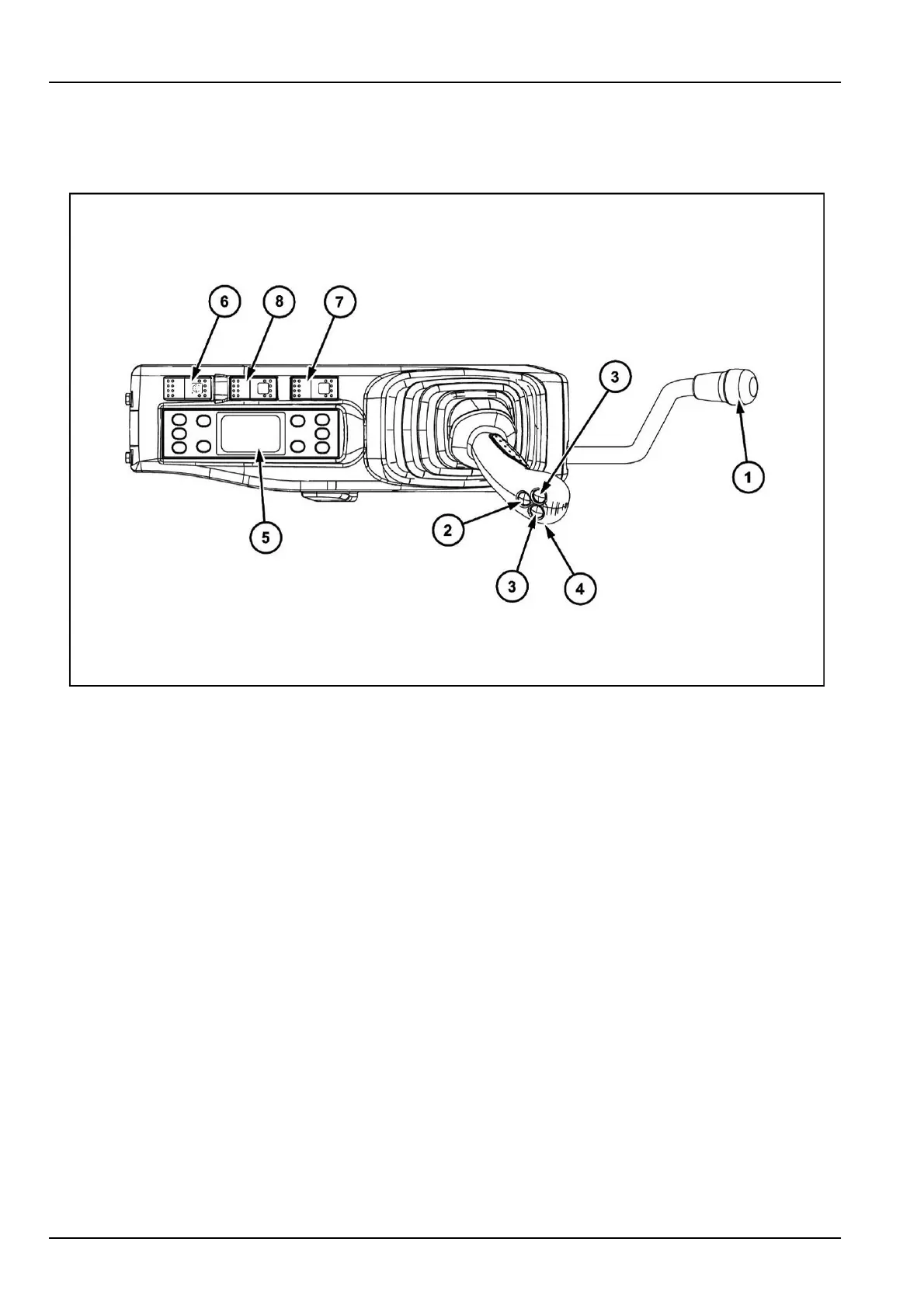

Left-handcontrolarm
714DB4B6B1
1.Functioncancellationlever
Theshapeofthefunctioncancellationleverwasde-
signedtopreventtheoperatorfromleavingtheop-
erator’scompartmentwithouthavingraisedthelever
beforehand.
2.Horn
Tosoundthehorn,presstheendoftheleft-handcon-
trollever.
NOTICE:Alwayssoundthehornbeforeoperatingthe
machine.
3.Optioncontrol(ifequipped)
4.Cabradiomutecontrol
Locatedbelowthecontrollever,thiscontrolisused
tomutethesoundwithouthavingtooperatethecab
radio.
Pressandreleasethecontroltomutethesound.
Pressonceagainonthecontrolandrelease,the
soundisrestored.
NOTE:Withtheenginestopped,ifthesoundismuted,
itwillstillbeactivewhentheengineisrestarted.
5.Heating,ventilationorairconditioningcontrol(Refer
topage3-47)
6.Emergencyshutdownswitch
Thiscontrolenablestheenginetobeshutdownin
emergencyorwhenitisnotpossibletoshutitdown
bymeansoftheignitionkey.
Pressonthefrontofthecontrol,theenginestops,the
audiblewarningdevicesounds,thecontrolindicator
lampcomesonandthemessage"Enginestop"isdis-
played,refertopage3-18.
Tostarttheengineagain,pressonthebackofthe
controloncemoreandthenturntheignitionkeyto
starttheengine.
NOTICE:Thisswitchshouldonlybeusedincaseof
anemergency.
7.Quickcouplerlockingandunlockingcontrolswitch
(optional)
(Refertopage3-51).
8.Freeswingswitch(optional)
Theswitchtochoosetheswingstoppingcondition.
•
Whentheengineisstarted,itisinthe“Off”position.
•
Whenselectedthereinnoswingposition.
NOTE:Whenitis“On”andusedonaslope,theswing
becomeshardtostop.(Theswingparkingbrakedoes
notworkautomatically).Iftheswitchisturned“On”when
onaslope,themachinemaystarttomovebecausethe
swingbrakeisreleased.
3-44
