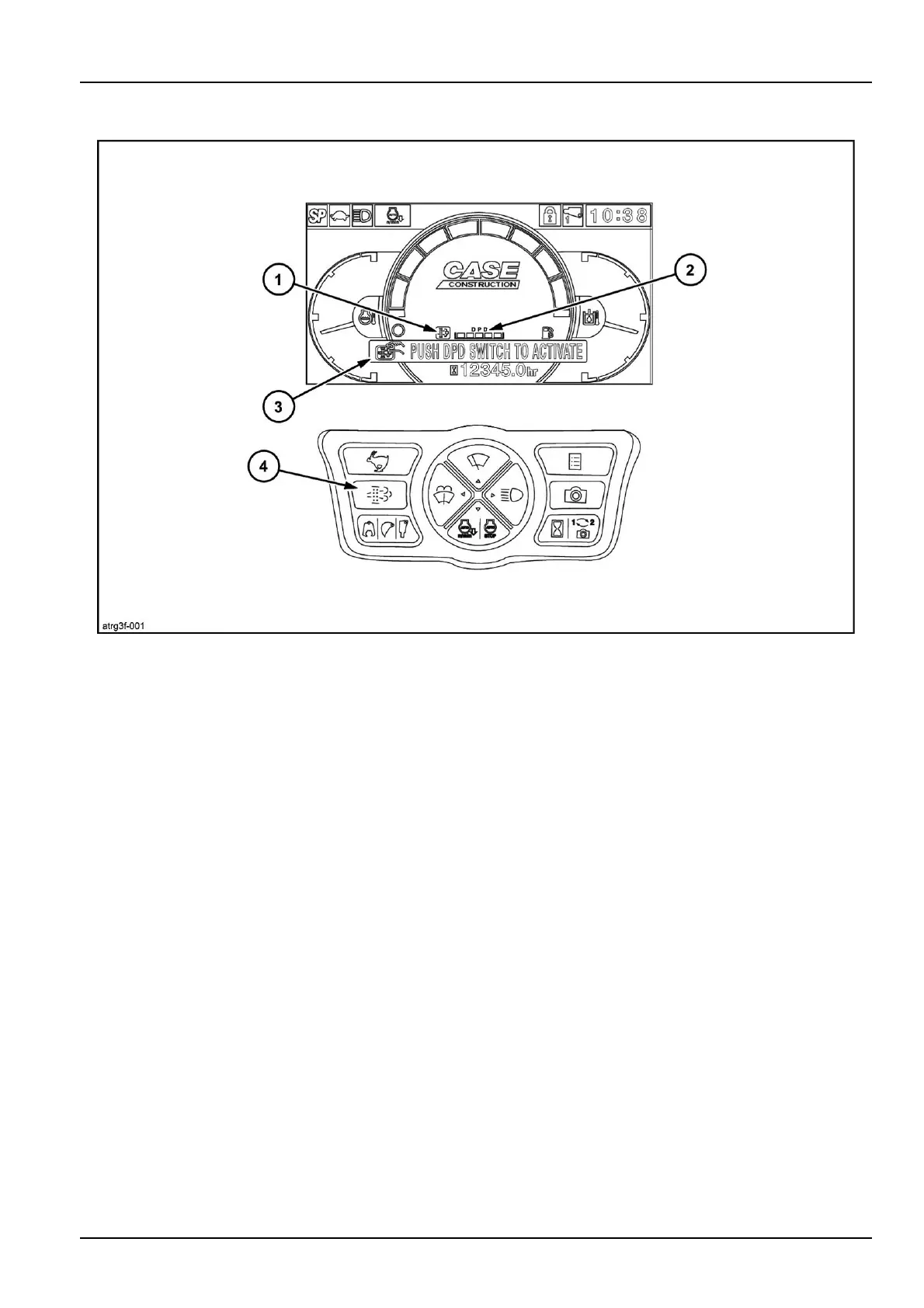

3-CONTROLS/INSTRUMENTS
DieselParticulateDiffuser
ATRG3F-0011
1.Lamp
Normaloperation:Off
Automaticregeneration:Green
Manualregenerationrequest:Blinkingorange
Manualregeneration:Orange
DPDtrouble:Red
2.Gauge
Normaloperation:Collectedparticulatematteramountisindicated.
Inautomaticregeneration:Remainingregenerationtimeisdisplayed.
Inmanualregeneration:Remainingregenerationtimeisdisplayed.
3.Message
Displayedduringautomaticregeneration,manualregenerationandwhenamanualregenerationrequestisissued.
4.Switch
Usedtostartmanualregeneration.
3-37
