CastoTIG 1702/
2202 AC/DC
control panel

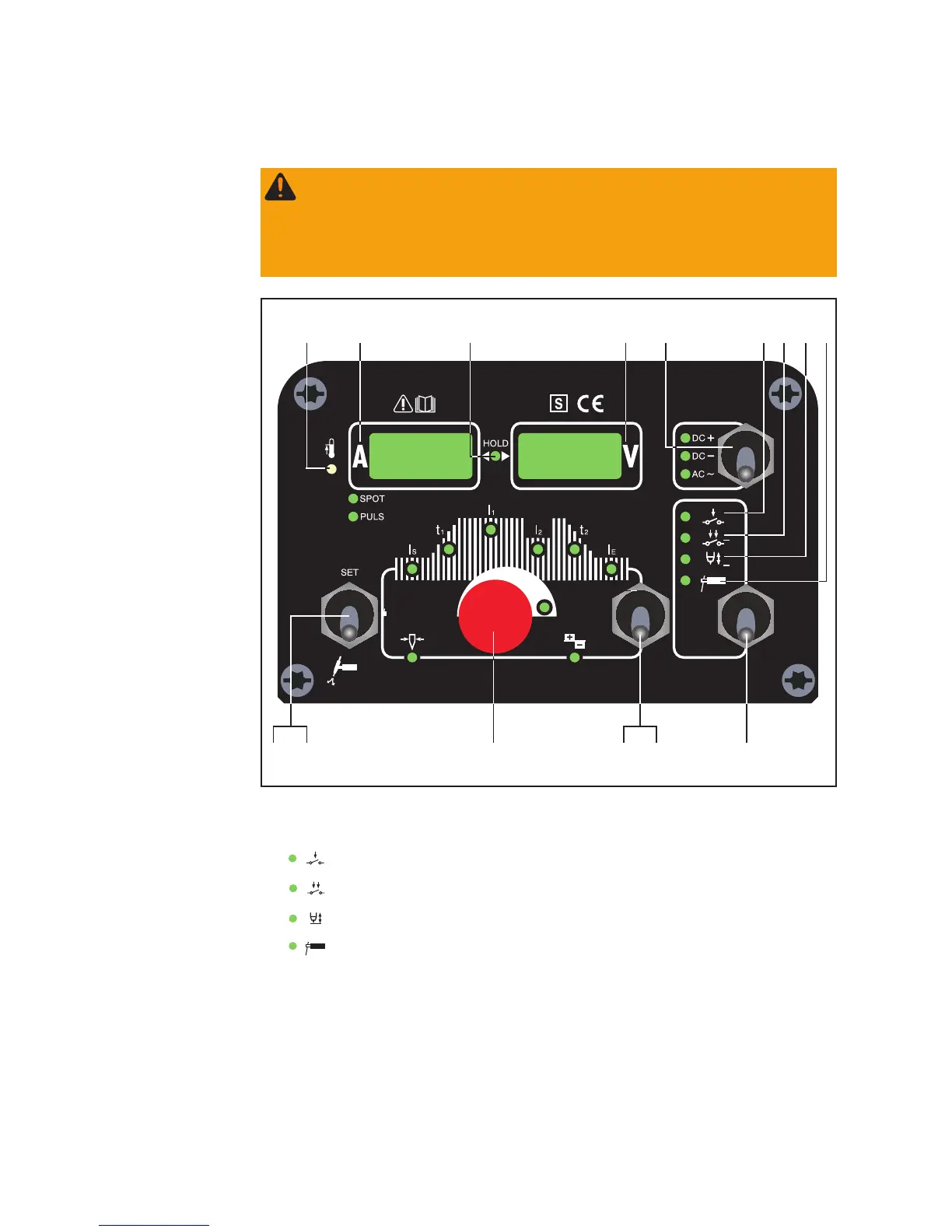

Fig.3 CastoTIG 1702/2202 AC/DC control panel
(6)(15) (12)(10)
(2) (3) (5)(4)
(1)(9)(14)(13) (7)
(1) Mode button ... for selecting the operating mode
(2) 2-step mode
(3) 4-step mode
(4) Contact ignition (Lift-arc)
(5) Rod electrode (MMA) welding
Important! If you select the “Rod electrode (MMA) welding” mode (5), the welding
voltage will only be available after a 3-second time-lag.
(8)
(11)
In this section, the control panels of the CastoTIG 1702/2202 AC/DC and CastoTIG
2201 DC power sources will be dealt with separately.
General remarks
Warning! Operating the equipment incorrectly can cause serious injury and
damage. Do not use the functions described here until you have read and com-
pletely understood all of the following documents:
- these Operating Instructions
- all "Operating Instructions" for the system components, especially the
"Safety rules"
