Castolin Eutectic CastoTIG - Connections and System Add-ons

17
CastoTIG 1702/
2202 AC/DC
(16) - welding torch current socket ... for
- connecting the welding cable of the TIG welding torch
- connecting the electrode (or grounding/earthing) cable in rod electrode (MMA)
welding, depending on the type of electrode being used
(17) - ground (earthing) socket with bayonet latch ... dient zum
- connecting the grounding (earthing) cable in TIG welding
- connecting the electrode (or grounding/earthing) cable in rod electrode (MMA)
welding, depending on the type of electrode being used
(18) Remote control connection socket ... standardised connection socket for system
add-ons (e.g. remote controls)
(19) Torch control connection socket ... for connecting the control plug of a conventio-
nal welding torch
(20) Mains switch ... for switching the power source on and off
(21) Mains cable with strain-relief device
(22) Shielding gas connection socket
(23) Gas “quick-connector” ... for connecting up the torch shielding-gas hose
Rear view
Front view
(17) (16)
(18) (19)
(21)
(20)(22)

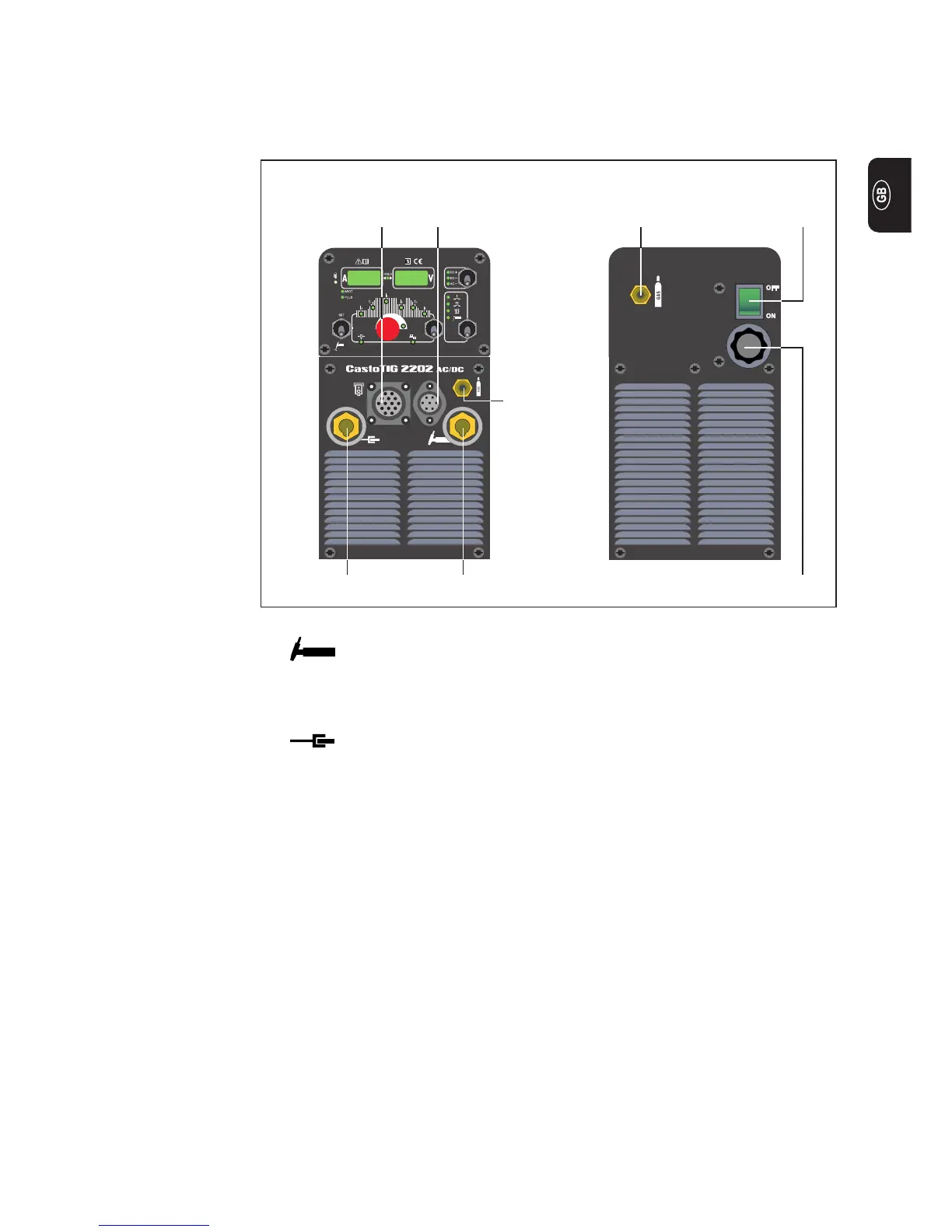

Fig.5 Connections and switches on CastoTIG 2202 AC/DC power source
(23)
Connections, switches and system add-ons
