Warning! Operating the equipment incorrectly can cause serious injury and
damage. Do not use the functions described here until you have read and com-
pletely understood all of the following documents:
- these Operating Instructions
- all "Operating Instructions" for the system components, especially the
"Safety rules"
CastoTIG 2201
DC control panel

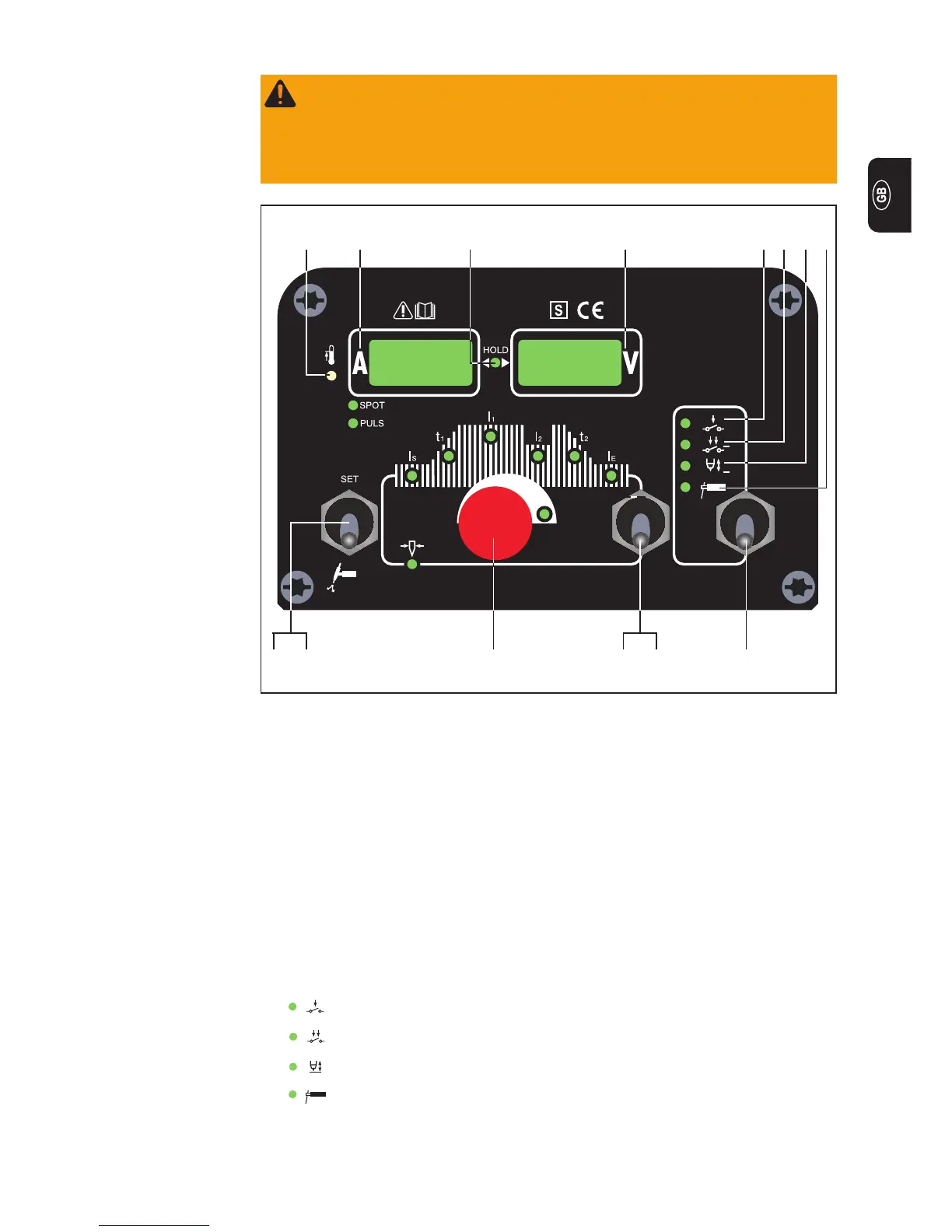

Fig.4 CastoTIG 2201 DC control panel
On the CastoTIG 2201 DC power source, the TIG-DC and rod electrode DC welding
processes are available. The following processes and functions are not available and
cannot be retro-fitted:
- TIG-AC welding
- rod-electrode AC welding
- switchover facility between the rod electrode DC- and rod electrode DC+ welding
processes
Important! To change over from the rod electrode DC- welding process to the rod
electrode DC+ welding process on the CastoTIG 2201 DC power source, reconnect the
electrode holder and the earthing (grounding) cable to the opposite welding sockets (i.e.
swap them over - see the section headed “Rod electrode (MMA) welding”).
(1) Mode button ... for selecting the operating mode:
(15) (12)(10)
(2) (3) (5)(4)
(1)(9)(14)(13) (7) (8)
(11)
(2) 2-step mode
(3) 4-step mode
(4) Contact ignition (Lift-arc)
(5) Rod electrode (MMA) welding
Important! If you select the “Rod electrode (MMA) welding” mode (5), the welding
voltage will only be available after a 3-second time-lag.
