12
(14) Gas-test button ... for setting the required gas-flow rate on the pressure regulator.
After you press this button, gas will flow out for 30 s. Press the button again to stop
the gas test-flow before the 30 seconds are up.
(15) Overtemperature indicator ... lights up if the power source overheats (e.g. becau-
se the duty cycle has been exceeded). For more information on this, see the “Trou-
bleshooting” section.

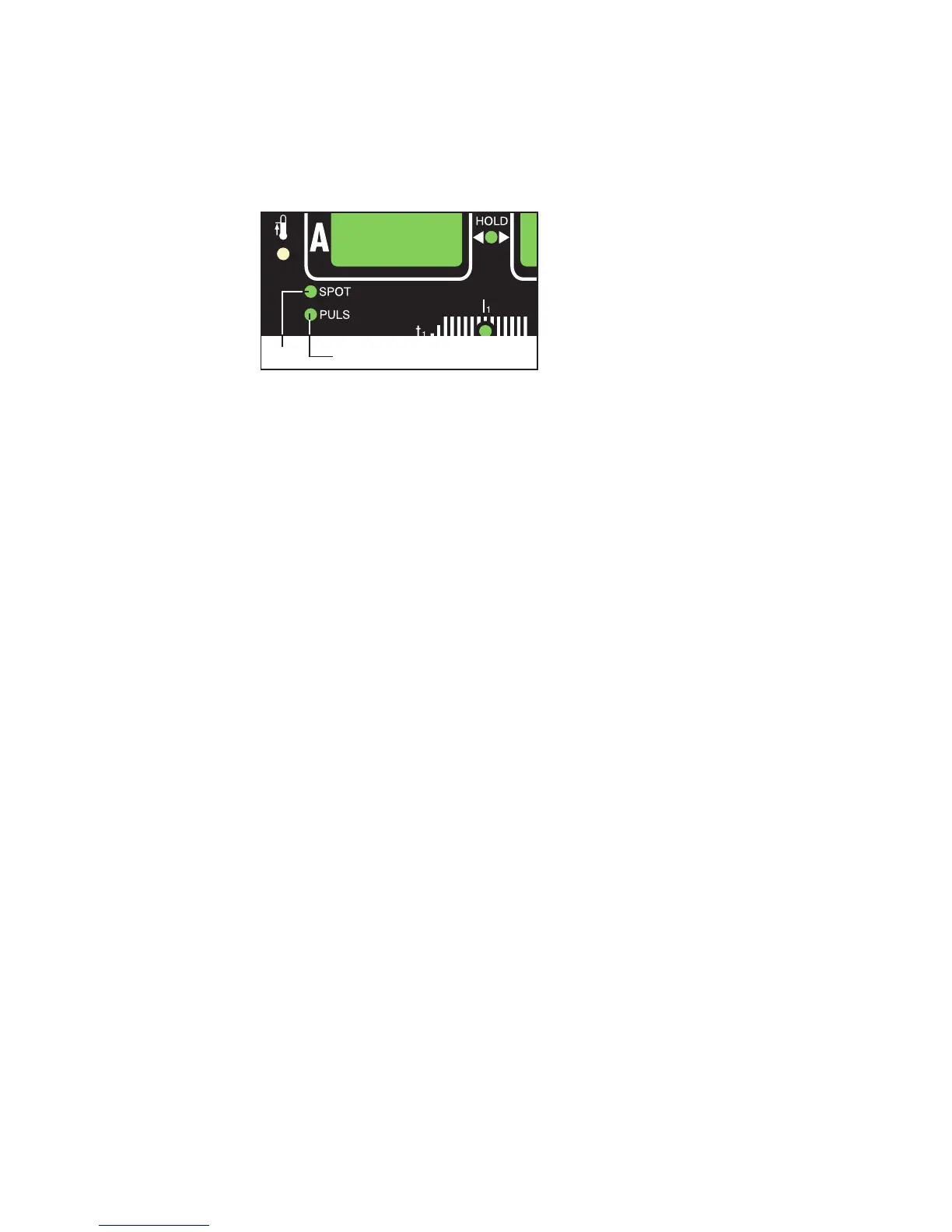

Fig.3b Additional indicators
(38) Pulsing is activated ... Set-up parameter “F-P” has been set to a certain pulsing
frequency
(39) Spot welding is activated ... Set-up parameter “SPt” has been set to a certain spot-
welding time
The indicators shown in Fig.3b glow for as
long as the respective functions remain
activated. The following description will
give you an overview of these functions. In
some cases, they will be described in even
greater detail in the in-depth sections
dealing with the function or parameter in
question, to be found in:
- The set-up menu: Level 1
- The set-up menu: Level 2
- Special functions
(39) (38)
CastoTIG 1702/
2202 AC/DC
control panel
(continued)
