CDVI DIGIWAY PLUS - Mechanic Installation - Sliding Arm Version

Installation
Sliding arm version
First of all, check the stability of the door which has to be motorized, verifying that regularity of the motion in both
directions ( open and close ) is without any friction from the complete close to the complete open status. If this is
not the case, make necessary improvements to the structure. Remove any manually operated lock (eg. requiring a
physical lowering of the handle to open the door).
Digiway plus does not need a door-stop tted to complete the open cycle. Make sure any closing device is completely
removed including hydraulic devices, turn to free or minimum is not sufcient.
This type of installation is addressed to inswing doors.
1) Identify the dimensions of the motor, locate the xing position, the holes for the cables and the 6 xing holes making use
of the mounting template provided;
2) Check the feasibility of the guide xing, respecting the distance to the motor;
3) Make 6 holes diameter Ø 8 mm and insert the 6 special plugs provided ;
4) Fix the plate to the wall using the special screws provided;
5) Fix the motor to the mounting plate with the screws M6x14 provided;
6) Plug-in the sliding arm on the motor shaft and screw the xing screw M6;
7) Slide-in the sliding block into the guide;
8) Offer the guide to the door and mark the 4 xing holes;
9) Remove the sliding block and x the guide to the door by using the 4 special screws provided;
10) Slide-in completely the white strip on the guide;
11) Slide-in the sliding block into the guide and insert the two lateral plugs;
12) Check full free movement whilst in free mode.
13) Make all the electrical connections;
14) Apply power;
15) Follow the procedure : «Getting started»;
16) Connect the Ground wire to the cover terminal and x the cover.

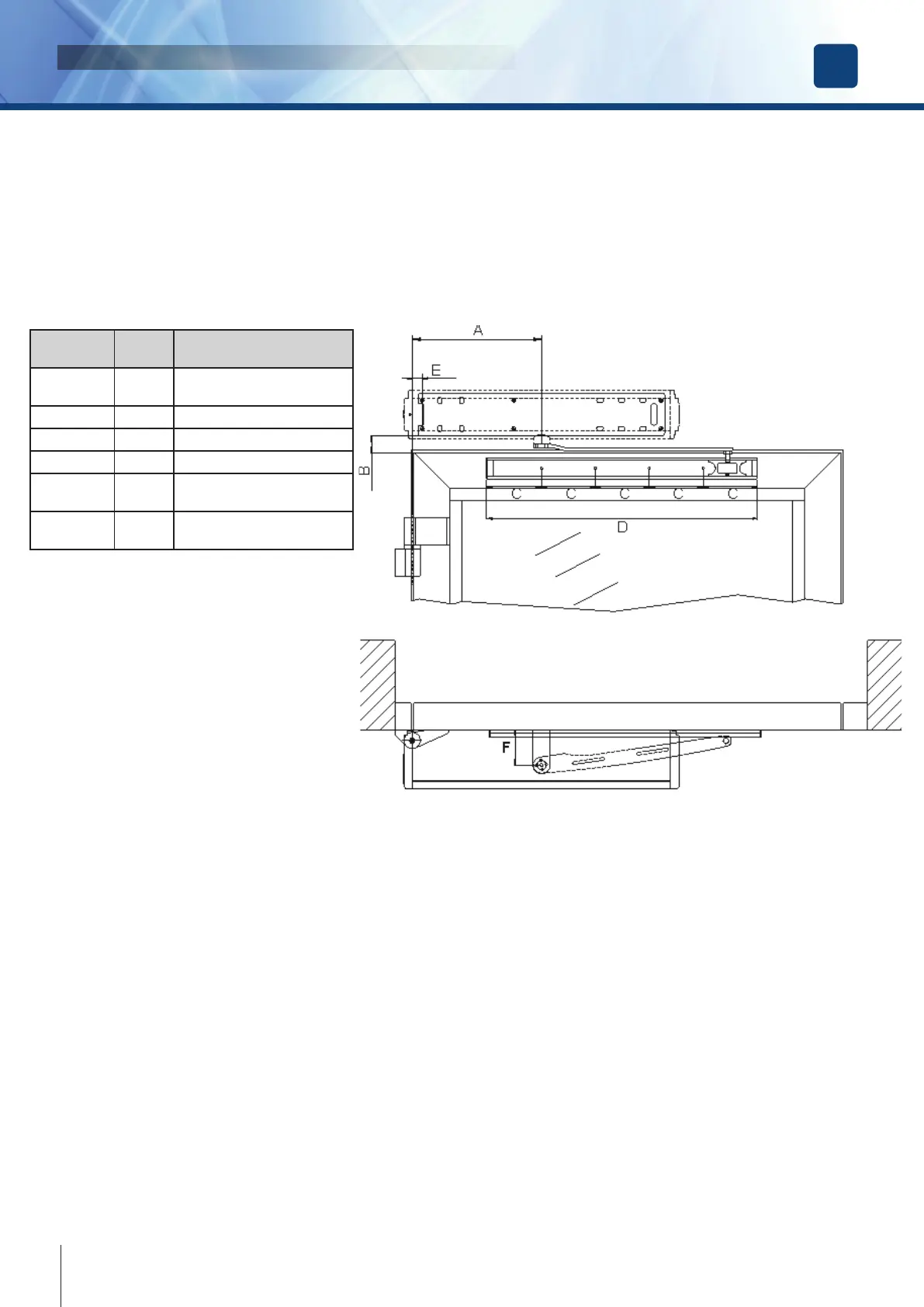

Parameter
Value
(mm)
Description
A 240
Door hinge – motor axis
distance
B 35
Backplate – guide distance
C 100
Motor axis - guide edge
D 500
Guide width
E 18,5
Distance hinges - back-
plate hole
F 70,5
Motor axis - vertical plane
distance
