CDVI DIGIWAY PLUS - Overall Dimensions and Mounting Guide

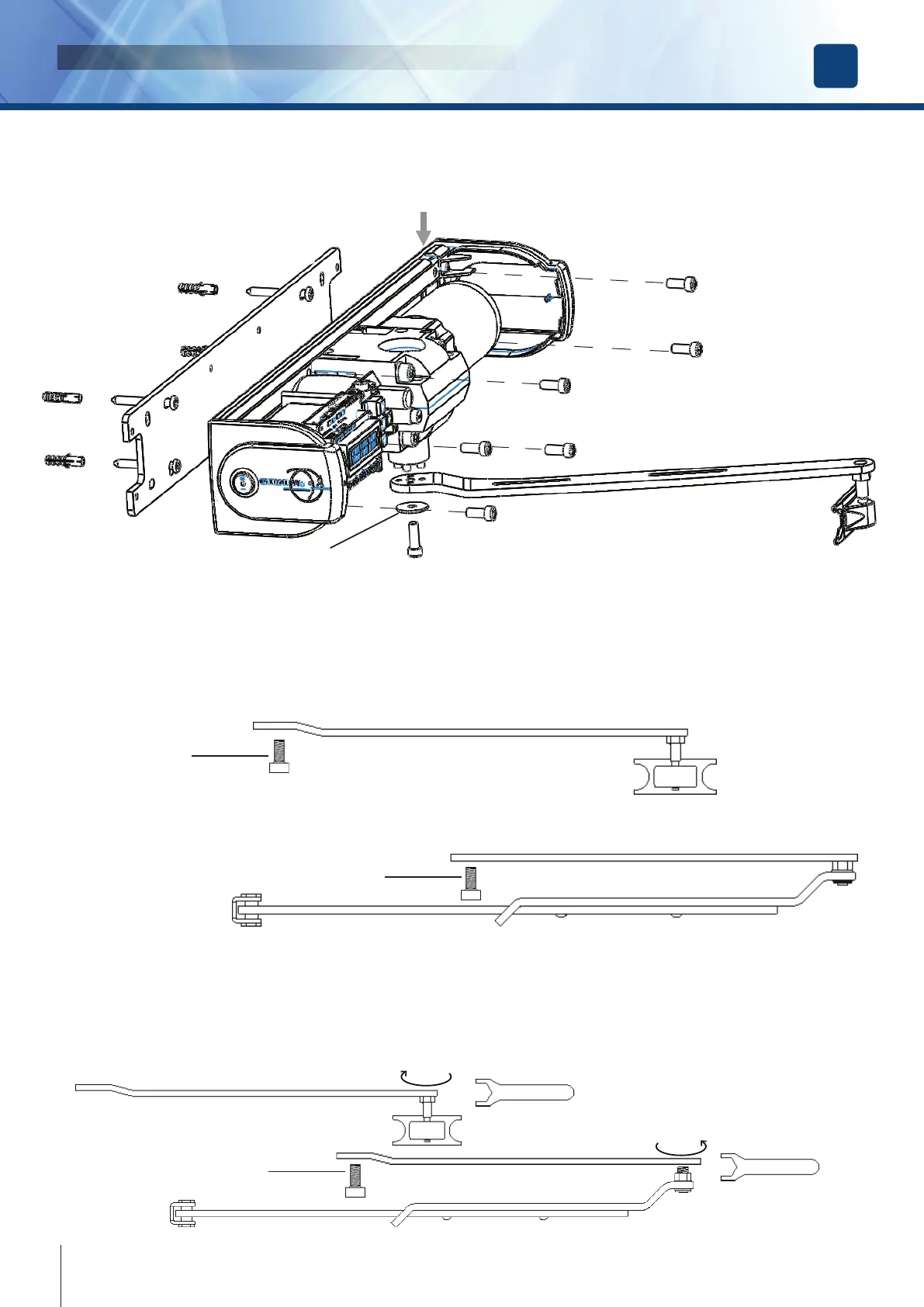

Mounting diagram
Cover lift point
8
cdvi.com
cdvigroup.com
Accessories
Sliding arm
Articulated arm
Universal arm
The Universal arm kit allows to realize both the arms. The kit is composed by a complete sliding arm, with the
guide and by an adjustable forearm with the door bracket. To transform the sliding arm into the articulated arm
unscrew the sliding block making use of a monkey spanner dim 13 (not provided ) and screw on the hole M10X1 of
the sliding arm the screw of the articulation located on the adjustable forearm.
Turn clockwise
Turn anti-clockwise
Screw M6x14
provided
Screw M6x14
provided
Screw M6x14
provided
DIGIWAY PLUS
INSTALLATION MANUAL
EN
M6x14
M6x14
M6x14 Plugs SX8
Screws for plugs SX8
Washer
