CDVI DIGIWAY PLUS - Technical Specifications

9
cdvi.com
cdvigroup.com
Technical specications
• General specications
Power supply: ......................................................... 230 Vac - 50 Hz
Motor torque: ........................................................... 15 Nm
Max power: .............................................................. 50 W
Operating class:....................................................... 5 ( heavy duty )
Battery: .................................................................... 12 Vdc 1,3 Ah
Overall dimensions : ................................................ 511 x 90 x 110 mm
Weight: .................................................................... 5 Kg
Operating temperature: ........................................... -10°C ÷ +55°C
IP Grade: ................................................................. IP40
Opening / closing time: ............................................ 3 ÷ 15 sec.
Pause time:.............................................................. 3 ÷ 90 sec.
Power for auxiliary devices: ..................................... 13,5 Vdc / 500 mA [ max ]
Power for electrolock: ............................................. 12 Vdc / 1A [ max ]
Electrolock output relay: .......................................... ( C-NO-NC) 10A / 12V
Open door output relay ............................................ ( C-NO ) - 24 VA
Electrolock hold time: .............................................. Adjustable [ 0,1 ÷ 5 min ]
Power failure autonomy: .......................................... 270 cycles / 16 hours
Transmitters security protocol: ................................ Keeloq® Hopping Code
RX memory: ............................................................. 50 transmitters
Integrated receiver main specications: .................. 433,92 MHz ASK / -107 dBm
Fire voltage input: .................................................... 24 ÷ 48 Vac/dc

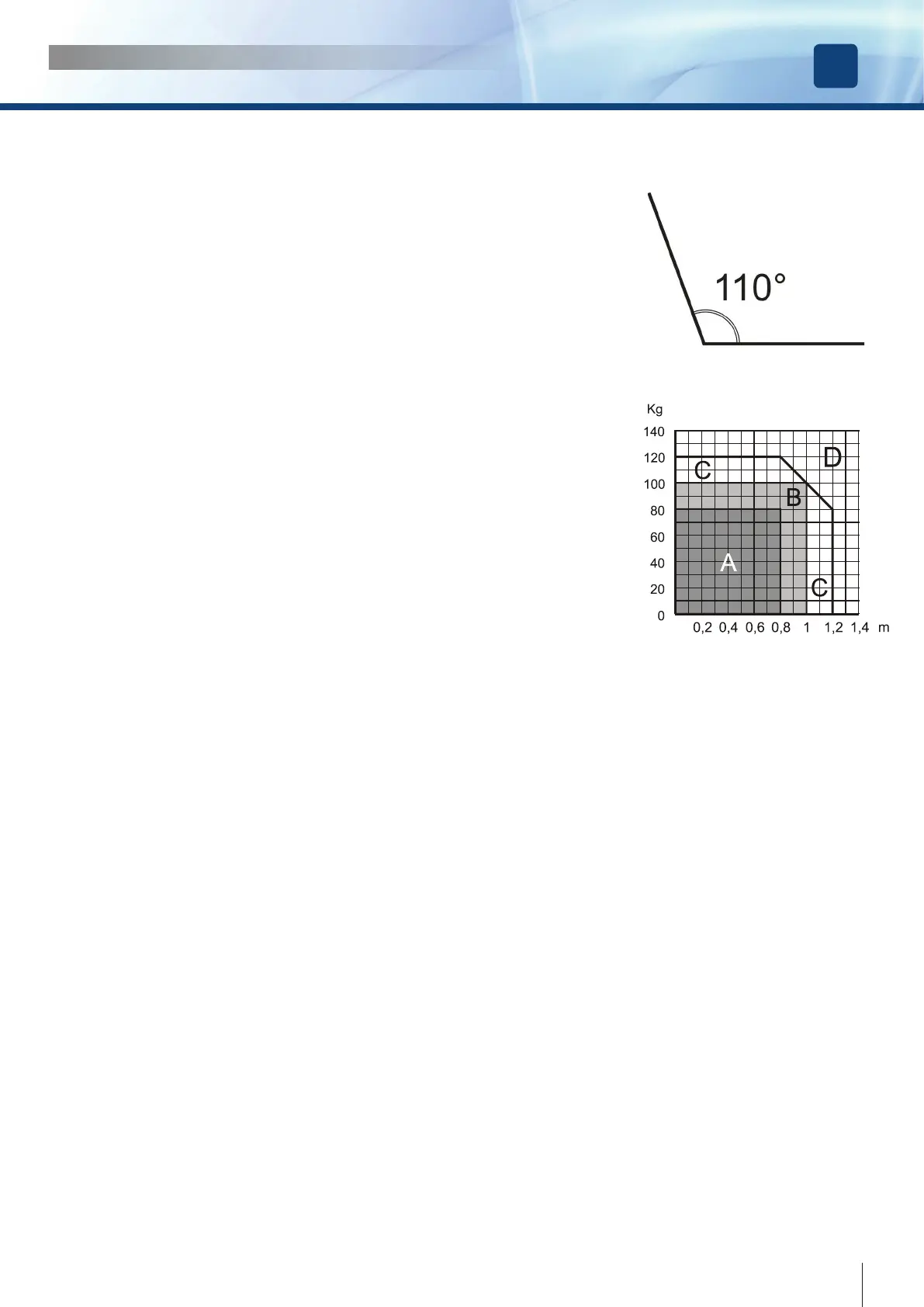

• Use conditions
• Electronic card specications
• Main features
Zone A : Very intense use : 600 cycles / day
Zone B : Intense use : 200-300 cycles / day
Zone C : Use at reduced speed
Zone D : Not allowed
Operating modes: Automatic ( I ) - Door free ( 0 ) - Door always open (II)
Inputs: Re-open photocells ( NC)
Stop photocells ( NC )
Door Alway open ( NO )
Door free ( NO )
External Radar ( NO )
Internal Radar ( NO )
Day / Night selection ( NO )
Open / Close command ( NO )
Fire alarm voltage ( +V, -V) [optoisolated ]
Operating modes: Fully automatic, Always open, Door free;
Operating with single door, double door, with or without leaf overlapping;
Guided procedure for door travel limits characterization;
Motor torque in opening and closing adjustable;
Remote controls memorization and management;
Slow motion approaching the limits;
Push & Go / Pull & Go function;
Pause Time, Max Speed, Torque, Velocity adjustable;
Opening Jolt fully adjustable;
Status bicolor LED;
Electrolock hold time and torque adjustable;
Opening Jolt parameters adjustable;
Spring mode ( door always free, automatic closing );
Stop photocells range adjustable;
“Fire mode”;
Night / day mode;
Door open output relay.
Leaf width
Leaf weight
Max Door opening angle
Outputs: Door open contact ( C-NO )
External devices power 13,5 Vdc / 500 mA
Electrolock output contacts ( C-NO-NC )
Electrolock power 12 Vdc / 1 A
Test for safety devices ( FTC- FTC-S)
INSTALLATION MANUAL
EN
DIGIWAY PLUS
