CDVI DIGIWAY PLUS - Identifying Product and Parts

Identifying the product and its parts
Digiway type DWPx102xx is a indoor operator for swing doors, with integrated electronic controller and radio receiver.
The opening and closing motion is electromechanical with backup battery which assures the operation in cases of power
failure. The following versions are available:

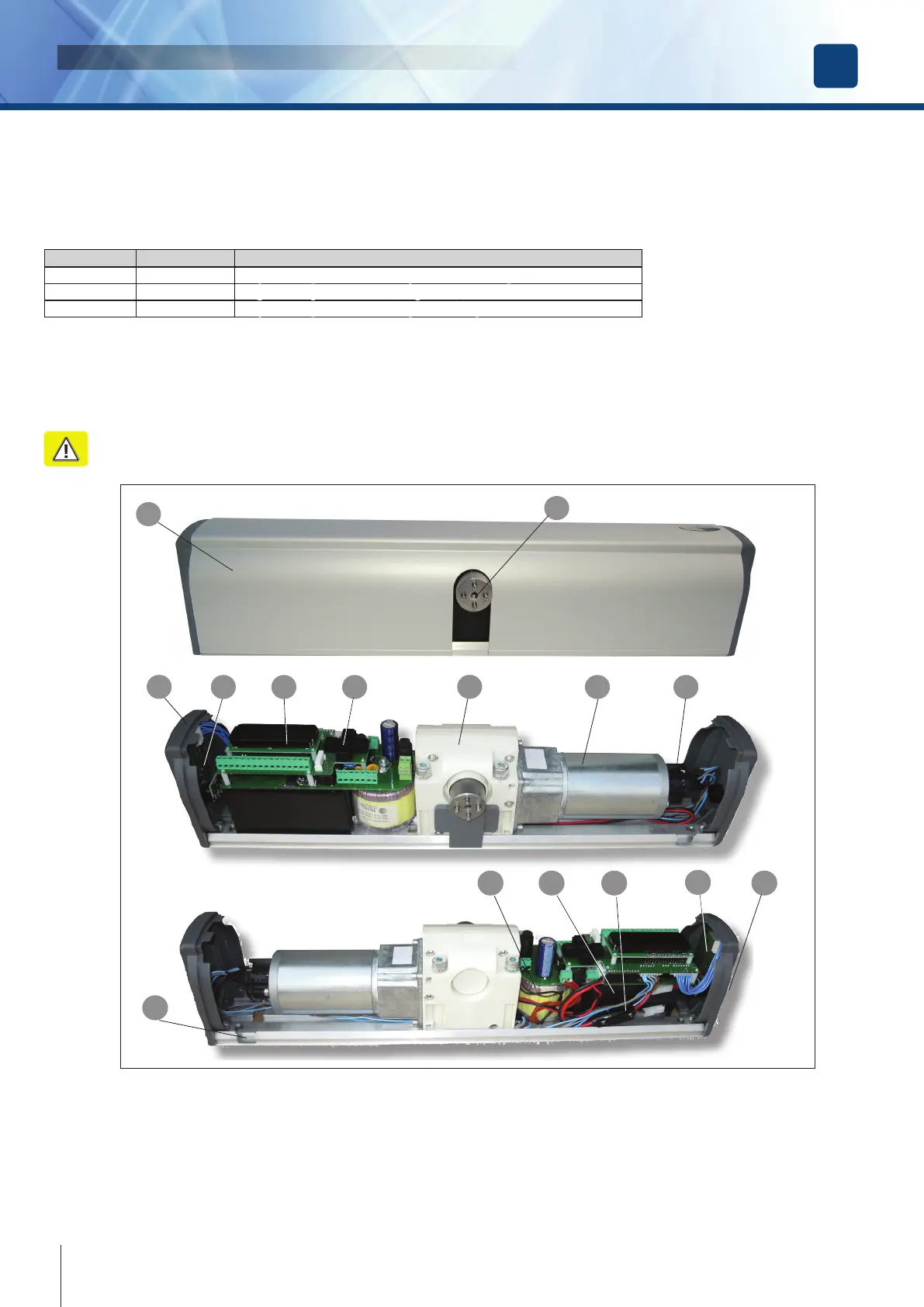

Legend
1 - Anodized aluminium cover 8 - Motoriductor
2 - Motor shaft 9 - Encoder
3 - Status led LP 10 - Slot for cover opening
4 - Receiver Card 11 - Toroidal transformer
5 - Display LCD 12 - Backup battery
6 - 5-buttons keyboard 13 - Battery cable with protection fuse
7 - Gear box 14 - Jumper for external selector exclusion
15 - Operating mode selector
P/N Reference Description
F0543000093 DWPS102SCD Single door operator for inswing doors with sliding arm
F0543000094 DWPS102ACD Single door operator for outswing doors with articulated arm
F0543000095 DWPS102UCD
Single door operator for inswing or outswing doors with universal arm
7
8 95 6
3
1
2
4
The operator is suitable for swing doors with max width of 1,2 m or max weight of 120 Kg ( refer to diagram on page 7).
At the max speed the door can open and close within 3 sec. ( 90°), depending on door weight and dimensions .
See the technical specications in the following pages of this manual.
6
cdvi.com
cdvigroup.com
Warning : the operator is suitable only for top-jamb xing. Door leaf xing is not allowed.
11
10
12 13 15
14
