CDVI DIGIWAY PLUS - Wiring Diagram and Connections

13
cdvi.com
cdvigroup.com

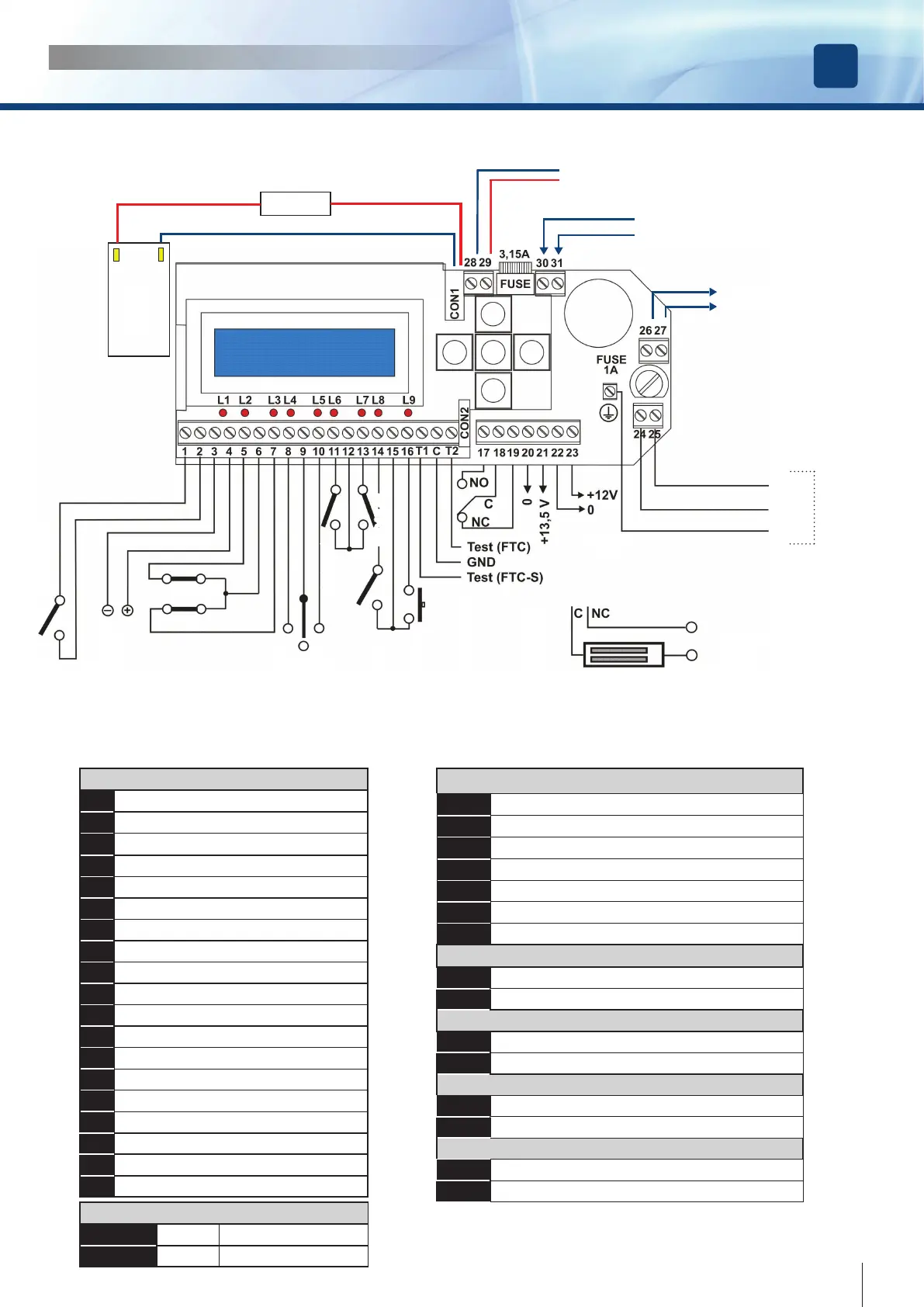

Connections detail
Electrical connections
19-way terminal block
1 Output C Open door relay
2 Output NO Open door relay
3 Input V- Fire alarm voltage
4 Input V+ Fire alarm voltage
5 Safety Input NC Stop Photocells [FTC-S]
6 Safety Input C Photocells
7 Safety Input NC Re-open Photocells [FTC]
8 Input NO switch pos. I
9 Input C switch pos. 0
10 Input NO switch pos. II
11 Input NA Radar external
12 Input C Radar
13
Input NO Radar internal
14
Input NO Day/Night switch
15
Input common
16
Input NO push-button open/close/stop
T1
Output (+12) Test FTC-S
C
Common test photocells ( GND)
T2
Output (+12) Test FTC
7-way terminal block
17 Output NO relay electrolock
18 Output C relay electrolock
19 Output NC relay electrolock
20 Output 0V external devices power
21 Output 13,5 Vdc external devices power
22 Output 0V electrolock power
23 Output 12 Vdc electrolock power
2-way terminal block
24 Input Line 230 Vac
25 Input Neutral 230 Vac
2-way terminal block
26 Output 230 Vac to internal toroidal transformer
27 Output 230 Vac to internal toroidal transformer
2-way terminal block
28 Input Motor BLACK cable
29 Input Motor RED cable
2-way terminal block
30 Input from internal toroidal transformer
31 Input from internal toroidal transformer
Battery
+
-
FUSE 5A
to toroidal
transformer
to the motor
Door Open
Relay Output
INPUT Fire
voltage
FTC-S (*)
FTC (*)
Automatic
Door free
Door open
RADAR Int.
RADAR Ext.
Day/Night
Open/Close
Magnet
External
magnet
supply
Supply radars
& photocells
Electrolock
Supply
Electrolock relay
from toroidal transformer
Door open relay
Door Status Closed Opening/Open/Closing
Relay OFF ON
(*) See next page for the
connection
N
L
PE
230 Vac
INSTALLATION MANUAL
EN
DIGIWAY PLUS
