ELECTRONIC INDUCTANCE
WELDING VOLTAGE
Example: ELECTRONIC INDUCTANCE
Press the PARAMETER SELECTION - V key (T4) until the LED
that corresponds to the ELECTRONIC INDUCTANCE switches
on. Turn the ENCODER - V knob (E2) to change the value shown
on the PARAMETER DISPLAY - V screen (D2).
5 - WELDING

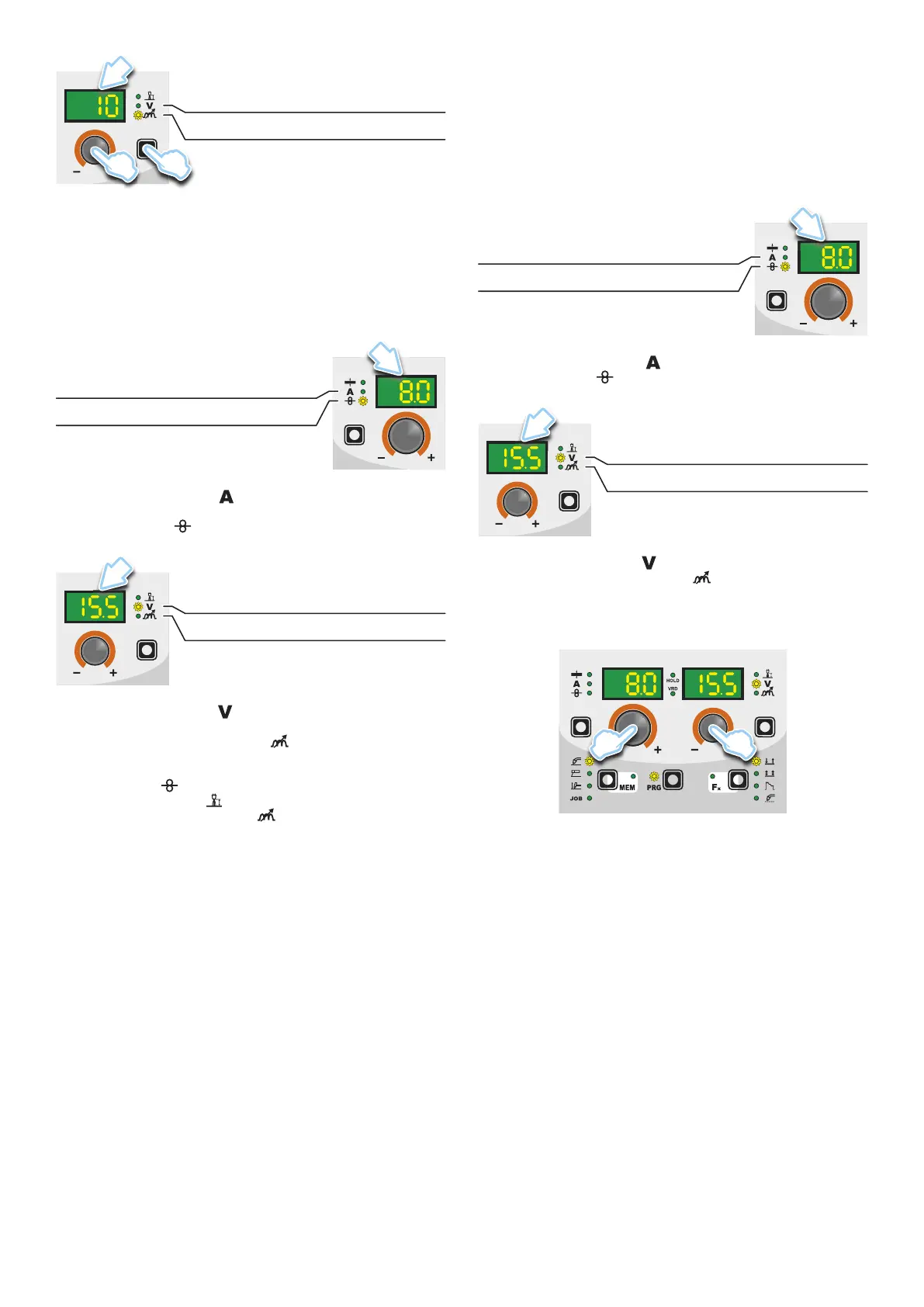

During the welding the display shows:
• PARAMETER DISPLAY screen - A (D1)
D1
WELDING CURRENT
WIRE SPEED
-
WELDING CURRENT( ): the measured value of the current
of what is being welded.
- WIRE SPEED (
): the value previously set.
• PARAMETER DISPLAY screen - V (D2)
D2
ELECTRONIC INDUCTANCE
WELDING VOLTAGE
-
WELDING VOLTAGE ( ): the measured value of the voltage
of what is being welded.
- ELECTRONIC INDUCTANCE (
): the value previously set.
During the welding the operator can change the following param-
eters:
• WIRE SPEED (
).
• WELDING VOLTAGE (
).
• ELECTRONIC INDUCTANCE (
).
• SPECIAL FUNCTIONS “Fx”.
6 - HOLD
This function automatically starts itself at the conclusion of every
welding operation and it is indicated to the operator by means of a
flashing light of the HOLD FUNCTION LED for a specific amount
of time.
Once the welding has been terminated, for about 15 seconds, both
the DISPLAYS should show the same values of the parameters
during the welding.
In this phase the displays show:
• PARAMETER DISPLAY screen - A (D1)
D1
WELDING CURRENT
WIRE SPEED
- WELDING CURRENT ( ): the last current value measured.
- WIRE SPEED (
): the value previously set.
• PARAMETER DISPLAY screen - V (D2)
D2
ELECTRONIC INDUCTANCE
WELDING VOLTAGE
- WELDING VOLTAGE ( ): the last voltage value measured.
- ELECTRONIC INDUCTANCE (
): the value previously set.
To interrupt the HOLD function and go back to the PRESETTING
phase before 15 seconds have passed, simply turn one of the two
ENCODER knobs (E1-E2).
E2E1
The HOLD function can be terminated ahead of time even while
once again starting the welding.
Once 15 seconds have passed (HOLD FUNCTION) the control
panel goes back to the PRESETTING phase.
