Cectec KINGCOBRA - Step Motor; Throttle Body

Step Motor
Pin 33
Pin 24
Pin 34
Pin 25

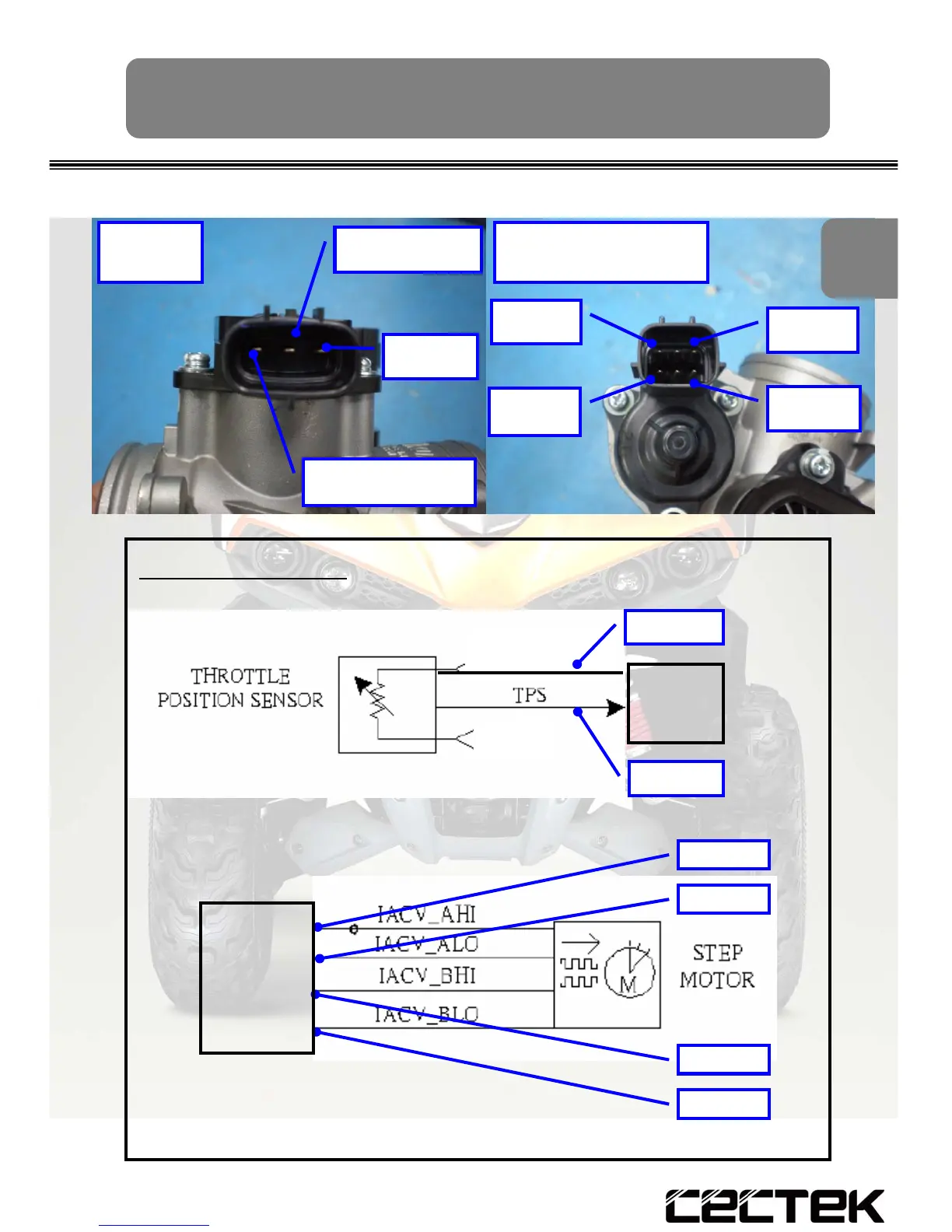

Throttle Body –TPS 、Step Motor
Ⅰ
TPS
ECU Pin6 : 5V
GND
ECU Pin 21
ECU
5V
GND
Pin 24
Pin 25
Pin 34
Pin 33
Pin 21
Pin 6
Part Introduction
TPS Circuit Diagram：
Step Motor Circuit Diagram：
Measurement TPS Resistance：
1~2Ω ( ECU Pin21 + GND )
ECU
Ⅰ-15
