ENGINE - Assembly
Ⅱ
Ⅱ-25
CAUTION：
Only trained and certificated technician can
disassembly the CECTEK 500 EFI ENGINE.
Improper disassembly may damage the engine.
CECTEK can not provide the warranty to the engine
which has not been properly disassembled and
assembled by trained and certificated technician.

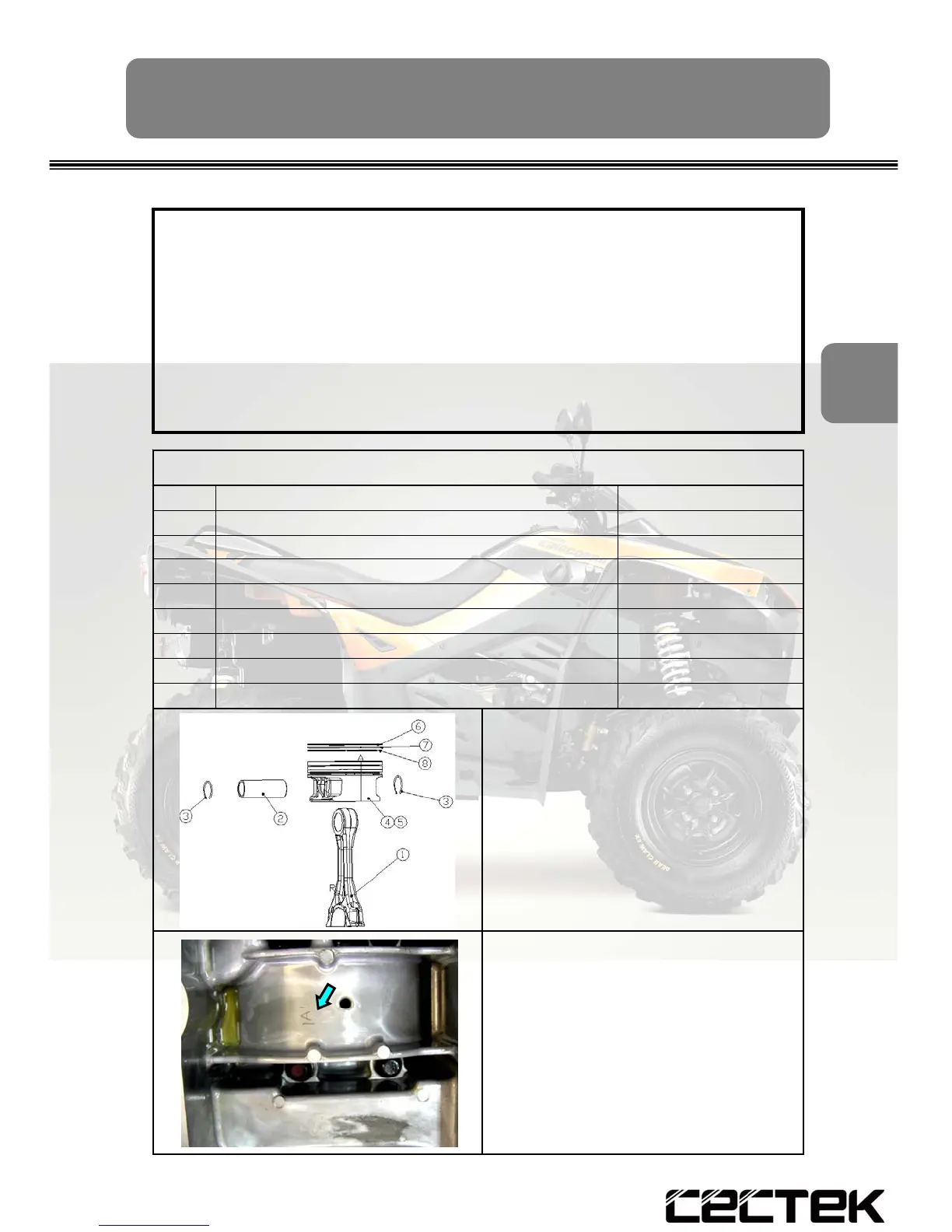

THE PISTON AND CONNECTION ROD ASSEMBLY
NO. PART NAME PART NO.
1. CONROD ASSY. 40098013
2. PISTON PIN 40090024
3. CLIP 40090027
4. PISTON-A 40096011
5. PISTON-B 40096012
6. PISTON RING TOP 40096013
7. PISTON RING SECOND 40096014
8. PISTON RING OIL CONTROL 40096015
4.Make sure the liner size
mark on the cylinder
block
1.Before assembly , must
confirm if the piston (4,5) is
matching the category of liner
2.A category piston only can
be installed on A category liner
3.B category piston only can be
installed on B category liner
To Next Page
