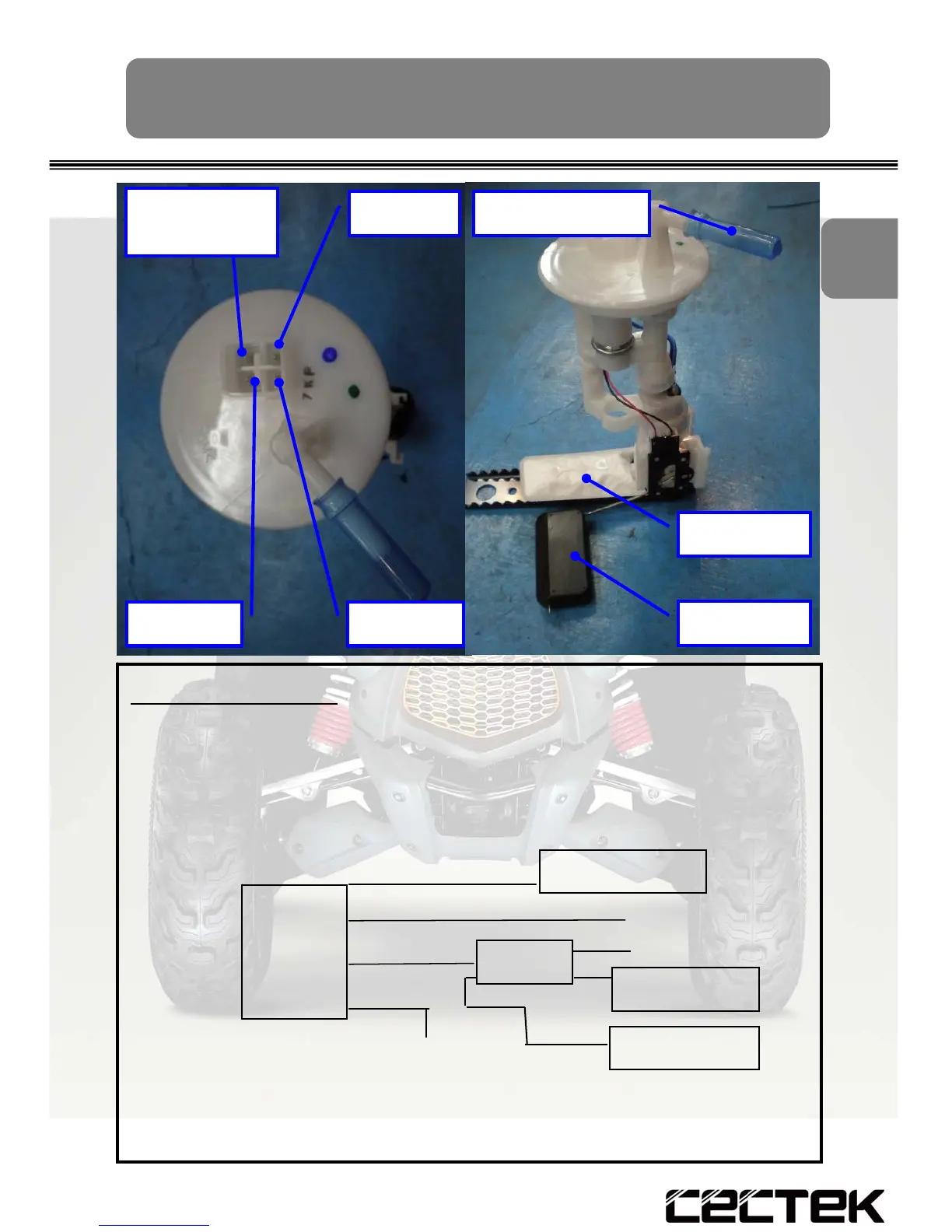

Cectec KINGCOBRA - Fuel Pump

Part Introduction
Pump Characteristic Voltage：12V
Feed Fuel Pressure：250 ± 10Kpa
Feed Fuel Rate：30.6 L/hr (min)
Circuit Diagram：
Measurement Resistance： 4~ 10Ω ( Full Stop )
93~100Ω ( Empty Stop )
Fuel Pump
Ⅰ
Fuel Level
Fuel Filter
Fuel Connector
Sensor -
Pump +
Pump -
Fuel
Pump
ECU Pin1
12V
GND
meter
Relay
GND
END S/W
Pump +
Pump -
Sensor +
Sensor -
Sensor +
Meter Pin24
Ⅰ-17
