Ⅱ
Ⅱ-32

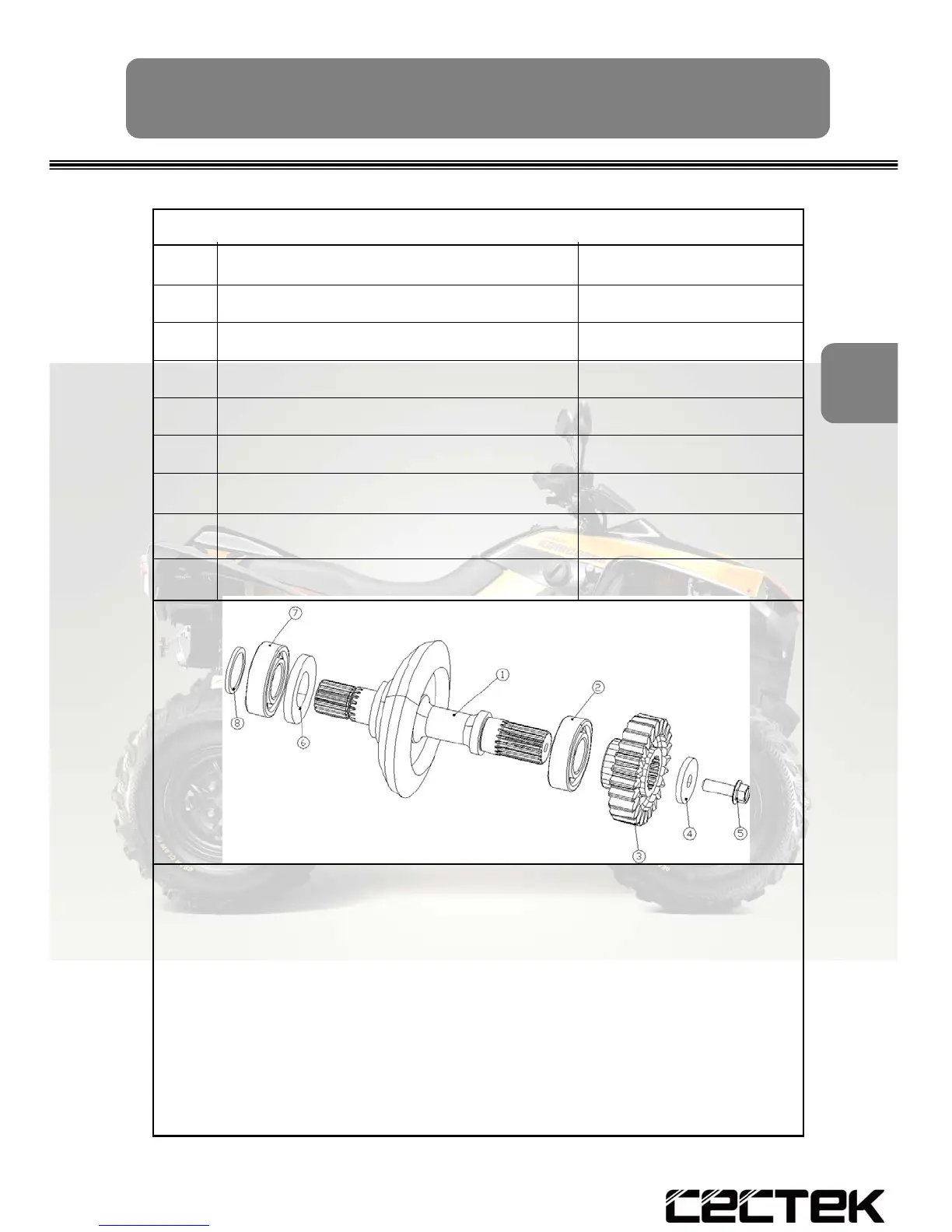

THE REAR DRIVESHAFT ASSEMBLY
Before install gear and bearing , please lubricate with 10W/40 oil
1.Press the bearing (2) into the shaft (1) thoroughly.
2.Install the gear (3) into shaft (1)
3.Tighten the bolt(5) with washer (4) on the shaft (1) , the tighten
torque 20Nm
4.Install the washer (6) which thickness shall be measured in
advance into shaft (1) , then press the bearing (7) into shaft
(1) , finally install the O ring (8)
N0. PART NAME PART NO.
1.
DRIVE SHAFT ASSY. 46058001
2.
BEARING DGB6205
3.
GEAR 46050023
4.
WASHER 46050007
5.
BOLT BFH080251094
6.
WASHER 46050009-19
7.
BEARING DGB6305
8.
O-RING 46050025
ENGINE - Assembly
