Cectec KINGCOBRA - Engine Lubrication System

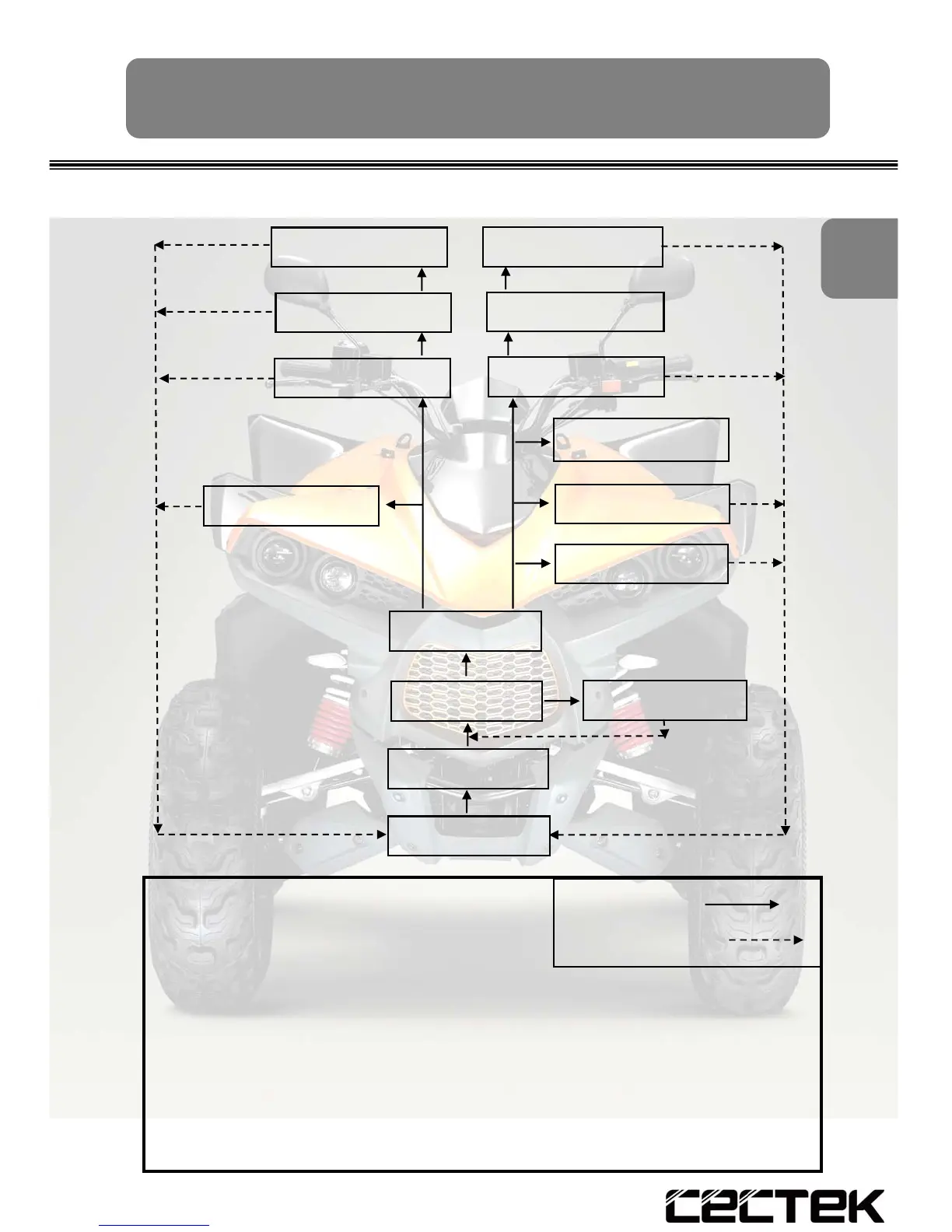

Engine Lubrication System
Ⅰ
Oil Sump
Oil Peak-up
Oil Pump
Oil Filter
Gear Box
Pressure S/W
Balancer
Balancer
Crankshaft
Con-Rod
Cylinder
Piston、Liner
Crankshaft
Camshaft
Release Valve
Left Side Right Side
Lubrication：Wet Sump
Oil Pump：Rotor Type
Oil Filter：Paper Type
Oil Type：10w / 40
Oil Volume：3.0L / 3.5L (Replace Filter)
Pressure Release：4.5 kg/cm
Pressure S/W：0,2 kg/cm
Oil Inlet：
Oil Return：
