Ⅱ
Ⅱ-29

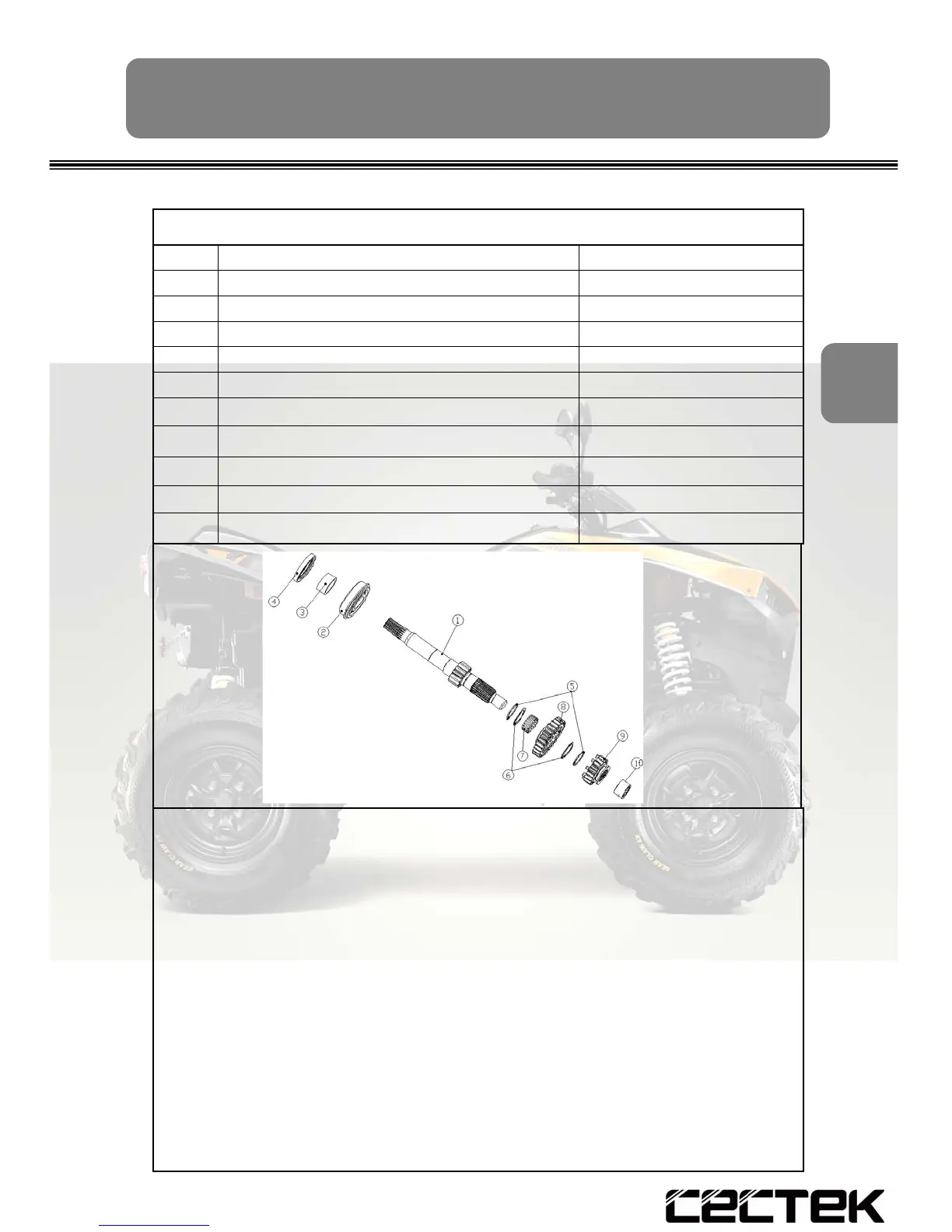

THE MAIN SHAFT ASSEMBLY
N0. PART NAME PART NO.
1. MAIN SHFAT 46030001
2. BEARING 46030034
3. SPACER 46010003
4. LIP SEAL 40016004
5. RETAIN C-RING RCS025
6. WASHER 46030010
7. NEEDLE BEARING (CAGE TYPE) 46030030
8. HIGH SPEED DRIVE GEAR (27T) 46030003
9. LOW SPEED DRIVE GEAR (18T) 46030004
10. NEEDLE BEARING (OPEN TYPE) 46030028
Before install gear and bearing , please lubricate with 10W/40 oil
1.Install bearing (2) into main shaft (1) , the bearing of ring side
shall be install to main shaft of gear side
2.Install spacer (3) into main shaft , then install seal (4) into
spacer (3)
3.Install a C-ring (5) into main
shaft of groove , then put a
washer (6) into main shaft
4.Install needle bearing (7) and high gear (8) into main shaft ,
shall be install high gear of raised side into main shaft of gear
side
5.Install a washer (6) into main shaft then install C-ring (5) into
main
shaft of outside groove
6.Install low gear (9) into main shaft then install needle bearing
(10) into main shaft , low gear of forl groove shall be in the
outside
ENGINE - Assembly
To Next Page
