Ⅱ
Ⅱ-28

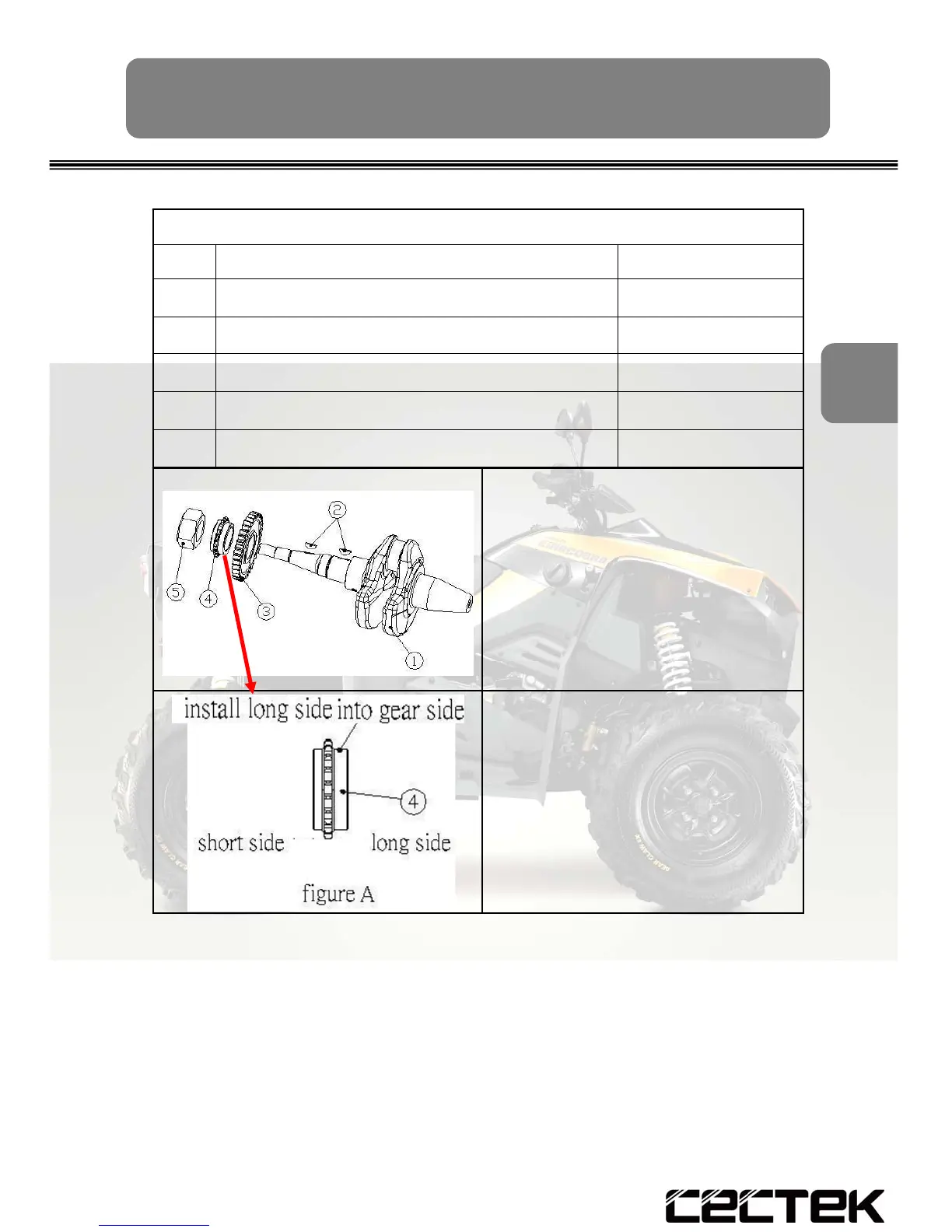

THE BALANCER ASSEMBLY
1.Install key (2) into crankshaft
(1), keep the key parallel
with crankshaft-taper
2.Install gear (3) into
crankshaft (1) , gear groove
must
be alignment key of
crankshaft
3.Install cam chain sprocket (4)
into crankshaft (1) , shall be
install long side into gear side
of crankshaft , reference to
figure A
4.Screw nut (5)
to crankshaft
(1) , tighten torque 250Nm
NO. PART NAME PART NO.
1. CRANKSHAFT 40110023
2. KEY 40110108
3. GEAR (36T
) 40120018
4. CAM CHAIN SPROCKET 41010004
5. NUT (M30) 40110024
ENGINE - Assembly
