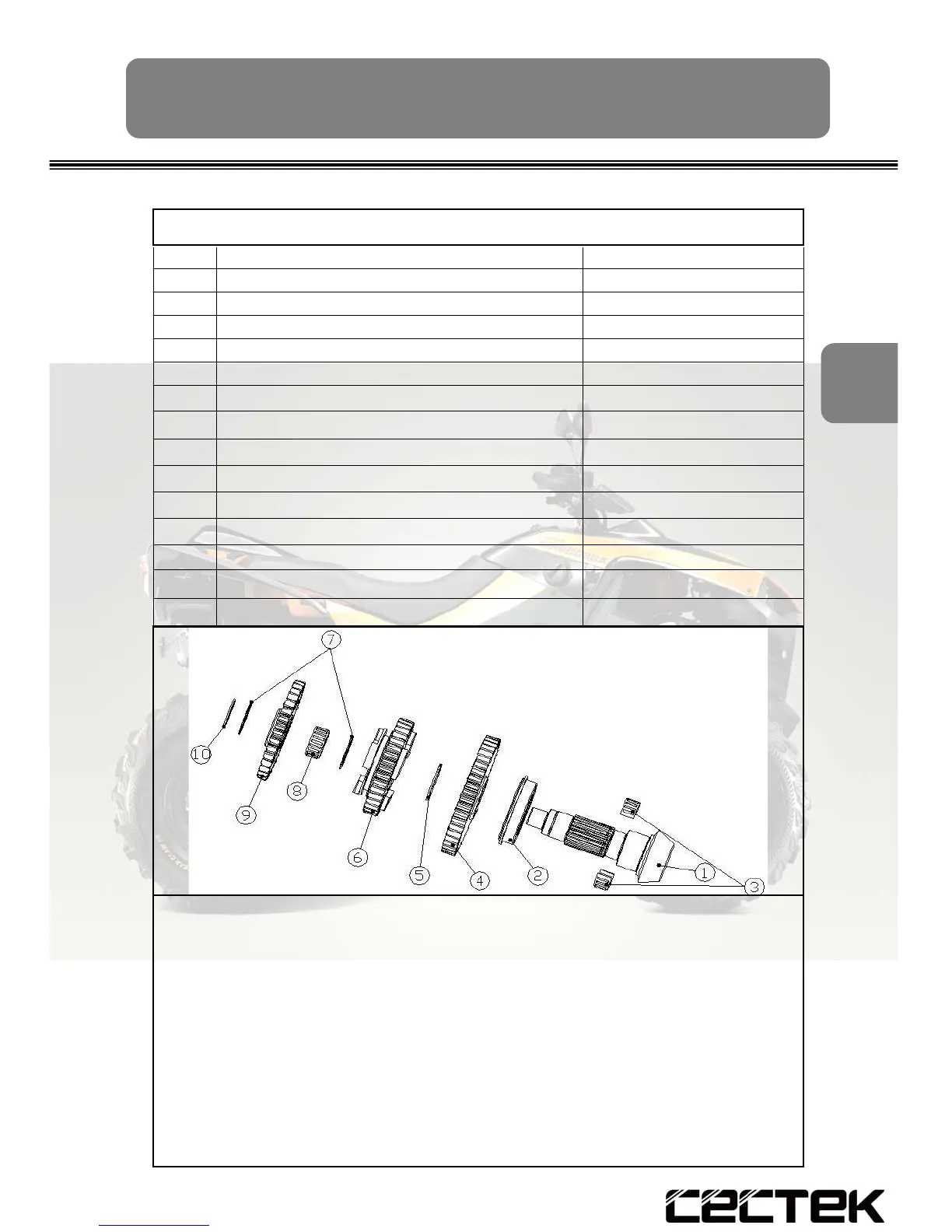

THE LAY SHAFT ASSEMBLY
N0. PART NAME PART NO.
1. LAY SHFAT 46030002
2. CYLINDRICAL ROLLER BEARING CRBNU1007NR
3.
NEEDLE BEARING (HALF CAGE TYPE) 46030031
4.
LOW SPEED DRIVEN GEAR (45T) 46030007
5. RETAIN C-RING RCS030
6.
HIGH SPEED DRIVEN GEAR (36T) 46030005
7. WASHER 46030010
8.
HNEEDLE BEARING (CAGE TYPE) 46030030
9. REVERSE DRIVEN G
EAR (34T) 46030008
10.
RETA
IN C-RING
RCS025
11.
ADJUSTING WASHER 46030016-26
12. BEARING (DOUBLE ROW ANGULAR) 46030029
13. WASHER 46030012
14. WASHER SCF060200
883
Before install gear and bearing , please lubricate with 10W/40
oil
1.Install bearing (2) into lay shaft
(1) , be shall install bearing of
long side into bevel gear side
2.Install needle bearing (3) into la
y shaft , then install low gear
(4) into lay shaft , be shall install low
gear (4) of plane into
bevel gear side
3.Install retain C-ring (5)
into lay shaft of groove
4.Install high gear (6) into lay shaft , be shall install high gear (6)
of fork groove side into
another bevel gear side
